Tarot Parabolic Airdropper 20KG TL2962 Electronic Dropper (Global Warehouse)

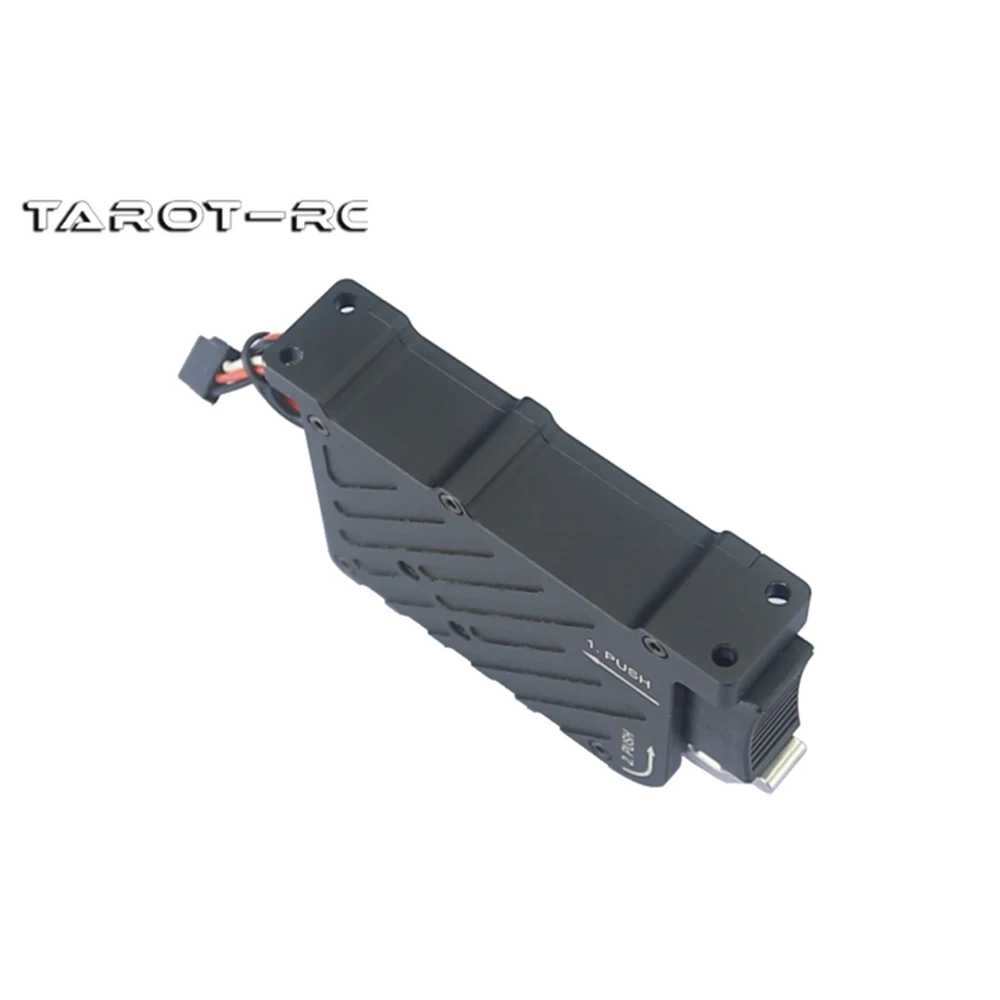

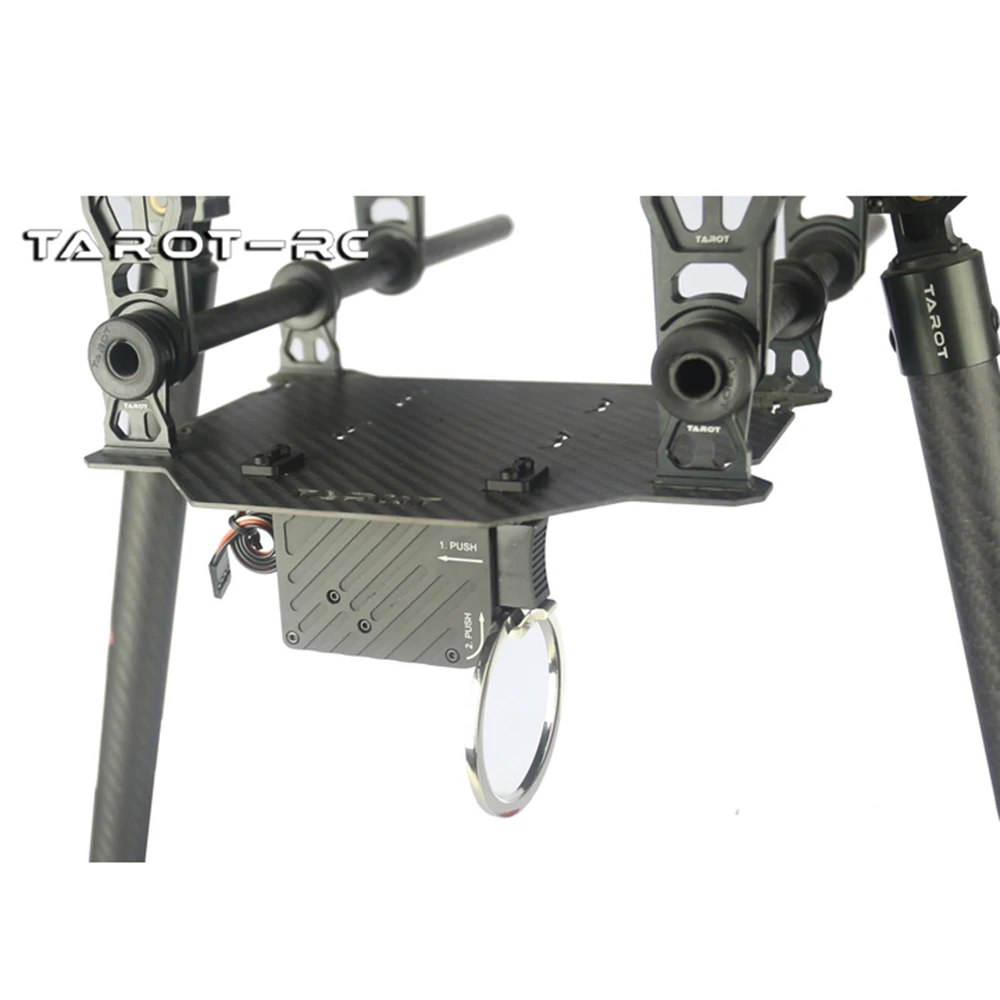

The drone electronic thrower from Tarot is made of 6063 aviation aluminum and 304 stainless steel through CNC machining and assembly. The structure adopts the design principle of mechanical lever, which can reduce the output power required by the driving mechanism and make the throwing device volume. It is compact and the hinged structure of the lever will not be stuck due to the heavy weight of the load (the limit measured load is 43KG and the load can be smoothly retracted). You can mount multiple electronic throwers of this series according to the usage scene environment, and can independently control the order of the throwing devices.

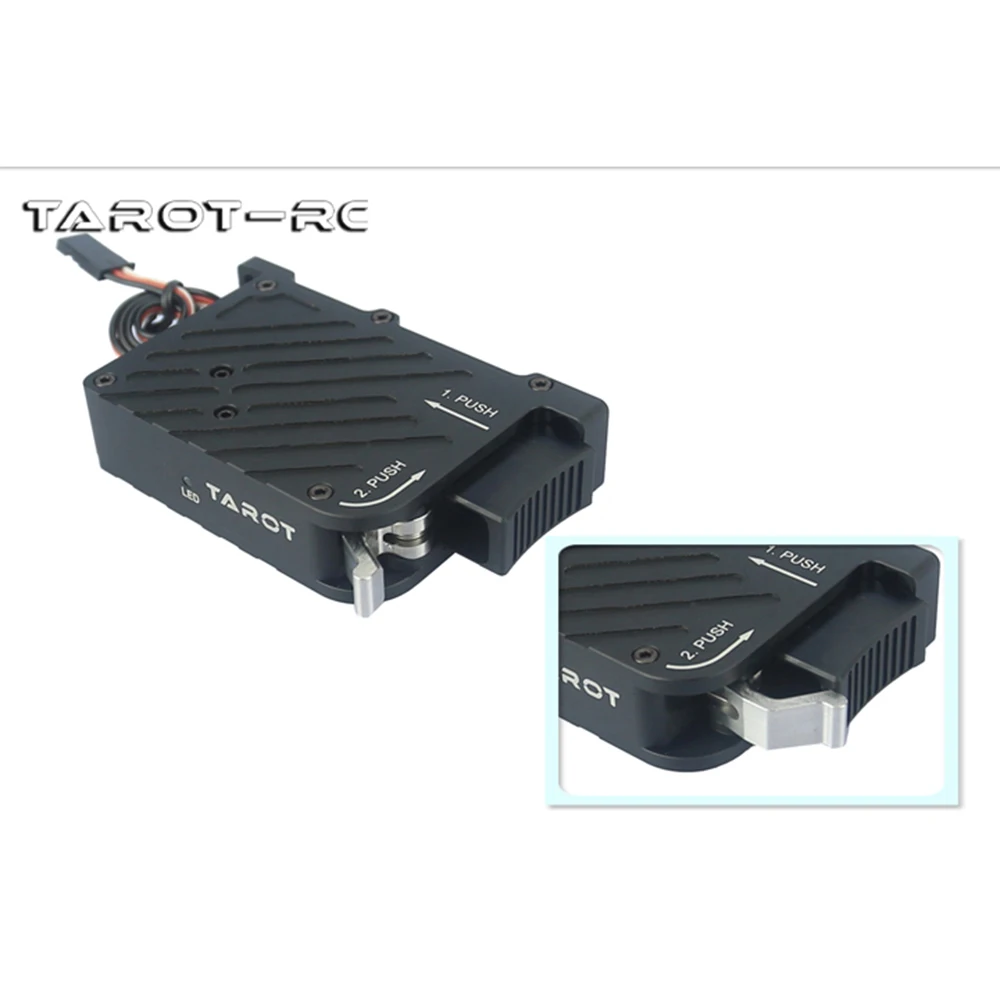

Product operating instructions and LED status light description:
Note: This product adopts standard PWM remote control servo signal analysis (the following description assumes the 0-100% stroke amount based on the analysis result)
1: When the PWM signal input value remains at 0-59% of the stroke, the LED red light is always on/the device does not operate;
2: When the PWM signal input value reaches 60-100% of the stroke, the LED green light flashes once/the device delivery switch is turned on once; after the delivery is over, the LED light keeps the green light steady on;
3: When the device does not detect the PWM signal input, the LED red light flashes (2 times/second);
4: During power-on initialization, if the detected PWM signal input value is at 60-100% of the stroke, the LED green light flashes (2 times/second), until the PWM signal input value is adjusted to 0-59% of the stroke to trigger the first item operation.
Product Specifications:

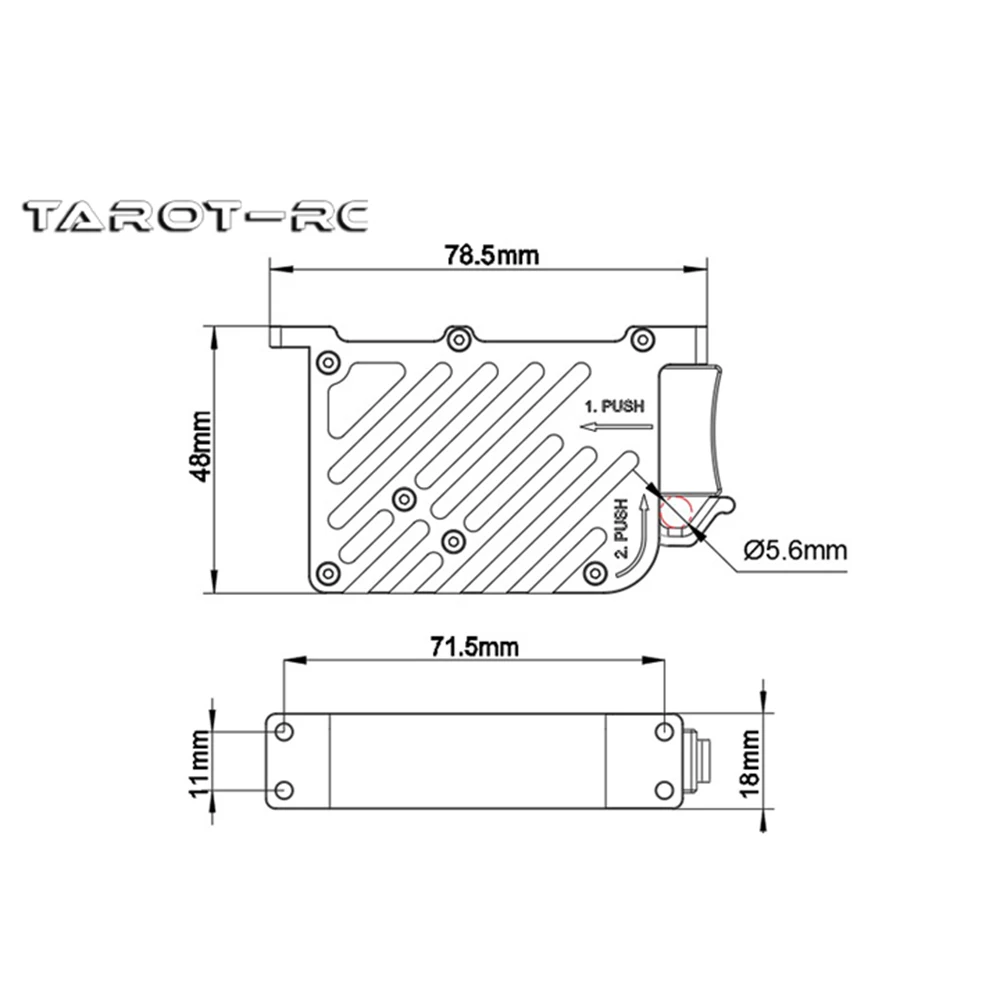

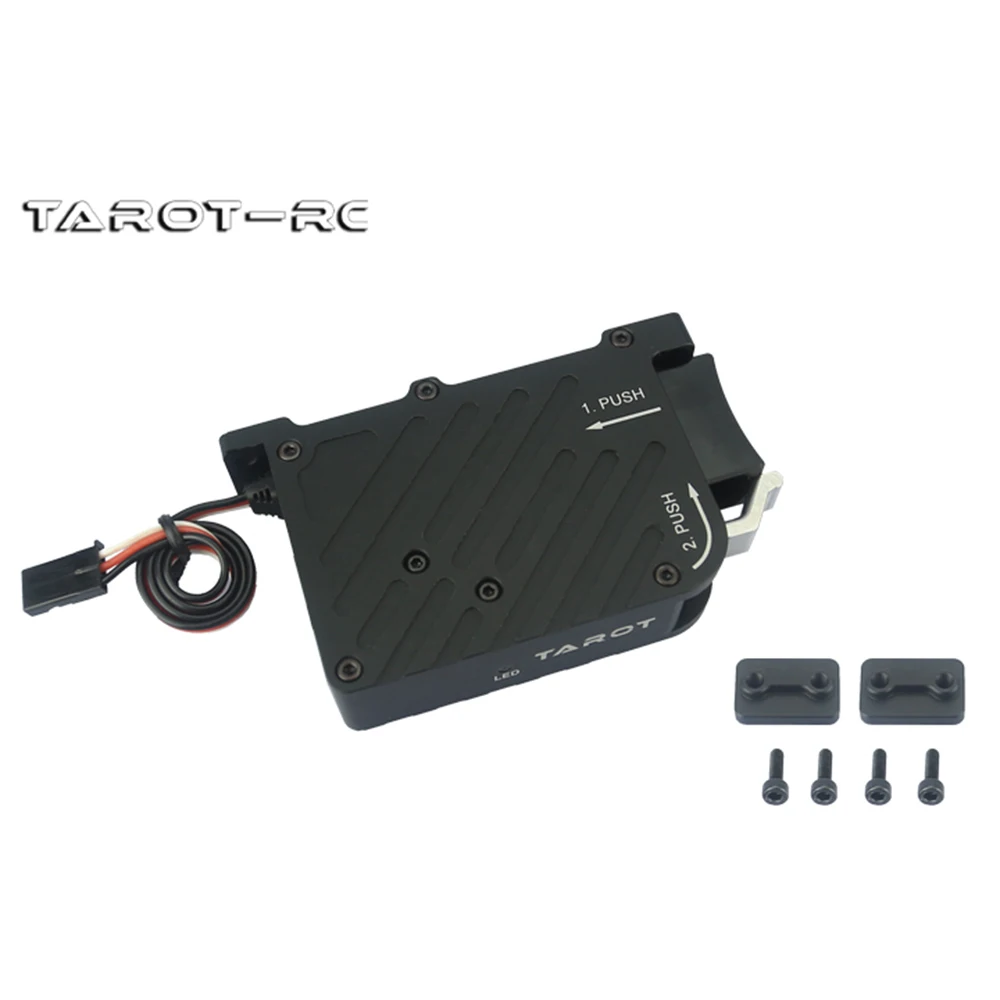

Tarot Electronic Dispenser(91.5g)(78.5mm*48mm*18mm) ×1
