Product parameters:
Working voltage: DC12-60V

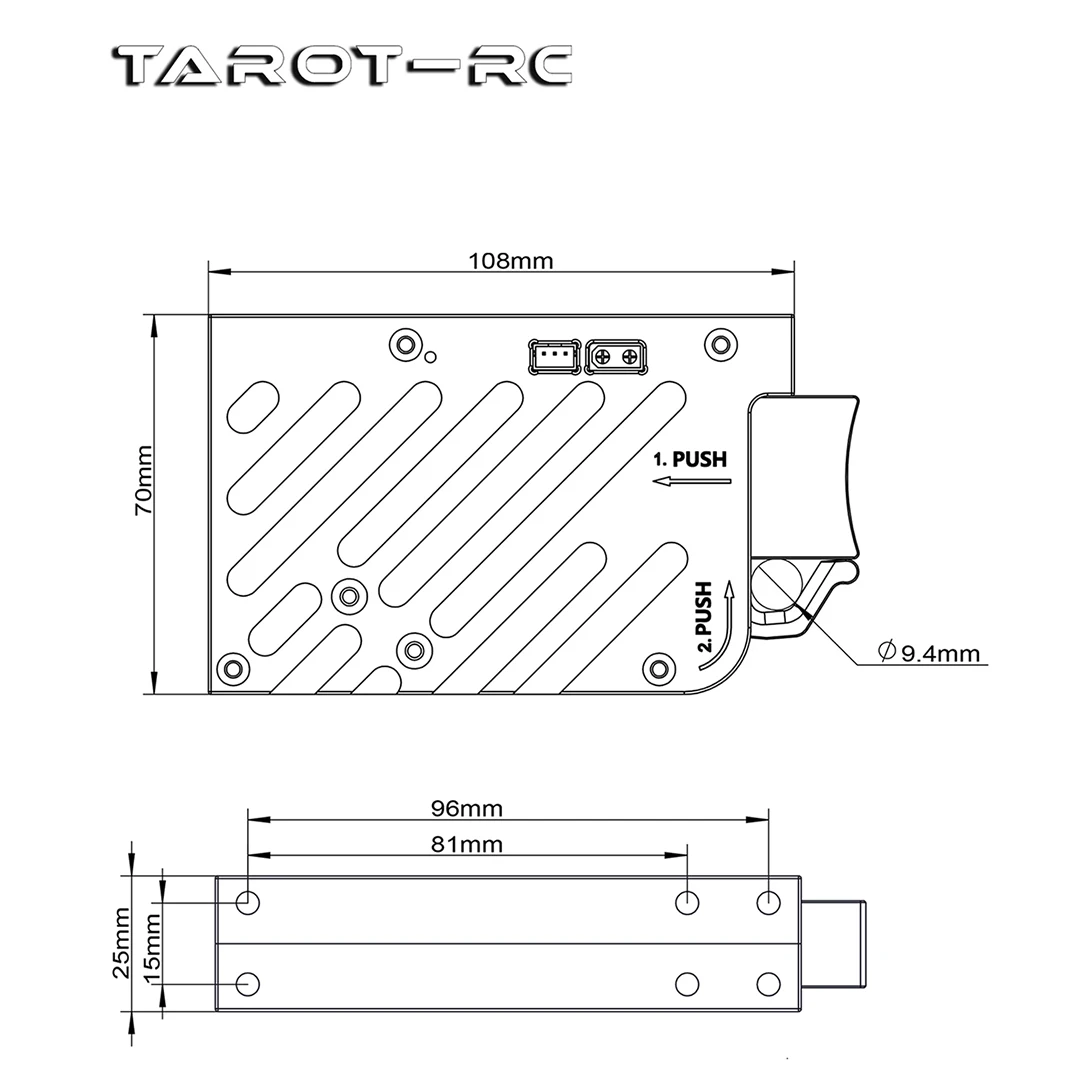

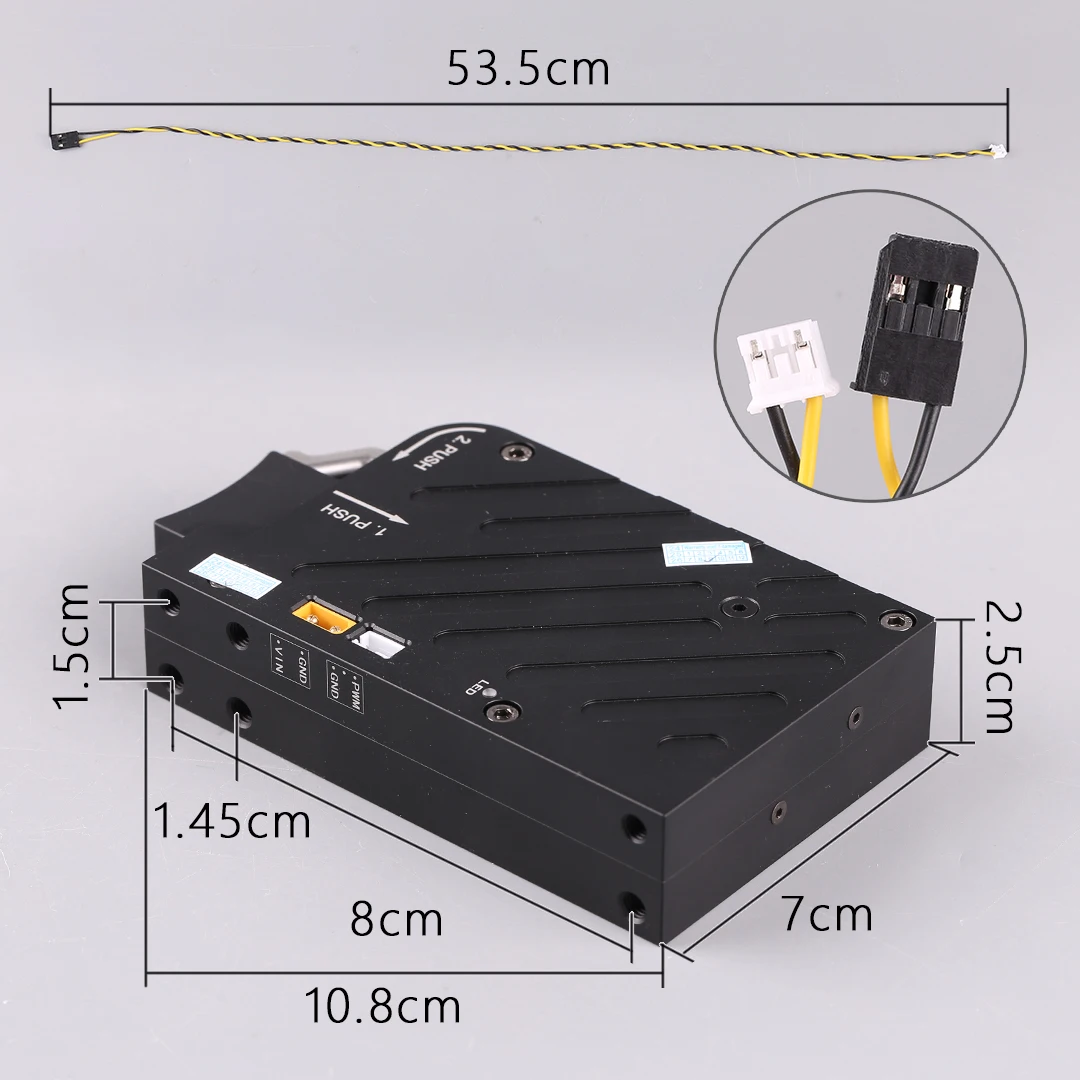

Product size: 108mm * 70mm * 25mm

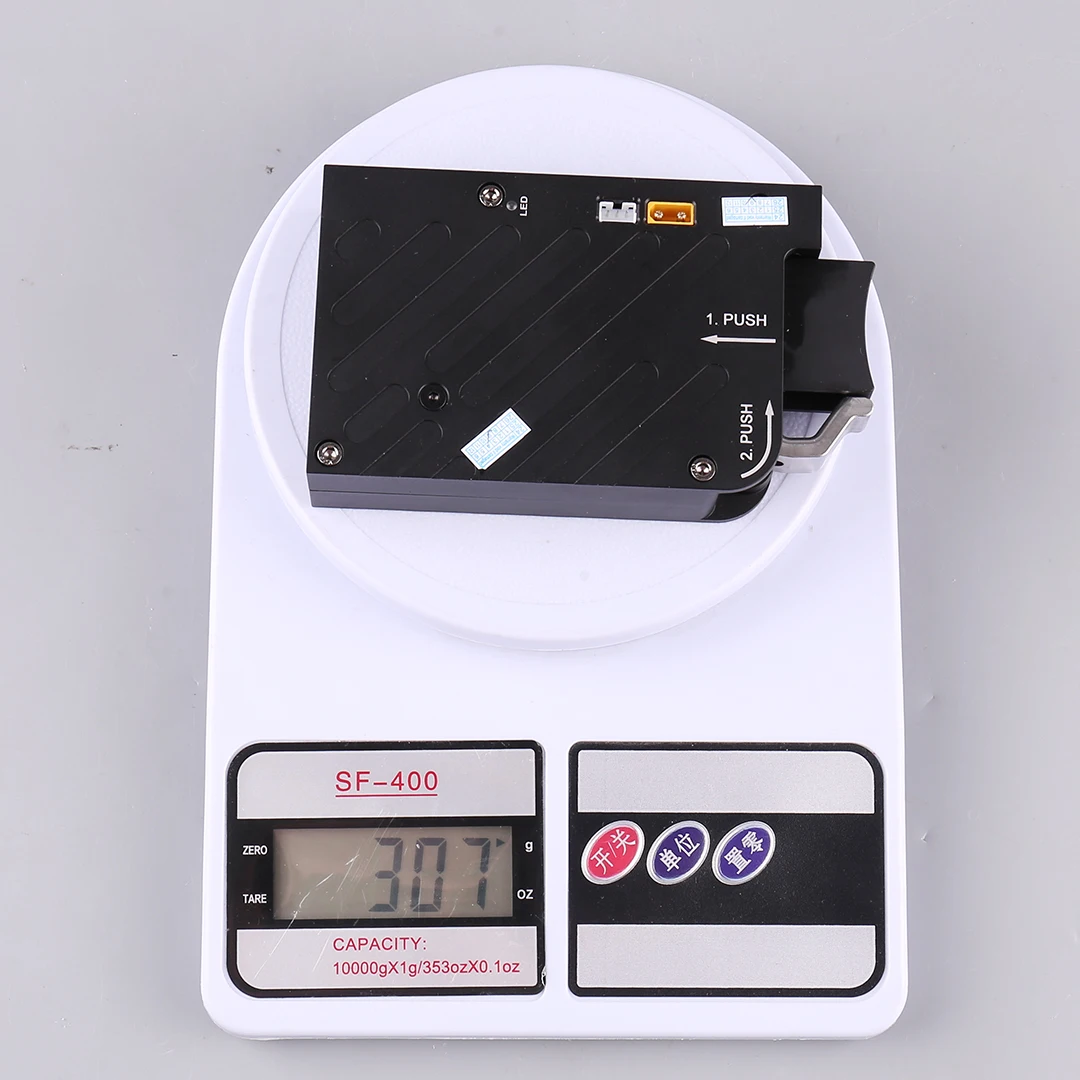

Weight: 308g

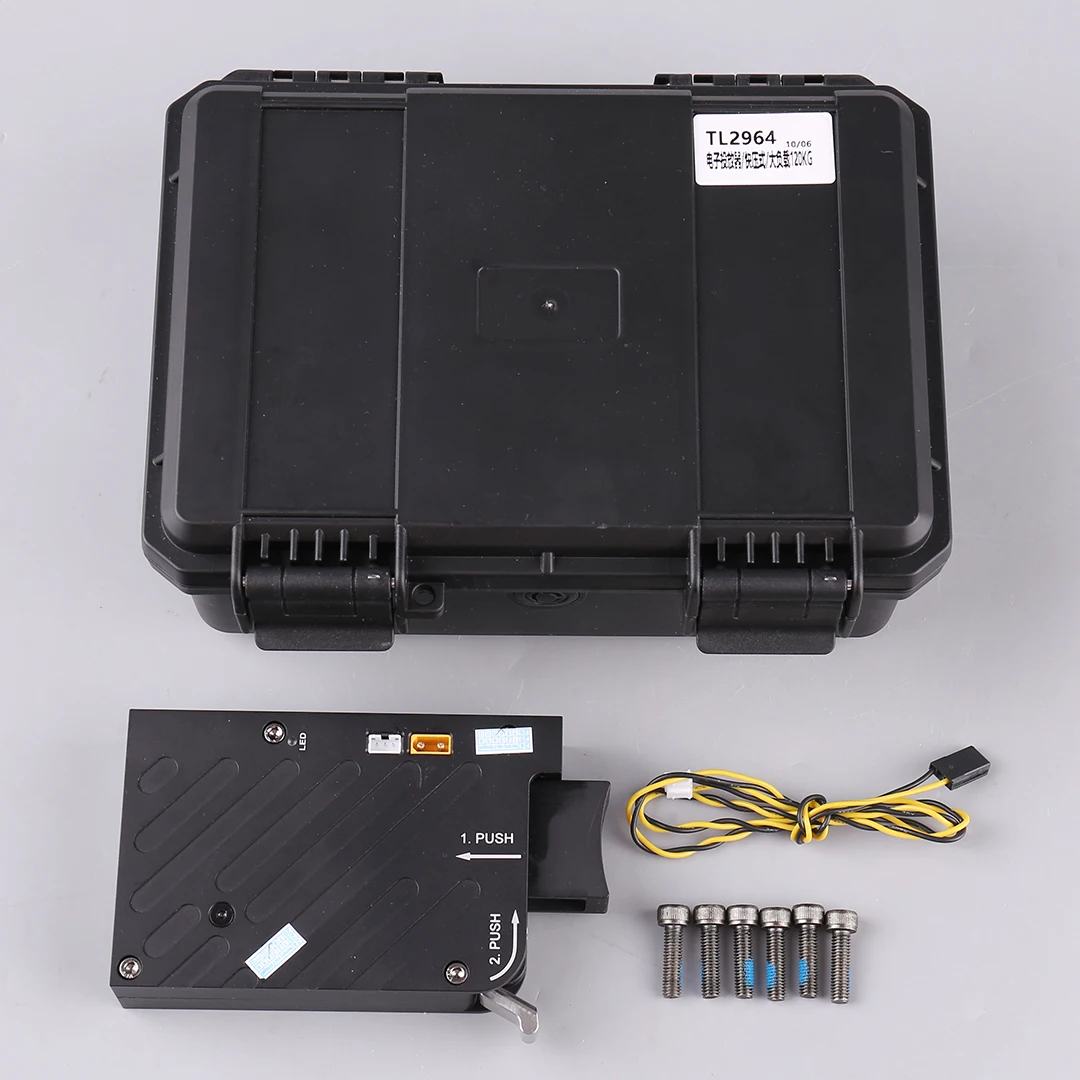

Packing list:

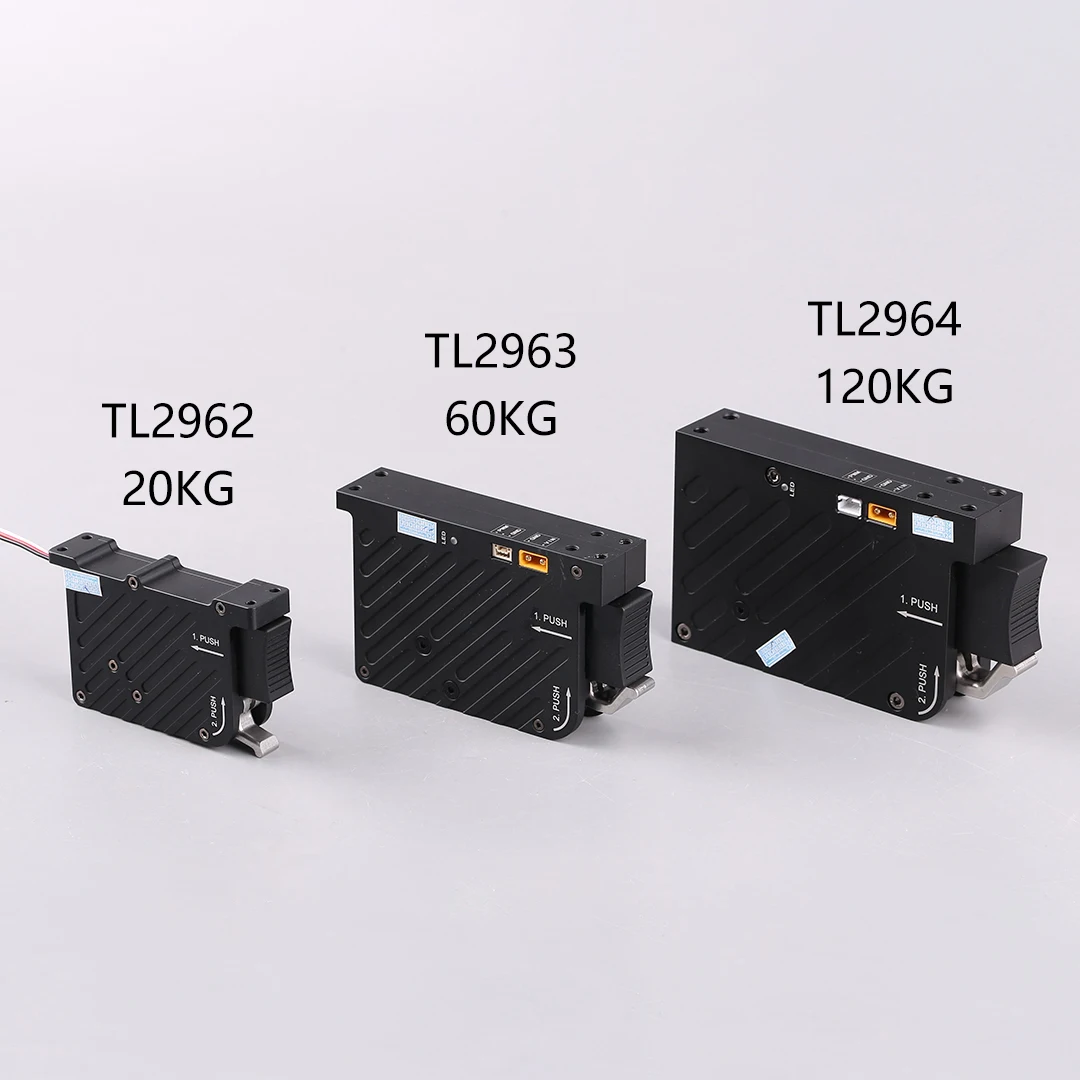

120KG electronic dispenser x1
2.0-3P to DuPont connector wire x1
Cup head screw (M5 * 18mm) x6
Product Description:

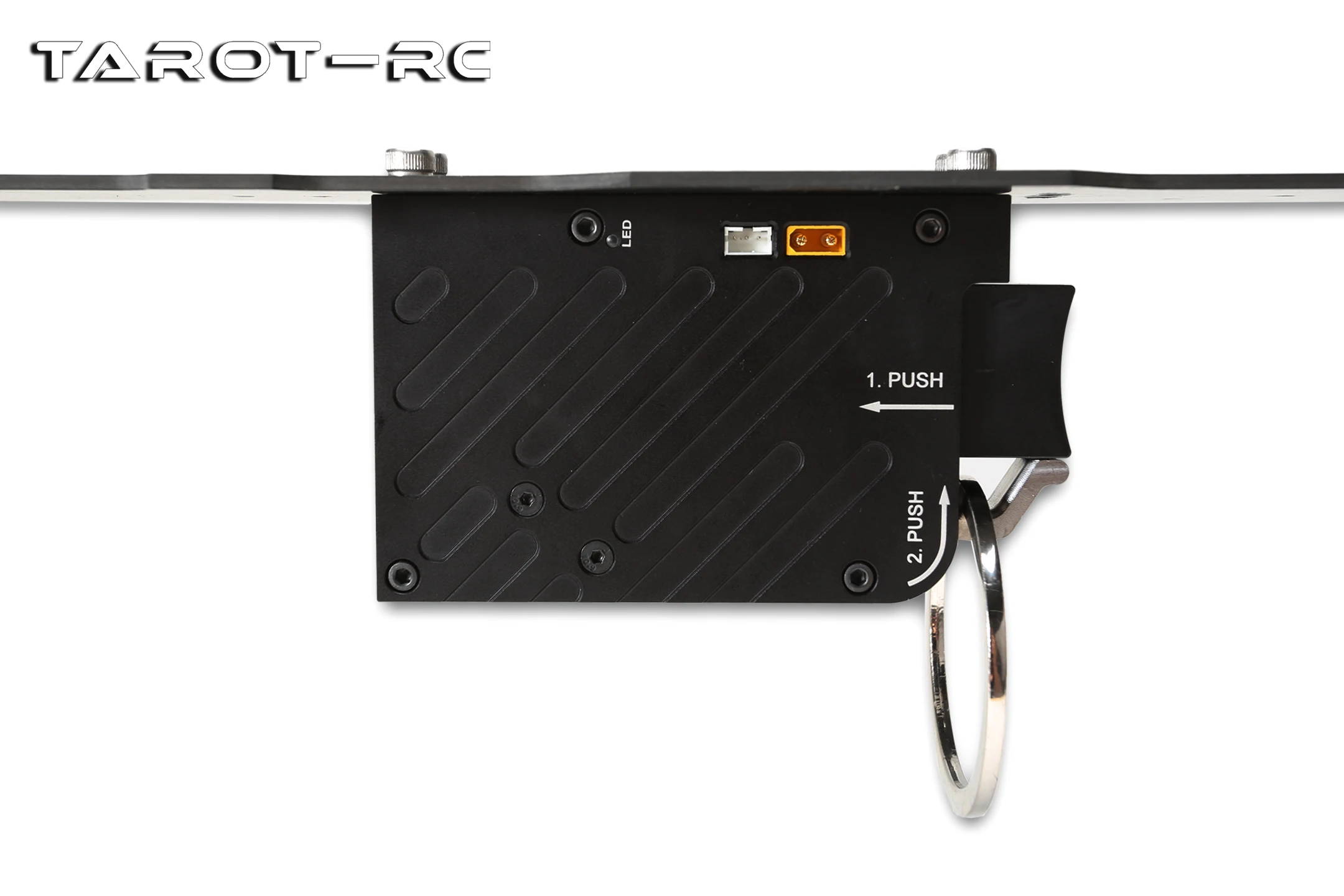

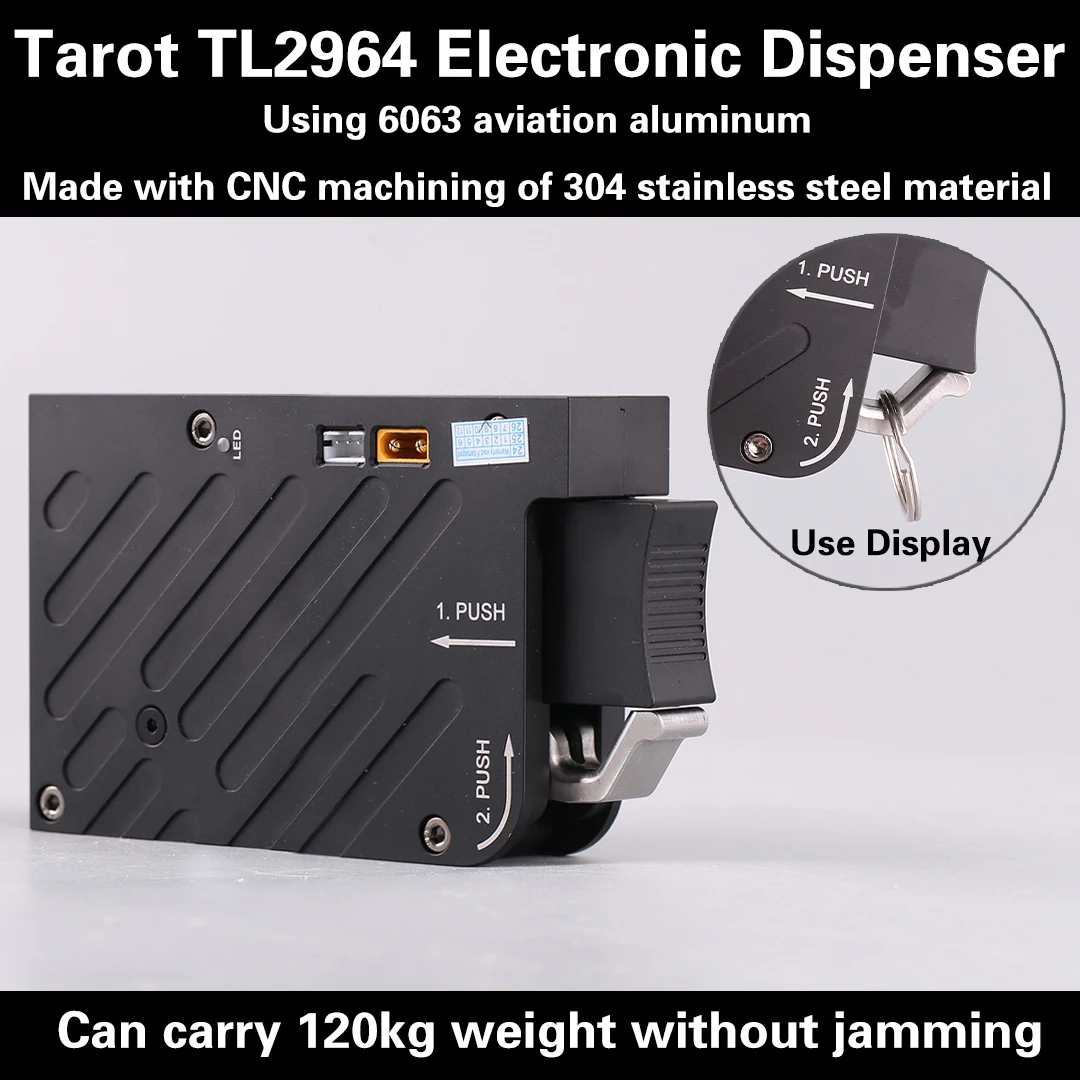

Tarot's unmanned aerial vehicle electronic thrower is made of 6063 aviation aluminum and 304 stainless steel assembled through CNC machining. The structure adopts the design principle of mechanical lever, which can reduce the output power required by the driving mechanism, making the throwing device compact in size and the hinge structure of the lever piece will not get stuck due to the weight of the mounted object (the maximum tested load is 130KG, which can be smoothly retracted and released). You can mount multiple electronic throwers of this series according to the usage environment, and independently control the order in which each thrower is deployed.

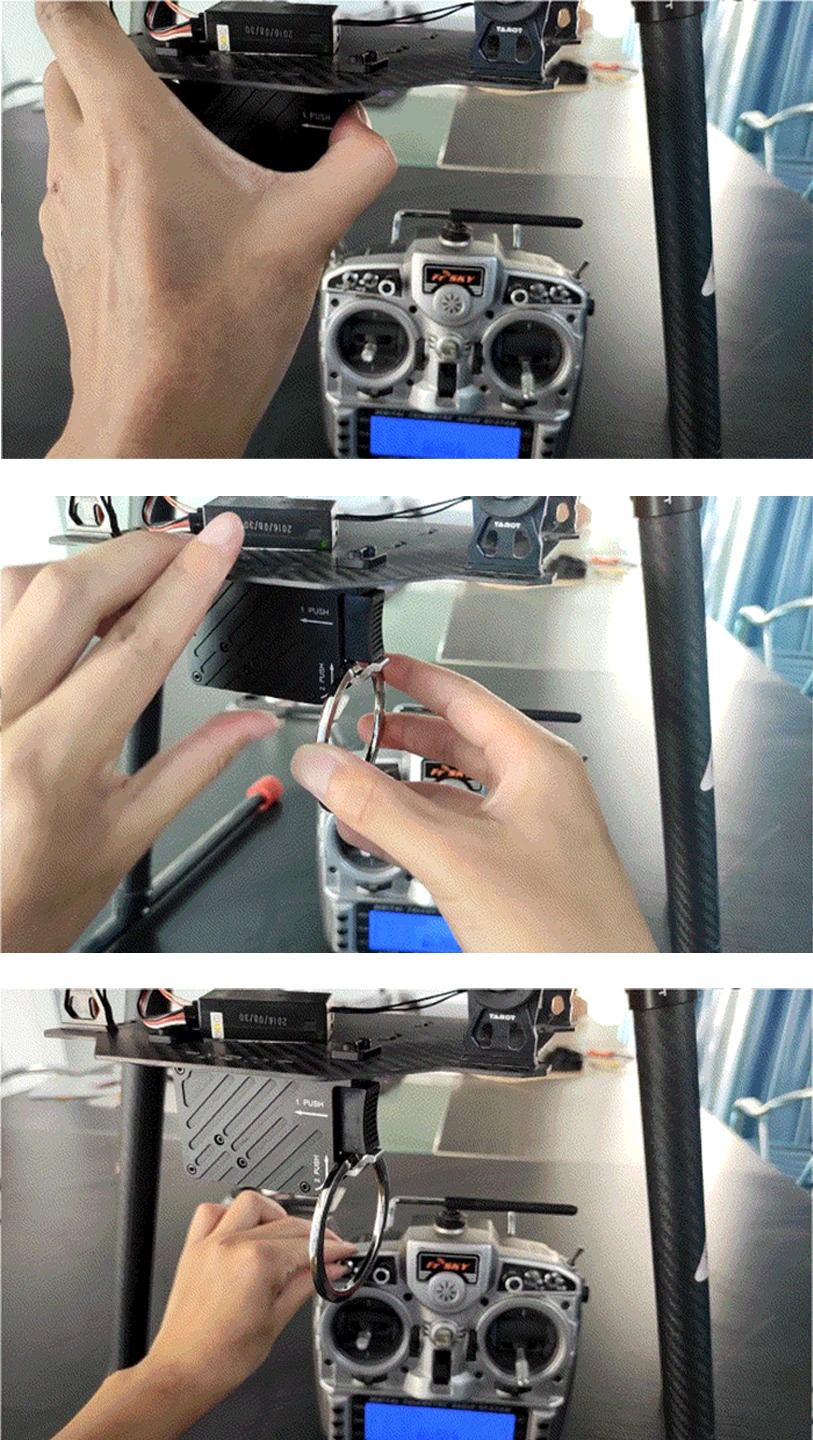

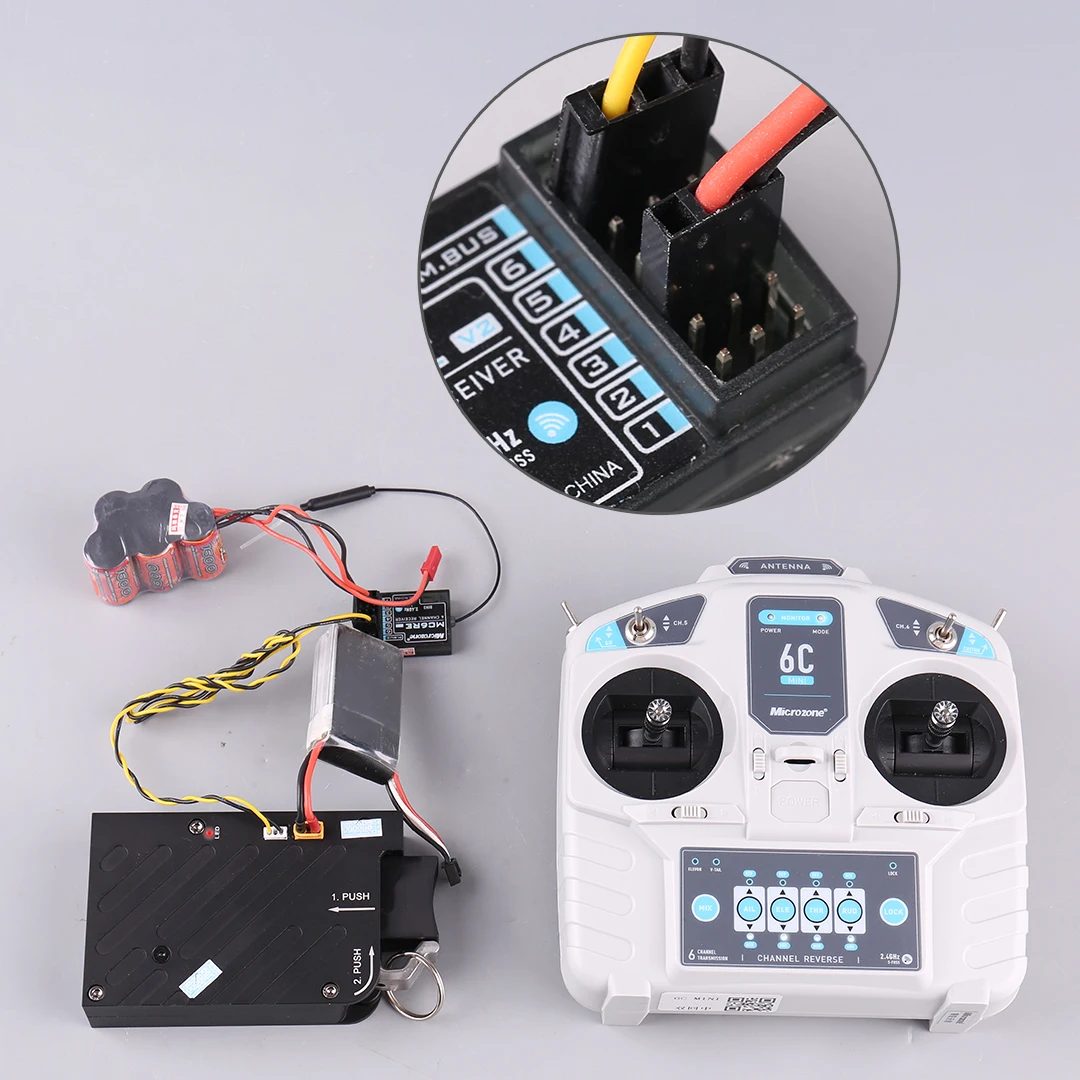

Product operation instructions and LED status light description
Note: This product uses standard PWM remote control servo signal analysis (the following description is false based on the analyzed results)
Set the travel volume to 0-100%
-
1: When the input value of the PWM signal remains between 0-59% of the stroke, the device does not operate and the LED red light remains on;
-
2: When the input value of the PWM signal reaches 60-100% of the stroke, the device deployment switch is triggered, and the LED green light flashes once. After the deployment is completed, the LED light remains on continuously for two consecutive deployment operations
-
3: When the device does not detect PWM signal input, the LED red light flashes (2 times/second);
-
4: During power on initialization, if the detected PWM signal input value is between 60-100% stroke, the LED green light will flash (2 times/second) until the PWM signal input value is adjusted to 0-59% stroke, triggering the first operation.
Attention: Hot plugging and unplugging of the product is strictly prohibited (the device must be connected before powering on)
