Topotek KHY10L12 10x Optical Zoom 1.2KM laser ranging 1080P Dual Light Drone Gimbal (Global Warehouse)

  • Status : In StockSKU:26932
  • Was:0

    • Now:
    0


      Qty.Range(unit) Price(per unit) Discount
      1 0 No
    Wholesale inquiry
    Quote the freight after you click "Add to Cart"
    • 0
    • QTY :


      Customers Who Bought This Item Also Bought
      Product Tags

      • Product Details
      • Manual
      • Video
      • Spare Parts

      TOPOTEK KHY10L12 Features

      • 10x visible light
      • 1200 meters laser ranging
      • High-precision. high-collaboration control algorithm
      • Digital zoom
      • Weight 460g
      • Provide ground station software

      TOPOTEK KHY10L12 Specifications

      ParameterDetails
      Voltage and Power Supply DC 12V-26.2V. Dynamic 6W
      Features
      Roll Angle -45° to +45°
      Pitch Angle -30° to +95°
      Yaw Angle -295° to +295°
      Pitch and Roll Jitter Angle ±0.02°
      Horizontal Jitter Angle ±0.03°
      One-Click Return to Center One-click to return to the initial position
      PTZ Speed Adjustable When the gimbal rotates. it performs speed adaptation based on the current speed mode and visible light camera multiple.
      Control Mode Support Network. IP. Network Sbus control (PWM optional)
      Visible Light Camera
      CMOS Size 1/2.8 inch 200MP Effective pixels CMOS SENSOR
      Optical Zoom 10x HD Optical zoom lens. f=5.15±5%~47.38±5%mm
      Focus Time Real-time fast focusing function. focusing time <1s
      Video Output Network HD RTSP output 1080P. Video stream local TF storage
      Field of View (FOV) D: WIDE 69.5°±5% TELE 7.95°±5%
      H: WIDE 61.5°±5% TELE 7.00°±5%
      V: WIDE 35.0°±5% TELE 3.97°±5%
      Support Mode 1080P 30fps
      LRF
      Infrared Wavelength 905nm (class 1 laser)
      Measuring Range 5~1200m
      Accuracy ±1m
      Size 143mm×148mm
      Working Environment -10°C to +45°C / 20% to 80% RH
      Storage Environment -20°C to +60°C / 20% to 95% RH
      Application Drone Aerial Photography
      Weight 460 ± 20g



      TOPOTEK KHY10L12 Dual Light Drone Gimbal. High-tech gimbal with zoom lens. laser rangefinder. and stabilizer for precision aerial photography and surveying.

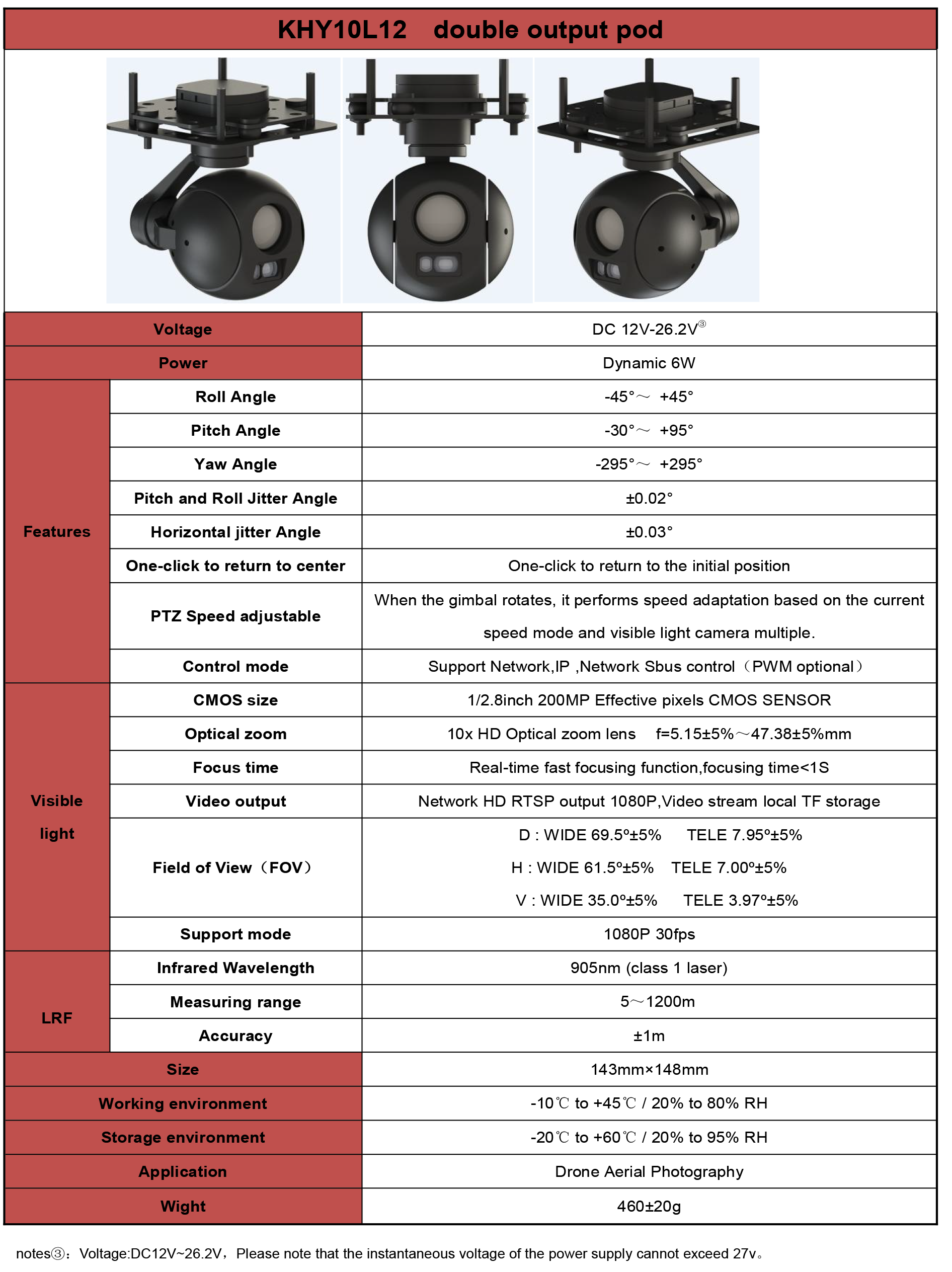

      TOPOTEK KHY10L12 Dual Light Drone Gimbal. Advanced drone gimbal with hybrid zoom. laser finder. and advanced stabilization features.

      Topotek KHY10L12 dual light drone gimbal features a hybrid zoom camera with 90x optical and 1x digital zoom. as well as a 1200m laser ranging finder. It has a 3-axis gimbal pod with dynamic power supply of DC 12V-26.2V. supporting horizontal jitter angle of +0.03 degrees. The gimbal offers one-click return to center and initial position. with adjustable speed mode and visible light camera support. It also features real-time fast focusing function. HD video output via RTSP at 1080P. and local TF storage.

      TOPOTEK KHY10L12 Dual Light Drone Gimbal. Connection diagram for various ports (NC. HC. RX. etc.) on a device.

      Diagram shows connection points for NC. HC. RX. RX+. HDMI. and XT30. with labels for Izat and GHD.
