Flier 22S 500A HV brushless ESC (Global Warehouse)

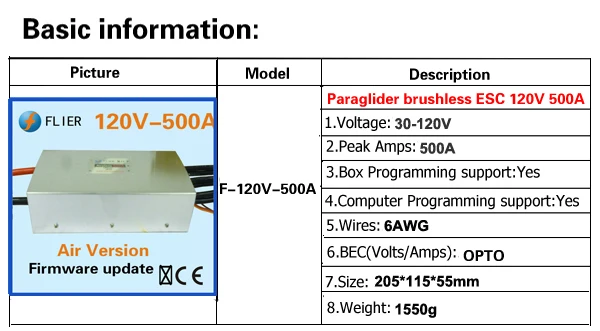

ESC basic Info:

1:There are three pins wires for the receiver port, length is 300mm:
---The brown wire is ground,
---The yellow wire is pulse signal wire, it is a 5V PWM pulse signal and you just controll the ESC via the wire,
---The red wire is the power wire 5V input to the ESC; you must supply a 5V voltage to the red wire otherwise the ESC won't work.

2:A standard receiver signal is 1-2mS@50Hz. It is saild that the receiver will send 1-2mS 5V pulse per 20mS to the ESC. 1mS pulse will arm the ESC,and the motor will stop. when increase the throttle, the pulse width also increase, about 1.1mS, the motor will start to spin, and 2mS, the motor will spin at full speed.

3:Baterry wire: length 180mm, 6AWG. Red wire connect to the positive pole, black connect to the negative pole.

The black side of the small black 18AWG line is Anti-spark wire: It is built in a bullet connector and a 10 ohms resistor. You must connect the end of the wire to the battery negative. you can connect the red wire of ESC to the positive pole of battery at first. Then connect the anti-spark wires well. The last step is to connect the black wire of ESC to the battery’s negative pole. If do so, no spark will be generated, and this will protect the main bullets connector from spark damage.

4.Motor wire; 3 pcs balck wire, 6AWG, 180mm.

5.Program wire: 4 pins, length 100mm. Use USB link to program via PC or program via program box.
