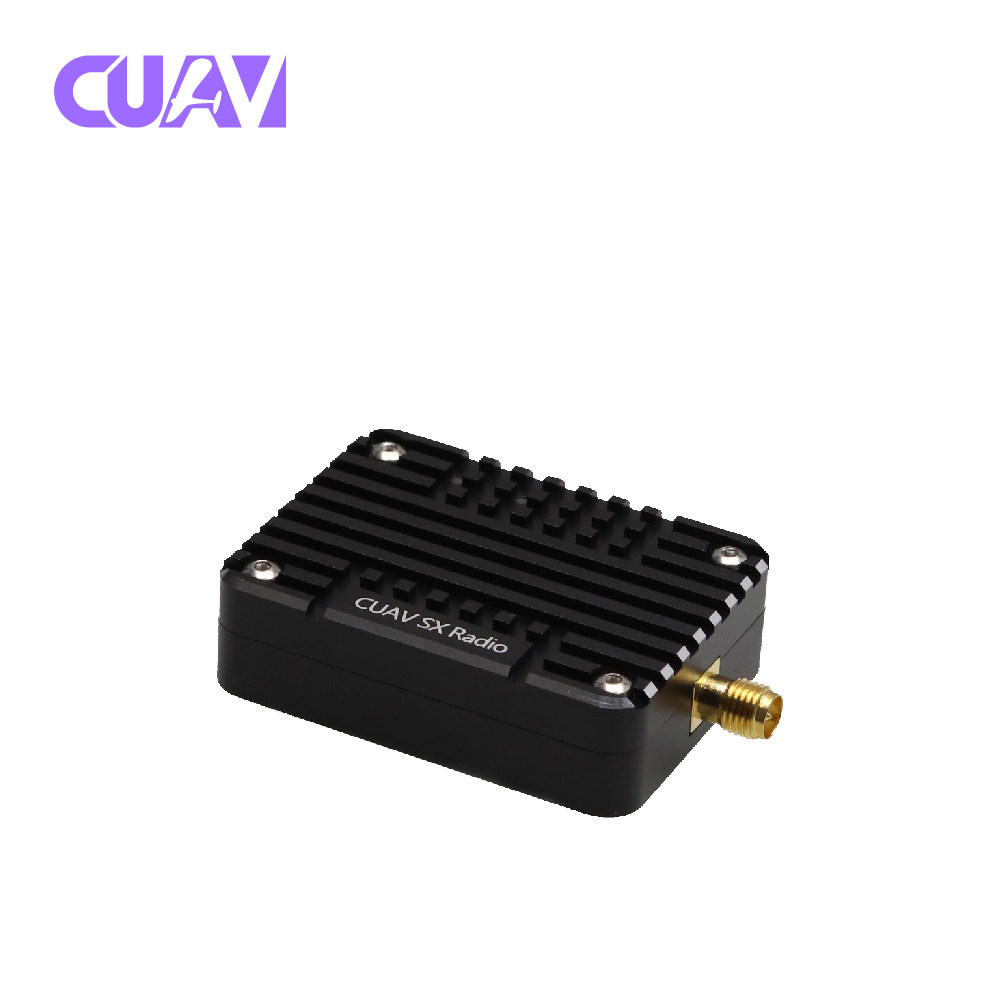

CUAV® SX RF |
| PERFORMANCE |
|
| FREQUENCY RANGE |
ISM 902 to 928 MHz |
| TRANSMIT POWER (SOFTWARE SELECTABLE) |
Up to 30 dBm* |
| CHANNELS |
10 hopping sequences share 50 frequencies |
| |
Low data rate: 10 kb/s; Middle data rate: 110 kb/s; High data rate: 250 kb/s |
| MAXIMUM DATA THROUGHPUT |
High data rate: 120 kb/s
|
| AVAILABLE CHANNEL FREQUENCIES |
Low and middle data rate: 101**; High data rate: 50 |
| |
Low data rate: -113 dBm; Middle data rate: -106 dBm; High data rate: -103 dBm |
| |
Low data rate, +/- 250 kHz: 40 dB; Low data rate, +/- 500 kHz: 50 dB Middle data rate, +/- 250 kHz: 30 dB; Middle data rate, +/- 500 kHz: 40 dB High data rate, +/- 500 kHz: 30 dB; High data rate, +/- 1000 kHz: 45 dB |
| RECEIVER RF SELECTIVITY |
Below 900 MHz and above 930 MHz; > 50 dB |
| RURAL RANGE LINE OF SIGHT*** |
Low data rate: Up to 105 km (65 mi) |
| URBAN RANGE LINE OF SIGHT**** |
Low data rate: Up to 18 km (11 mi) |
| INDOOR RANGE |
Low data rate: Up to 300 m (1,000 feet) |
| |
NETWORKING AND SECURITY |
| MODULATION |
Gaussian Frequency Shift Keying |
| SPREADING TECHNOLOGY |
Frequency Hopping Spread Spectrum (FHSS) |
| |
Peer-to-peer (master/slave relationship not required), point-to-point/point-to-multipoint, mesh |
| |
Optional 256-bit AES CBC encryption. Encryption is enabled with the ATKY command. |
| |
GENERAL |
| DIMENSIONS ?? |
|
| WEIGHT |
40g
|
| ROHS |
Compliant |
| MANUFACTURING |
ISO 9001:2000 registered standards |
| HOST INTERFACE CONNECTOR |
37 castellated SMT pads |
| ANTENNA CONNECTOR OPTIONS |
SMA |
| ANTENNA IMPEDANCE |
50 ohms unbalanced |
| MAXIMUM INPUT RF LEVEL AT ANTENNA PORT |
6 dBm |
| OPERATING TEMPERATURE |
-40° C to 85° C |
| POWER REQUIREMENTS |
power |
| SUPPLY VOLTAGE |
5 V typical |
| RECEIVE CURRENT (VCC = 5 V) |
40 mA |
| TRANSMIT CURRENT (VCC = 5 V) |
900 mA @ 30 dBm; 640 mA @ 27 dBm; 330 mA @ 20 dBm |
| SLEEP CURRENT (VCC = 5 V) |
2.5 uA |
| REGULATORY APPROVALS ?? |
|
| UNITED STATES |
FCC ID: MCQ-XBPSX |
| CANADA |
IC: 1846A-XBPSX |
| AUSTRALIA |
RCM |
