Ephil X-76cc-T PRO Model Aircraft Model Gasoline Engine Opposed Two-Cylinder Two-Stroke Fixed Wing Engine

austarsmodel@yahoo.com (Austars Model Pty Ltd) — Thu, 10 Jul 2025 09:35:39 +0800

X-76cc-TPRO

Displacement:76cc(4.64cuin)

Performance:9.0HP

SpeedRange:1800-7300RPM(TestPropeller-24*9)

Bore:39mm(1.54in)

Stroke:32.5mm(1.28in)

StaticThrust:18.5kg@100mALT(40.8lb@328ftALT)

StaticThrust:16.8kg@1800mALT(37.1lb@5900ftALT)

Compressionratio:9:1

Lubricationratio:30:1(Fuel:2-StrokeMotorOil)

IgnitionVoltage:6-14V

SparkPlugType:CM6IridiumSparkPlug

RecommendedPropeller:22x10;23x8;23x10;24x8

WeightofMainEngine:1935g

WeightofMufflerSet:174g(L&RMufflers;Screws)

WeightofEngineMount:72g

WeightofSparkPlug:13.5g*2(CM6*2)

WeightofCDI(Ignition):173g

WeightofStarter:123g

WeightofESC:36g

TotalWeight:2417g(5.3lb)

Ephil XG-38cc-R Pro Model Aircraft Gasoline Engine Hot Fire Head Electric Starter Single Cylinder Rear Fixed Wing

austarsmodel@yahoo.com (Austars Model Pty Ltd) — Wed, 11 Jun 2025 11:15:25 +0800

XG-38cc-R PRO

Displacement: 38cc (2.33 cu in)

Performance: 4.2HP

Speed Range: 1800-7300 RPM (Test Propeller-20*9)

Bore: 39mm (1.54 in)

Stroke: 32.5mm (1.28 in)

Static Thrust: 10.5 kg @ 100 m ALT (23.1 lb @ 328 ft ALT)

Static Thrust: 8.5 kg @ 1800 m ALT (18.7 lb @ 5900 ft ALT)

Compression ratio: 9:1

Lubrication ratio: 30:1 (Fuel: 2-Stroke Motor Oil)

Ignition Voltage: 6-8.4 V

Glow Plug Type: E8 (or OS G5) Glow Plug & AET Power System

Recommended Propeller: 19x8; 19x10; 20x8; 20x10

Weight of Main Engine: 1216g

Weight of Muffler Set: 73g

Weight of Aluminum Standoffs Set: 100g

Weight of Glow Plug: 3.6g

Weight of AET (Ignition): 30g

Weight of Starter: 109g

Weight of ESC: 36g

Total Weight: 1459g (3.22 lb)

EPHIL XG-38cc-R PRO Engine

Product Display

Ephil XG-38cc-R Model Aircraft Gasoline Engine Hot Fire Head Ignition Innovation Alignment Double Cylinder Fixed 100K+ similar items sold 0 sold 100K+ similar items sold 0 sold 100K+ similar items sold

austarsmodel@yahoo.com (Austars Model Pty Ltd) — Wed, 11 Jun 2025 10:43:00 +0800

G-38cc-R

Displacement: 38cc (2.33 cu in)

Performance: 4.2HP

Speed Range: 1800-7300 RPM (Test Propeller-20*9)

Bore: 39mm (1.54 in)

Stroke: 32.5mm (1.28 in)

Static Thrust: 10.5 kg @ 100 m ALT (23.1 lb @ 328 ft ALT)

Static Thrust: 8.5 kg @ 1800 m ALT (18.7 lb @ 5900 ft ALT)

Compression ratio: 9:1

Lubrication ratio: 30:1 (Fuel: 2-Stroke Motor Oil)

Ignition Voltage: 6-8.4 V

Glow Plug Type: E8 (or OS G5) Glow Plug & AET Power System

Recommended Propeller: 19x8; 19x10; 20x8; 20x10

Weight of Main Engine: 1040g

Weight of Muffler Set: 73g

Weight of Aluminum Standoffs Set: 100g

Weight of Glow Plug: 3.6g

Weight of AET (Ignition): 30g

Total Weight: 1247g (2.75 lb)

Ephil XG-20cc-S PRO Model Aircraft Gasoline Engine Hot Fire Head Electric Starter Single Cylinder Rear Row

austarsmodel@yahoo.com (Austars Model Pty Ltd) — Mon, 09 Jun 2025 10:56:26 +0800

XG-20cc-SPRO

Displacement:20cc(1.22cuin)

Performance:2.4HP

SpeedRange:2000-8500RPM(TestPropeller-16*8)

Bore:32mm(1.26in)

Stroke:27mm(1.06in)

StaticThrust:6.9kg@100mALT(15.2lb@328ftALT)

StaticThrust:5.3kg@1800mALT(11.7lb@5900ftALT)

Compressionratio:9:1

Lubricationratio:30:1(Fuel:2-StrokeMotorOil)

IgnitionVoltage:6-8.4V

GlowPlugType:E8(orOSG5)GlowPlug&AETPowerSystem

RecommendedPropeller:16x8;14x10;15x8;16x6;17x6

WeightofMainEngine:697g

WeightofMufflerSet:60g

WeightofEngineMountSet:65g

WeightofGlowPlug:3.6g

WeightofAET(Ignition):30g

WeightofStarter:85g

WeightofESC:36g

TotalWeight:1099g(2.42lb)

Ephil XG-20cc-S Model Aircraft Gasoline Engine Hot Fire Head Electric Starter Single Cylinder Rear Row

austarsmodel@yahoo.com (Austars Model Pty Ltd) — Mon, 09 Jun 2025 10:46:39 +0800

XG-20cc-S

Displacement:20cc(1.22cuin)

Performance:2.4HP

SpeedRange:2000-8500RPM(TestPropeller-16*8)

Bore:32mm(1.26in)

Stroke:27mm(1.06in)

StaticThrust:6.9kg@100mALT(15.2lb@328ftALT)

StaticThrust:5.3kg@1800mALT(11.7lb@5900ftALT)

Compressionratio:9:1

Lubricationratio:30:1(Fuel:2-StrokeMotorOil)

IgnitionVoltage:6-8.4V

GlowPlugType:E8(orOSG5)GlowPlug&AETPowerSystem

RecommendedPropeller:16x8;14x10;15x8;16x6;17x6

WeightofMainEngine:697g

WeightofMufflerSet:62g

WeightofEngineMountSet:115g

WeightofGlowPlug:3.6g

WeightofAET(Ignition):30g

TotalWeight:908g(2.0lb)

Ephil XG-20cc-R Pro Model Aircraft Gasoline Engine Hot Fire Head Electric Starter Single Cylinder Rear Row

austarsmodel@yahoo.com (Austars Model Pty Ltd) — Mon, 09 Jun 2025 09:51:58 +0800

XG-20cc-RPRO

Displacement:20cc(1.22cuin)

Performance:2.4HP

SpeedRange:2000-8500RPM(TestPropeller-16*8)

Bore:32mm(1.26in)

Stroke:27mm(1.06in)

StaticThrust:6.9kg@100mALT(15.2lb@328ftALT)

StaticThrust:5.3kg@1800mALT(11.7lb@5900ftALT)

Compressionratio:9:1

Lubricationratio:30:1(Fuel:2-StrokeMotorOil)

IgnitionVoltage:6-8.4V

GlowPlugType:E8(orOSG5)GlowPlug&AETPowerSystem

RecommendedPropeller:16x8;14x10;15x8;16x6;17x6

WeightofMainEngine:697g

WeightofMufflerSet:60g

WeightofEngineMountSet:65g

WeightofGlowPlug:3.6g

WeightofAET(Ignition):30g

WeightofStarter:85g

WeightofESC:36g

TotalWeight:1099g(2.42lb)

Ephil XG-20cc-R Model Aircraft Gasoline Engine Hot Fire Head Electric Starter Single Cylinder Rear Ro

austarsmodel@yahoo.com (Austars Model Pty Ltd) — Mon, 09 Jun 2025 09:39:14 +0800

XG-20cc-R

Displacement: 20cc (1.22 cu in)

Performance: 2.4 HP

Speed Range: 2000-8500 RPM (Test Propeller-16*8)

Bore: 32 mm (1.26 in)

Stroke: 27mm (1.06 in)

Static Thrust: 6.9 kg @ 100 m ALT (15.2 lb @ 328 ft ALT)

Static Thrust: 5.3 kg @ 1800 m ALT (11.7 lb @ 5900 ft ALT)

Compression ratio: 9:1

Lubrication ratio: 30:1 (Fuel: 2-Stroke Motor Oil)

Ignition Voltage: 6-8.4 V

Glow Plug Type: E8 (or OS G5) Glow Plug & AET Power System

Recommended Propeller: 16x8; 14x10; 15x8; 16x6; 17x6

Weight of Main Engine: 697g

Weight of Muffler Set: 62g

Weight of Engine Mount Set: 115g

Weight of Glow Plug: 3.6g

Weight of AET (Ignition): 30g

Total Weight: 908g (2.0 lb)

Ephil X-76cc-T Model Aircraft Model Gasoline Engine Opposed Two-Cylinder Two-Stroke Fixed Wing Engine

austarsmodel@yahoo.com (Austars Model Pty Ltd) — Wed, 04 Jun 2025 11:09:18 +0800

X-76cc-T

Displacement: 76cc (4.64 cu in)

Performance: 9.0 HP

Speed Range: 1800-7300 RPM (Test Propeller-24*9)

Bore: 39 mm (1.54 in)

Stroke: 32.5mm (1.28 in)

Static Thrust: 18.5 kg @ 100 m ALT (40.8 lb @ 328 ft ALT)

Static Thrust: 16.8 kg @ 1800 m ALT (37.1 lb @ 5900 ft ALT)

Compression ratio: 9:1

Lubrication ratio: 30:1 (Fuel: 2-Stroke Motor Oil)

Ignition Voltage: 6-14 V

Spark Plug Type: CM6 Iridium Spark Plug

Recommended Propeller: 22x10; 23x8; 23x10; 24x8

Weight of Main Engine: 1688g

Weight of Muffler Set: 174g (L&R Mufflers; Screws)

Weight of Aluminum Standoffs Set: 72g

Weight of Spark Plug: 13.5g*2 (CM6*2)

Weight of CDI (Ignition): 173g

Total Weight: 2134g (4.7 lb

EPHIL X-38cc-S Model Aircraft Model Gasoline Engine Single Cylinder Two Stroke Side Row Fixed Wing

austarsmodel@yahoo.com (Austars Model Pty Ltd) — Thu, 10 Apr 2025 10:15:29 +0800

X-38cc-S

Displacement:38cc(2.33cuin)

Performance:4.2HP

SpeedRange:1800-7300RPM(TestPropeller-20*9)

Bore:39mm(1.54in)

Stroke:32.5mm(1.28in)

StaticThrust:10.5kg@100mALT(23.1lb@328ftALT)

StaticThrust:8.5kg@1800mALT(18.7lb@5900ftALT)

Compressionratio:9:1

Lubricationratio:30:1(Fuel:2-StrokeMotorOil)

IgnitionVoltage:6-14V

SparkPlugType:CM6IridiumSparkPlug

RecommendedPropeller:19x8;19x10;20x8;20x10

WeightofMainEngine:1010g

WeightofMufflerSet:73g

WeightofAluminumStandoffsSet:100g

WeightofSparkPlug:13.5g

WeightofCDI(Ignition):104g

TotalWeight:1300.5g(2.87lb)

EPHIL X-38cc-R PRO model aircraft gasoline engine electric start single cylinder two stroke rear fixed wing

austarsmodel@yahoo.com (Austars Model Pty Ltd) — Thu, 10 Apr 2025 09:50:01 +0800

X-38cc-RPRO

Displacement:38cc(2.33cuin)

Performance:4.2HP

SpeedRange:1800-7300RPM(TestPropeller-20*9)

Bore:39mm(1.54in)

Stroke:32.5mm(1.28in)

StaticThrust:10.5kg@100mALT(23.1lb@328ftALT)

StaticThrust:8.5kg@1800mALT(18.7lb@5900ftALT)

Compressionratio:9:1

Lubricationratio:30:1(Fuel:2-StrokeMotorOil)

IgnitionVoltage:6-14V

SparkPlugType:CM6IridiumSparkPlug

RecommendedPropeller:19x8;19x10;20x8;20x10

WeightofMainEngine:1216g

WeightofMufflerSet:73g

WeightofAluminumStandoffsSet:100g

WeightofSparkPlug:13.5g

WeightofCDI(Ignition):104g

WeightofStarter:109g

WeightofESC:36g

TotalWeight:1542.5g(3.4lb)

EPHIL X-38cc-R Model Aircraft Gasoline Engine Single Cylinder Two Stroke Rear Fixed Wing Engine

austarsmodel@yahoo.com (Austars Model Pty Ltd) — Thu, 10 Apr 2025 09:32:48 +0800

X-38cc-R

Displacement: 38cc (2.33 cu in)

Performance: 4.2HP

Speed Range: 1800-7300 RPM (Test Propeller-20*9)

Bore: 39mm (1.54 in)

Stroke: 32.5mm (1.28 in)

Static Thrust: 10.5 kg @ 100 m ALT (23.1 lb @ 328 ft ALT)

Static Thrust: 8.5 kg @ 1800 m ALT (18.7 lb @ 5900 ft ALT)

Compression ratio: 9:1

Lubrication ratio: 30:1 (Fuel: 2-Stroke Motor Oil)

Ignition Voltage: 6-14 V

Spark Plug Type: CM6 Iridium Spark Plug

Recommended Propeller: 19x8; 19x10; 20x8; 20x10

Weight of Main Engine: 1040g

Weight of Muffler Set: 73g

Weight of Aluminum Standoffs Set: 100g

Weight of Spark Plug: 13.5g

Weight of CDI (Ignition): 104g

Total Weight: 1330.5g (2.93 lb)

EPHIL X-20cc-S PRO model aircraft gasoline engine electric start single cylinder two stroke side row fixed wing

austarsmodel@yahoo.com (Austars Model Pty Ltd) — Wed, 09 Apr 2025 16:26:15 +0800

X-20cc-SPRO

Displacement:20cc(1.22cuin)

Performance:2.5HP

SpeedRange:1800-8600RPM(TestPropeller-16*8)

Bore:32mm(1.26in)

Stroke:27mm(1.06in)

StaticThrust:7.0kg@100mALT(15.4lb@328ftALT)

StaticThrust:5.4kg@1800mALT(11.9lb@5900ftALT)

Compressionratio:9:1

Lubricationratio:30:1(Fuel:2-StrokeMotorOil)

IgnitionVoltage:6-14V

SparkPlugType:CM6IridiumSparkPlug

RecommendedPropeller:16x8;14x10;15x8;16x6;17x6

WeightofMainEngine:697g

WeightofMufflerSet:62g

WeightofEngineMountSet:115g

WeightofSparkPlug:13.5g

WeightofCDI(Ignition):104g

WeightofStarter:85g

WeightofESC:36g

TotalWeight:1182.5g(2.61lb)

EPHIL X-20cc-R PRO model aircraft gasoline engine electric start single cylinder two stroke rear fixed wing

austarsmodel@yahoo.com (Austars Model Pty Ltd) — Wed, 09 Apr 2025 16:24:17 +0800

X-20cc-R PRO

Displacement: 20cc (1.22 cu in)

Performance: 2.5 HP

Speed Range: 1800-8600 RPM (Test Propeller-16*8)

Bore: 32 mm (1.26 in)

Stroke: 27mm (1.06 in)

Static Thrust: 7.0 kg @ 100 m ALT (15.4 lb @ 328 ft ALT)

Static Thrust: 5.4 kg @ 1800 m ALT (11.9 lb @ 5900 ft ALT)

Compression ratio: 9:1

Lubrication ratio: 30:1 (Fuel: 2-Stroke Motor Oil)

Ignition Voltage: 6-14 V

Spark Plug Type: CM6 Iridium Spark Plug

Recommended Propeller: 16x8; 14x10; 15x8; 16x6; 17x6

Weight of Main Engine: 697g

Weight of Muffler Set: 62g

Weight of Engine Mount Set: 115g

Weight of Spark Plug: 13.5g

Weight of CDI (Ignition): 104g

Weight of Starter: 85g

Weight of ESC: 36g

Total Weight: 1182.5g (2.61 lb)

EPHIL X-20cc-R Model Aircraft Gasoline Engine Single Cylinder Two Stroke Rear Fixed Wing Engine

austarsmodel@yahoo.com (Austars Model Pty Ltd) — Wed, 09 Apr 2025 16:12:19 +0800

X-20cc-R

Displacement: 20cc (1.22 cu in)

Performance: 2.5 HP

Speed Range: 1800-8600 RPM (Test Propeller-16*8)

Bore: 32 mm (1.26 in)

Stroke: 27mm (1.06 in)

Static Thrust: 7.0 kg @ 100 m ALT (15.4 lb @ 328 ft ALT)

Static Thrust: 5.4 kg @ 1800 m ALT (11.9 lb @ 5900 ft ALT)

Compression ratio: 9:1

Lubrication ratio: 30:1 (Fuel: 2-Stroke Motor Oil)

Ignition Voltage: 6-14 V

Spark Plug Type: CM6 Iridium Spark Plug

Recommended Propeller: 16x8; 14x10; 15x8; 16x6; 17x6

Weight of Main Engine: 697g

Weight of Muffler Set: 62g

Weight of Engine Mount Set: 115g

Weight of Spark Plug: 13.5g

Weight of CDI (Ignition): 104g

Total Weight: 991.5g (2.19 lb

EPHIL X-20cc-S Model Aircraft Gasoline Engine Single Cylinder Two Stroke Fixed Wing Engine

austarsmodel@yahoo.com (Austars Model Pty Ltd) — Wed, 09 Apr 2025 11:15:48 +0800

X-20cc-S

Displacement: 20cc (1.22 cu in)

Performance: 2.5 HP

Speed Range: 1800-8600 RPM (Test Propeller-16*8)

Bore: 32 mm (1.26 in)

Stroke: 27mm (1.06 in)

Static Thrust: 7.0 kg @ 100 m ALT (15.4 lb @ 328 ft ALT)

Static Thrust: 5.4 kg @ 1800 m ALT (11.9 lb @ 5900 ft ALT)

Compression ratio: 9:1

Lubrication ratio: 30:1 (Fuel: 2-Stroke Motor Oil)

Ignition Voltage: 6-14 V

Spark Plug Type: CM6 Iridium Spark Plug

Recommended Propeller: 16x8; 14x10; 15x8; 16x6; 17x6

Weight of Main Engine: 697g

Weight of Muffler Set: 62g

Weight of Engine Mount Set: 115g

Weight of Spark Plug: 13.5g

Weight of CDI (Ignition): 104g

Total Weight: 991.5g (2.19 lb)

UMS engine fuel pump

austarsmodel@yahoo.com (Austars Model Pty Ltd) — Wed, 08 Sep 2021 03:19:41 +0800

Features:
- Adopting the all new diaphragm pump. By calculating & testing, the smoke/gasoline ratio is controlled in a reasonable range for sufficient atomization, and airplane won't be polluted.
- Adopting low power motor, the smoke pump can be directly powered by receiver. No need of extra batteries. The pump weights only 68g.
- Directly driven mode, no need of complicated program settings, just need 1 switch channel for controlling.

Specifications :
Voltage: 4.8-8.4V
Pump Style: Membrane
Weight: about 68g
Dimensions(L*W*H): 56*22.5*35.5mm
Barb Connection: 3mm

Includes:
1 x RCEXL smoking pump
1 x Fuel hose

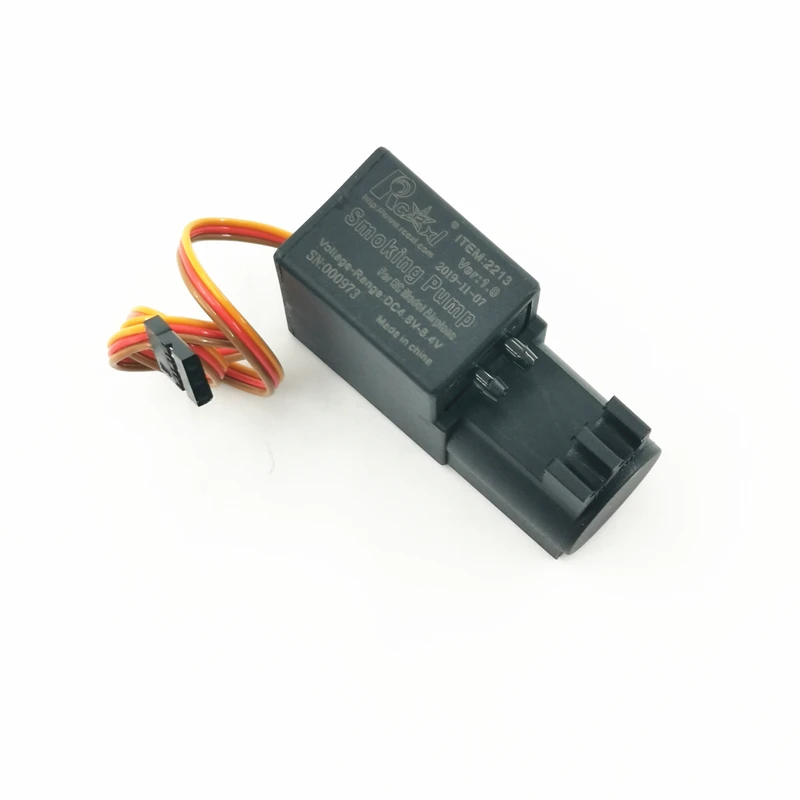

RCEXL Mini Smoke Pump/ Smoking Pump With Adjustable Flow for Airplane

austarsmodel@yahoo.com (Austars Model Pty Ltd) — Mon, 15 Feb 2021 01:50:48 +0800

RCEXL 1PCS Mini Smoking Pump System Gasoline with Adjustable Flow for RC Model Aircraft Accessories

austarsmodel@yahoo.com (Austars Model Pty Ltd) — Wed, 20 May 2020 12:17:04 +0800

1PCS RCEXL Mini Smoking Pump System Gasoline Pump Smoking Pump with Adjustable Flow for RC Model Aircraft Accessories

Features:

- Adopting the all new diaphragm pump. By calculating & testing, the smoke/gasoline ratio is controlled in a reasonable range for sufficient atomization, and airplane won't be polluted

- Adopting low power motor, the smoke pump can be directly powered by receiver. No need of extra batteries. The pump weights only 68g

- Directly driven mode, no need of complicated program settings, just need 1 channel for controlling

Description:

- Voltage:4.8-8.4V

- Pump style:diaphragm pump

- Weight:about 68g

- Size(L*W*H):56*22.5*35.5mm

- Input and output pipe diameter:3mm

Notice:

The others items is only for your refer,it will not include in the package

Package include:

1pcs x Smoking Pump

RCEXL Smallest Smoke Pump Gasoline Pump Smoking Pump with Adjustable Flow for RC Airplane Fixed-wing model aircraft

austarsmodel@yahoo.com (Austars Model Pty Ltd) — Wed, 20 May 2020 12:09:22 +0800

RCEXL Smallest Smoke Pump Gasoline Pump Smoking Pump with Adjustable Flow for RC Airplane Fixed-wing model aircraft

Features:

- Adopting the all new diaphragm pump. By calculating & testing, the smoke/gasoline ratio is controlled in a reasonable range for sufficient atomization, and airplane won't be polluted.

- Adopting low power motor, the smoke pump can be directly powered by receiver. No need of extra batteries. The pump weights only 68g.

- Directly driven mode, no need of complicated program settings, just need 1 channel for controlling.

Specifications:

- Voltage: 4.8-8.4V

- Pump Style: Membrane

- Weight: about 68g

- Dimensions(L*W*H): 56*22.5*35.5mm

Barb Connection: 3mm
