SKYRC PC 1080 Lipo balance charger Dual Channel Lithium Battery Charger 1080W 20A

Specification:
-Skyrc PC1080 is a dual channel charger, which can charge 2 pack of 6S LiPo batteries at the same time.what's more, the charger is equipped with master-slave control mode, which allows you to synchronize more than one charger when charging same batteries.
-Multi-Charger Synchronization:connect the chargers with data cable, all the other channels can be set by the master channel. It is useful and saves much time.
-3 working modes: balance charge mode,storage mode,charge mode.can also work as battery voltage meter,battery internal resistance meter.
-Multiple protection: short circuit protection,reverse polarity protection,over temperature protection

-Dimension: 272x202x118.6mm
-Net Weight: 4.88kg
-Input Voltage: 100-240V
-Output Power: 1080W (540W x 2)
-Discharge Power: 100W (50W x 2)
-Charge Current: 1.0-20.0A x 2
-Balance Current: 1.2A
-Battery Type: LiPo/LiHV
-Battery Cell Count:6S x 2

Package including:
1x SKYRC PC1080 charger
1x AC cable
1x Data cable

Description:
SKYRC D400 is a twin-channel charger with two independent circuits which can charge two different kinds of batteries simultaneously. It also supports power distribution in AC/DC mode to get max charging power to shorten charging time.

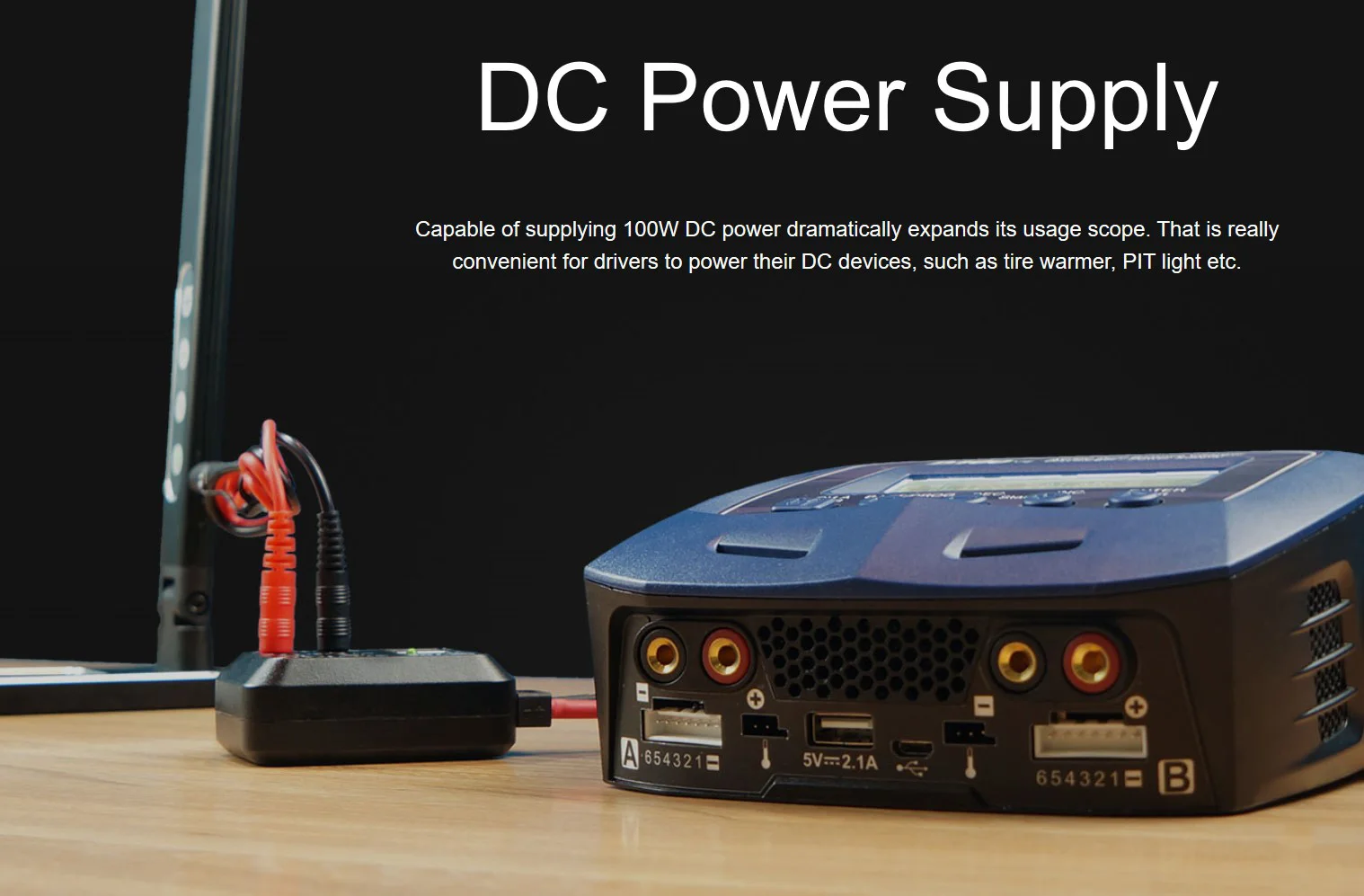

Moreover, it is not only just a charger, but also can supply 150 Watts DC Power on channel 2, users can use it to power DC devices.

What’s more, the synchronization mode is available, in which users could perform synchronous settings for charging same batteries simultaneously to offer time-saving benefits.

Specification:

Features:
Win-channel Charger
SKYRC D400 allows you to plug 2 batteries into one charger simultaneously, and it will intelligently and automatically charge 2 battries at once to their maximum capacity. To top of it, the batteries being charged do not even need to have the same configuration. You can connect different chemistry(NiMH/NiCd/LiPo/LiFe/Lilon/LiHV/Pb)batteries into any of the charging ports.

Dual Input and Power Distribution
It supports power distribution, for example, Channel 1-300W, then Channel 2-100W, the total power is 400W. Please note the Max power for Channel 2 is 200W, but Channel 1can reach to 400W.

Optimized Operating Software
SKYRC D400 features the so-called AUTO function that set the feeding current during the process of charging or discharging. Especially for lithium batteries, it can prevent the overcharging which may lead to an explosion due to the user's fault. It can disconnect the circuit automatically and alarm once detecting any malfunction. All the programs of this product were controlled through two way linkage and communication, to achieve the maximum safety and minimize the trouble. All the settings can be configured by users!

Battery Memory (Data Store/Load)
The charger can store up to 10 different charge/discharge profiles for each channel. You can keep the data pertaining to program setting of the battery of continuous charging or discharging. Users can call out these data at any time without any special program
setting.

Terminal Voltage Control(TVC)
The charger allows user to change the end voltage. (for expert user only)

PC Control Software “Charge Master”
The free “Charge Master” software gives you unparalleled ability to operate the charger through the computer. You can monitor pack voltage, cell voltage and other data during the charging, view charge date in real-time graphs. And you can initiate, control charging and update firmware from “Charge Master”.
With “Charger Master” and one computer, you could operate and update two channels simultaneously.

Internal Independent Lithium Battery Balancer
SKYRC D400 employs an individual-cell-voltage balancer. It isn't necessary to connect an external balancer for balance charging.

Balancing Individual Cells Battery Discharging
During the process of discharging, SKYRC D400 can monitor and balance each cell of the battery individually. Error message will be indicated and the process will be ended automatically if the voltage of any single one cell is abnormal.

Adaptable to Various Type of Lithium Battery
SKYRC D400 is adaptable to various types of lithium batteries, such as LiPo, LiIon and the new LiFe series of batteries.

LiHV Mode Available
The additional LiHV mode is able to charge the new generation of LiPo batteries with an end of charge voltage 4.35 V.

Fast and Storage Mode of Lithium Battery
Purposes to charge lithium battery varies, 'fast' charge reduce the duration of charging, whereas 'store' state can control the final voltage of your battery, so as to store for a long time and protect useful time of the battery.

Re-Peak Mode of NiMH/NiCd Battery
In re-peak charge mode, the charger can peak charge the battery once, twice or three times in a row automatically. This is good for making certain the battery is fully charged.

Delta-peak Sensitivity for NiMH/NiCd
Delta-peak sensitivity for NiMH/NiCd battery: The automatic charge termination program based on the principle of the Delta-peak voltage detection. When the battery's voltage exceeds the threshold, the process will be terminated automatically.

Cyclic Charging/Discharging
1 to 5 cyclic and continuous process of charge > discharge or discharge > charge is operable for battery refreshing and balancing to stimulate the battery's activity.

Automatic Charging Current Limit
You can set up the upper limit of the charging current when charging your NiMH or NiCd battery, it is useful for the NiMH battery of low impedance and capacity in the 'AUTO' charging mode.

LiPo Battery Meter
The user can check battery's total voltage, the highest voltage, the lowest voltage and each cell's voltage.

Battery Internal Resistance Meter
The user can check battery's total internal resistance and each cell's internal resistance.

Capacity Limit
The charging capacity is always calculated as the charging current multiplied by time. If the charging capacity exceeds the limit, the process will be terminated automatically when you set the maximum value.

Temperature Threshold*
The battery's internal chemical reaction will cause the temperature of the battery to rise. If the temperature limit is reached, the process will be terminated. (*This function is available by connecting optional temperature probe, which is not included in the package.)

Processing Time Limit
You can also limit the maximum process time to avoid any possible defect.

English Manual,Click Here

Package Included:
1xSKYRC D400 charger
,,,,,,

Descirpion:
Brand Name: SkyRC
Item Name: Balance Charger Discharger
Item No.: Q200

Input Voltage : AC100-240V / DC 11 -18V

Charge Circuit Power
DC Input :CH A/CH B: 100W CH C/CH D: 50W
AC Input : CH A+CH C=100W CH B+CH D=100W CH A/CH B: 50-100W CH C/CH D: 0-50W
Discharge Circuit Power : 4 x 10W
Charge Current Range : CH A/CH B 0.1-10A CH C/CH D 0.1-5A
Discharge Current Range : 0.1-2Ax 4
Current Drian for Balancing : Max 200mA/cell
Trickle Charging Current : 50mA-300mA & OFF
LiPo/LiFe/Lilon/LiHV Battery Cell Count : 1-6S
NiMH/NiCd Battery Cell Count : 1-15S
Pb Battery Voltage : 2-20V
Dimension : 197x182x71mm
Weight : 1325g

Features:
Large screen LCD
Terminal Voltage Control
Re-peak Mode for NiMH/NiCd Battery
Battery Meter
Battery Internal Resistance Meter
PC Communications: USB Port for PC Control & Firmware Upgrade
Smart Phone Control & Monitor Via Wi-Fi Module( SK-600075 Optional Part)
Four channels charge four different kinds of batteries simultaneously
Support charging power distribution intellectively when operating with AC input

Functions:

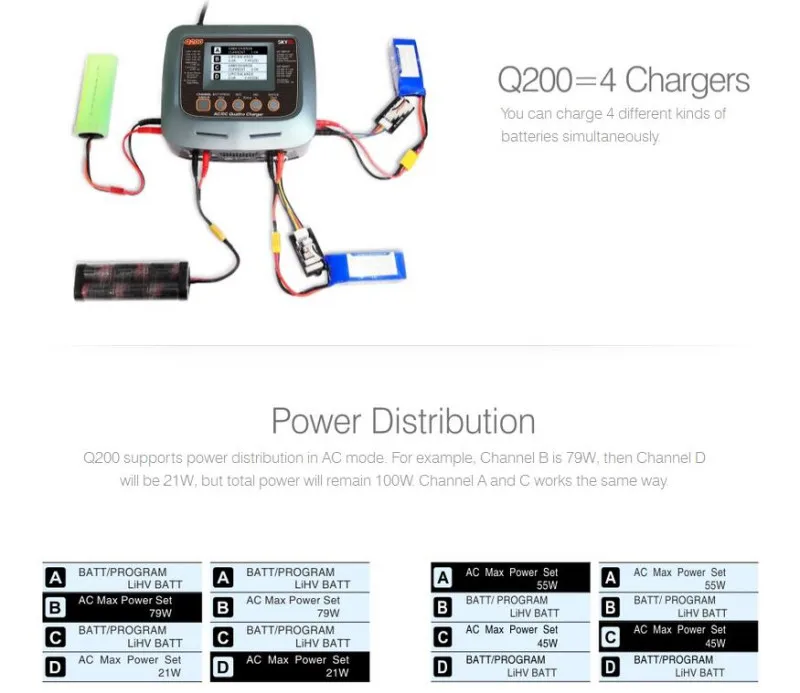

Power Distribution
In AC mode, it supports power distribution, for example, Channel A = 65W and C = 35W, then Channel B = 80W and D = 20W, the total power is 200W.

4 Charging Qutputs
The charger can handle up to four different battery types at the same time and charge them simultaneously.

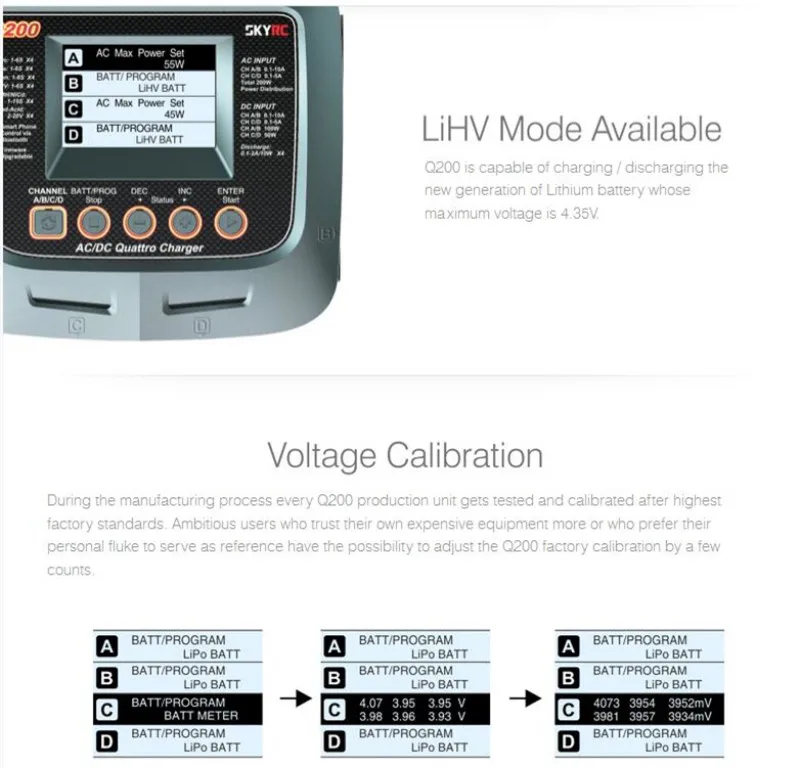

As well it has a LIHV Mode Available
The additional LiHV mode is able to charge the new generation of LiPo batteries with an end of charge voltage of 4.35 V.

Charge Master
The user can monitor pack voltage, cell voltage and other data during the charging, view charge data in realtime graphs, and can also control charging and update firmware from "Charge Master".

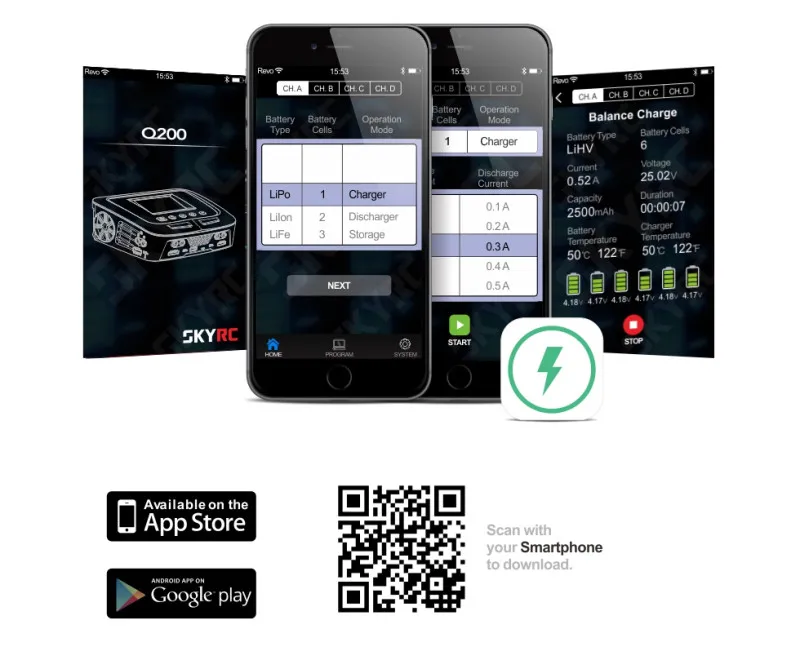

Finally, Your Charger Gets Its Own App
Smart Phone Control via Wi-Fi Module (both iOS and Android) This charger can be controlled and operated by smart phones via Wi-Fi module (optional part SK-600075) or Bluetooth.


Q200 User Manual, Click here

Package included:
1x SkyRC Q200 Balance Charger/Discharger

Specification:
AC Input Voltage : 100-240V
Display Type: LCD
Case Material: Plastic
Controls: Four Buttons
Case Size: 127x115x71mm
Weight: 561g
External Port: 2-6S Balance Socket-XH, Battery Socket, AC Input
Delta Max Detection for NiMH/NiCd: 3-15mV/cell / Default: 4mV/cell
Charge Voltage: NiMH/NiCd: Delta max detection
LiPo: 4.18-4.25V/cell Lilon: 4.08^.2V/cell
LiFe: 3.58-3.7V/cell LiHV: 4.25-4.35V/cell
Balance Current: 1000mA/cell Max
Reading Voltage Range: 0.1-26.1V/cell
Battery Types/Cells: LiPo/Lilon/LiFe/LiHV: 1-6cells
NiMH/NiCd: 1-15cells Pb: 2-20V
Battery Capacity Range: NiMH/NiCd: 100-50000mAh
LiPo/Lilon/LiFe/UHV: 100-50000mAh Pb: 100-50000mAh
Charge Current: 0.1A-15.0A
Safety Timer: 1-720minutes off
Charge Wattage: 200W(100WX2)
Discharge Current: 0.1A-3.0A
Discharge Cut-off Voltage: NiMH/NiCd: 0.1-1.1 V/cell
LiPo: 3.0-3.3V/cell Lilon: 2.9-3.2V/cell
LiFe: 2.6-2.9V/cell LiHV: 3.1-3.4V/cell
Pb: 1,8V
Discharge Wattage: 8W
Balance Cells: 2-6 cells
Charge Method: CC/CV for lithium types and lead (Pb) batteries
Delta-max Sensitivity for NiMH/NiCd.
B6 duo supports power distribution when one single channel is working, the max power is 200W; when two channels are workings, it is 100W per channel.

Size and Weight

Case Material: Plastic
Case Size: 178x135x96mm
Weight: 850g

Display

Display Type: LCD

Display Backlight: Blue

Power

DC Input Voltage: 11-18V
AC Input Voltage : 100-240V
Charge Wattage: 100W X 2
Discharge Wattage: 10W

Battery

Battery Types/Cells:
LiPo/LiHV/LiFe/LiIon: 1-6cells
NiMH/NiCd: 1-15cells
Pb: 2-20V

Battery Capacity Range:
NiMH/NiCd:100-50000mAh
LiPo/LiIon/LiFe/LiHV:100-50000mAh
Pb: 100-50000mAh

Charge and Discharge

Charge Voltage

NiMH/NiCd: Delta peak detection

LiPo: 4.18-4.25V/cell
LiFe: 3.58-3.7V/cell
Pb: 1.8-2.0V/cell

LiIon: 4.08-4.2V/cell
LiHV: 4.25-4.35V/cell

Discharge Cut-off Voltage

NiMH/NiCd:0.1-1.1V/cell

LiPo:3.0-3.3V/cell
LiFe:2.6-2.9V/cell

LiIon: 2.9-3.2V/cell
LiHV: 3.1-3.4V/cell

Battery Cutoff Temperature: 20ºC/68ºF-80ºC/176ºF(adjustable)

Reading Voltage Range: 0.1-26.1V/cell

Charge Current: 0.1A-12.0A

Discharge Current: 0.1A-2.0A
Balance Cells: 2-6 cells
Balance Current: 500mA/cell
Safety Timer: 1-120minutes off

Charge Method:

CC/CV for lithium types and lead(Pb) batteries Delta-peak Sensitivity for NiMH/NiCd.

Memory: 10 different charge/discharge profiles

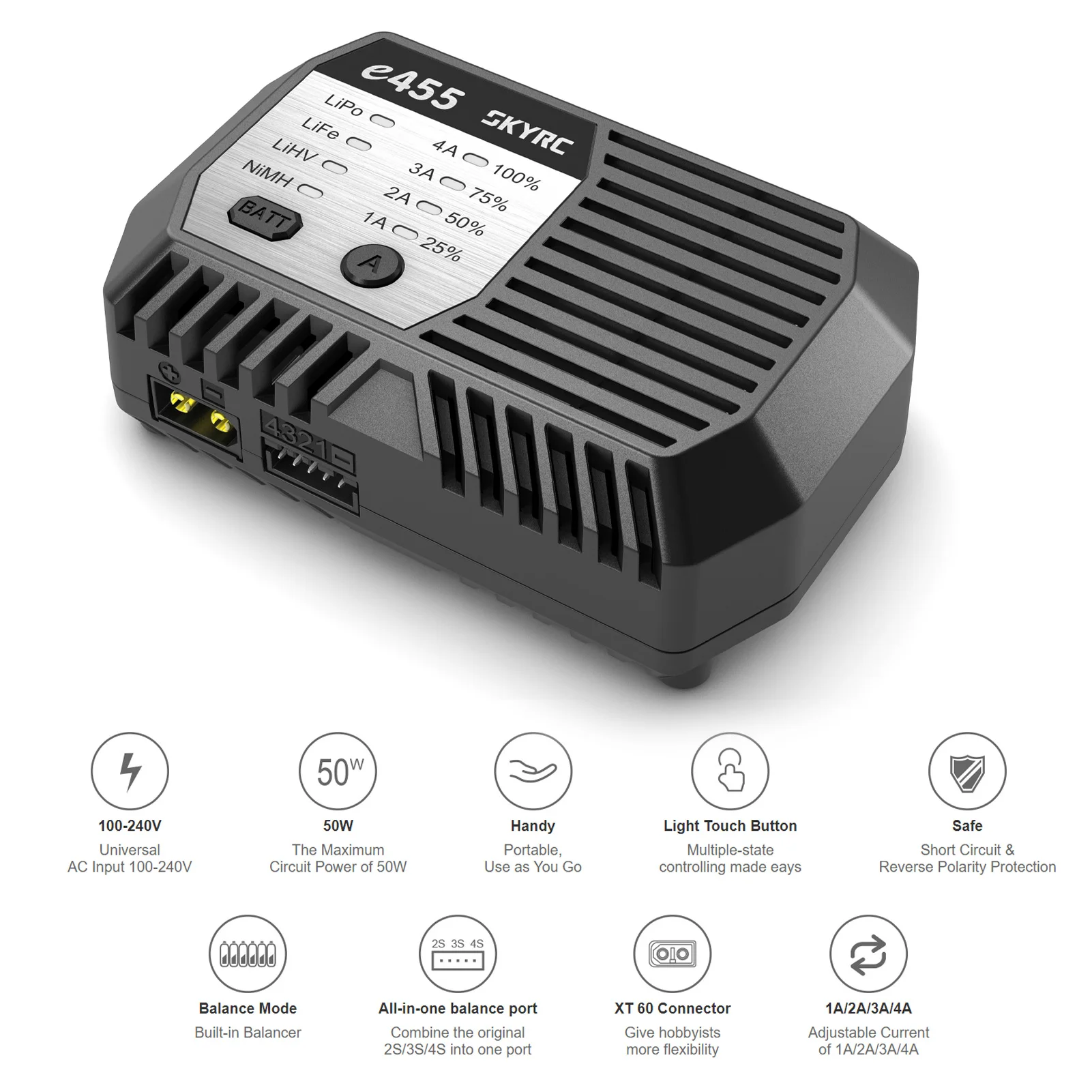

Specification:

Brand: SKYRC
Item name: E455 Balance Charger
Case Material: Plastic
Case Size: 110x70x40mm
Weight: 191g

AC Input: 100-240V
Battery Type: LiPo/LiFe/LiHV/NiMH
Cell Count: LiPo/LiFe/LiHV: 2-4S; NiMH: 6-8S
Charge Current: 1A/2A/3A/4A ± 10%
Cell Terminate Voltage: LiPo 4.2V±0.02V; LiHV: 4.35V±0.02V; LiFe: 3.6V±0.02V
Circuit Power: 50W
Current Drain for Balancing: 300mA

Package information:

Package size: 150x80x85mm
Package weight: 350g

Package list:

1 * e455 Charger
1 * AC Power Cable
1 * Instruction Manual

iCharger 308Duo

This charger MUST be used with a stable power supply, it is not recommended to be used with an automobile as a power source, or using multiple server power supplies in series as a power source

This dual port charger with a color LCD screen allows charging different batteries up to 30A, or up to 50A in synchronous mode. iCharger 308 Duo is a little brother of the popular and extremely powerful iCharger 4010 Duo. Instead of charging 10S batteries up to 40A, iCharger 308 Duo can handle up 8 cell LiPo packs up to 30A. These two chargers share the same operation interface and extra functions, such as battery internal resistance measurement, servo test, and pulse test. The charge and discharge data can be stored in a micro SD card that can be read with Logview on a PC. Eventhough with a high output power ability of 1300W, 30A, and dual ports, iCharger 308B retains f iCharger's reputation in making compact and powerful charge stations. Need flexibility in your charging? Nothing beats the convenience of a dual-port charger. Two independent charging channels in one compact unit lets you simultaneously work with batteries of different cell count , charging at up to 30A simultaneously - or if you want to go all out, combine the two channels and charge at up to 50A!

With two JST-XH balance boards thrown in for free - one for each channel - you'll be ready to go right away.

Specifications

• Input voltage range: 10-30V DC
• Input current limit: Total = 60A, Ch1/2 = 40A
• Maximum charge power: 1300W at >23.5V (800W max. per channel)
• Charge current range: 0.05-30.0A per channel, or up to 50A in synchronous mode
• Discharge power: 80W per channel, or up to 120W in synchronous mode
• Maximum regenerative discharge: 800W per channel, or up to 1300W in synchronous mode
• Maximum external discharge: 1050W per channel, or up to 2100W in synchronous mode
• Current drain for balancing: 1.2A per channel, or up to 2.4A in synchronous mode
• USB charging port: 5V/1A current limiting protection 1.2A
• Balance accuracy: 10mV
• LiPo/LiIo/LiFe: 1-8 series per channel
• NiCd/NiMH battery cell count: 1-25 series per channel
• Pb battery cell count: 1-18 series per channel
• PC Connectivity: USB port
• Weight: 910g
• Dimensions (LxWxD): 171x118x59 mm
• Warranty: 1 year

iCharger 4010 Duo Overview

The iCharger 4010 Duo is the latest heavyweight addition to the iCharger range. iChargers first independent two channel charger, producing more output power than any other charger currently available! iCharger 4010 DUO can charge 10s Lipo battery backs on each channel, thats 20s at once! Producing up to 40amps per channel and featuring a large TFT screen with all state of charge battery parameters, iCharger 4010 Duo is a wonder of electrical engineering. After years of research and development, we are pleased to present the most powerful, user friendly and accurate multi chemistry charger available today.

iCharger 4010 Duo Specifications

2 x Balance Board CB1010-XH (JST) and connecting harnesses are included with this charger.

iCharger 4010 Duo Features

Safety
iCharger 4010 Duo is designed with safety as the number one priority. Numerous cut-off and safety features are offered to the user.

• Capacity Cut Off-User can set a capacity limit for a charge cycle. The charger will stop once this limit is reached, avoiding over charging of a battery. This is particularly useful for batteries that don???t display normal characteristics during normal use or charge, normally as a result of poor quality or previous damage.
• Timer Cut Off-User set timer limit will terminate the charge process once the allocated time is reached.
• Internal Temperature Cut Off - Internal temperature sensor and temperature controlled automatic cooling FAN controls the internal temperature and provides intelligent protection. When the internal temperature is over 60-(140 F), the output power is automatically reduced by 25%. If the temperature exceeds 65-(149 F) the charge cycle is stopped.
• External Temperature Cut Off-Using an external temperature sensor, iCharger 4010 Duo will stop the charge cycle if the temperature of the battery exceeds user set level.
• Cell Count - Automatically checks number of cells in a pack to see if this matches user setting before beginning any function.
• Voltage Protections - The iCharger 4040 Duo has protection for reversed polarity (input or output), as well as low input voltage.

Two Independent Channels
iCharger 4010 Duo is a two channel independent charger. The charger is capable of charging 2 separate 10s packs on each channel. That is a total of 20s! Each channel is independent and can be used for different batteries or charge / discharge cycles at once.

Power
iCharger 4010 Duo is the most powerful iCharger model. Featuring up to 40amps (1200 watts max) on each channel, or 70 amps (2000 watts max) when used synchronous mode. Synchronous mode is when both channels are wired in parallel to charge one battery pack. In this mode, the chargers total combined output current is maximum 70amsp and 2000 watts.

Battery Types
iCharger 4010 Duo can charge any type of battery chemistry. Including all popular Lithium battery chemistries (Lipo, LiFe, LiLo), Nickel Metal Hydride (NiMh), Nickel Cadmium (NiCd), Sealed Lead Acid, Deep Cycle Lead Acid, Starter Lead Acid batteries and much more.

Balance Charge Options
The iCharger 4010 Duo has a built in integrated cell balancer and can be used with three types of lithium batteries (LiPo, Lilo, LiFe). iChargers design uses accurate balancing techniques to ensure that the voltage of each individual cell is the same during charge. Other battery chargers evaluate the batterys charge state based on the total voltage of the pack, not each individual cell.
Greater control over balance charge setting. Ability to either set to start balance charging when voltage reaches a user set value, or start balancing from beginning or part way through the (Lithium) charge cycle. Feature set balance settings offer greater user control of the charge cycle.

Battery Monitoring
Unique battery monitor function. Allowing user to monitor battery voltage (per cell), temperature, power and much more, while in normal use. This is a unique function that offers options to compare battery performance, check the condition of a battery, and establish if the battery is suitable for its intended application.

Regenerative Discharge Over Two Channels

• iCharger 4010 Duo features iChargers unique regenerative discharge function. When enabled, the charger sends the depleted energy in a discharge cycle back to the power source, recharging the power source at the same time. In this mode the power source needs to be a rechargeable battery.
• As a two channel charger, iCharger 4010 Duo has the added bonus capability of regenerative discharge over the two output channels. Allowing the user to discharge a battery on channel one and send the depleted energy to be used in a charge cycle on channel two.

64 Memory Function
iCharger 4010 Duo features 64 programmable memories. Allowing the user to pre set any numerous charge, discharge and safety settings to one of the 64 available memories. Easily and quickly recalling the settings any time, avoiding the need to constantly change the charger settings when charging different batteries or multiple battery packs in parallel.

Screen
iCharger 4010 Duo features a large TFT LCD screen that provides rich information including current, voltage, power, capacity, internal resistance, control status, charge time and much more. More data than ever before!

Servo and Pulse Test
iCharger 4010 Duo includes built in Servo test special function. Utilising the large TFT screen, the user is able to view a clear graphic display off the servos speed, senility, fixed point and much more.iCharger Servo Test function include; Linear Rest, Fixed Point Test, Speed Test and Auto CW/CCW Test.

PC Compatibility
iCharger 4010 Duo is firmware upgradable via its USB connection to a PC.
iCharger 4010 Duo supports logview software. Allowing analysis and display of charge and discharge data. This gives you an extremely accurate comparison and analysis of the battery condition and performance.

SD Card Slot
iCharger 4010 Duo features an SD car slot. Allowing user to save charge and battery data to an SD card.

iCharger 4010 Duo Overview

The iCharger 4010 Duo is the latest heavyweight addition to the iCharger range. iChargers first independent two channel charger, producing more output power than any other charger currently available! iCharger 4010 DUO can charge 10s Lipo battery backs on each channel, thats 20s at once! Producing up to 40amps per channel and featuring a large TFT screen with all state of charge battery parameters, iCharger 4010 Duo is a wonder of electrical engineering. After years of research and development, we are pleased to present the most powerful, user friendly and accurate multi chemistry charger available today.

iCharger 4010 Duo Specifications

2 x Balance Board CB1010-XH (JST) and connecting harnesses are included with this charger.

iCharger 4010 Duo Features

Safety
iCharger 4010 Duo is designed with safety as the number one priority. Numerous cut-off and safety features are offered to the user.

• Capacity Cut Off-User can set a capacity limit for a charge cycle. The charger will stop once this limit is reached, avoiding over charging of a battery. This is particularly useful for batteries that don???t display normal characteristics during normal use or charge, normally as a result of poor quality or previous damage.
• Timer Cut Off-User set timer limit will terminate the charge process once the allocated time is reached.
• Internal Temperature Cut Off - Internal temperature sensor and temperature controlled automatic cooling FAN controls the internal temperature and provides intelligent protection. When the internal temperature is over 60-(140 F), the output power is automatically reduced by 25%. If the temperature exceeds 65-(149 F) the charge cycle is stopped.
• External Temperature Cut Off-Using an external temperature sensor, iCharger 4010 Duo will stop the charge cycle if the temperature of the battery exceeds user set level.
• Cell Count - Automatically checks number of cells in a pack to see if this matches user setting before beginning any function.
• Voltage Protections - The iCharger 4040 Duo has protection for reversed polarity (input or output), as well as low input voltage.

Two Independent Channels
iCharger 4010 Duo is a two channel independent charger. The charger is capable of charging 2 separate 10s packs on each channel. That is a total of 20s! Each channel is independent and can be used for different batteries or charge / discharge cycles at once.

Power
iCharger 4010 Duo is the most powerful iCharger model. Featuring up to 40amps (1200 watts max) on each channel, or 70 amps (2000 watts max) when used synchronous mode. Synchronous mode is when both channels are wired in parallel to charge one battery pack. In this mode, the chargers total combined output current is maximum 70amsp and 2000 watts.

Battery Types
iCharger 4010 Duo can charge any type of battery chemistry. Including all popular Lithium battery chemistries (Lipo, LiFe, LiLo), Nickel Metal Hydride (NiMh), Nickel Cadmium (NiCd), Sealed Lead Acid, Deep Cycle Lead Acid, Starter Lead Acid batteries and much more.

Balance Charge Options
The iCharger 4010 Duo has a built in integrated cell balancer and can be used with three types of lithium batteries (LiPo, Lilo, LiFe). iChargers design uses accurate balancing techniques to ensure that the voltage of each individual cell is the same during charge. Other battery chargers evaluate the batterys charge state based on the total voltage of the pack, not each individual cell.
Greater control over balance charge setting. Ability to either set to start balance charging when voltage reaches a user set value, or start balancing from beginning or part way through the (Lithium) charge cycle. Feature set balance settings offer greater user control of the charge cycle.

Battery Monitoring
Unique battery monitor function. Allowing user to monitor battery voltage (per cell), temperature, power and much more, while in normal use. This is a unique function that offers options to compare battery performance, check the condition of a battery, and establish if the battery is suitable for its intended application.

Regenerative Discharge Over Two Channels

• iCharger 4010 Duo features iChargers unique regenerative discharge function. When enabled, the charger sends the depleted energy in a discharge cycle back to the power source, recharging the power source at the same time. In this mode the power source needs to be a rechargeable battery.
• As a two channel charger, iCharger 4010 Duo has the added bonus capability of regenerative discharge over the two output channels. Allowing the user to discharge a battery on channel one and send the depleted energy to be used in a charge cycle on channel two.

64 Memory Function
iCharger 4010 Duo features 64 programmable memories. Allowing the user to pre set any numerous charge, discharge and safety settings to one of the 64 available memories. Easily and quickly recalling the settings any time, avoiding the need to constantly change the charger settings when charging different batteries or multiple battery packs in parallel.

Screen
iCharger 4010 Duo features a large TFT LCD screen that provides rich information including current, voltage, power, capacity, internal resistance, control status, charge time and much more. More data than ever before!

Servo and Pulse Test
iCharger 4010 Duo includes built in Servo test special function. Utilising the large TFT screen, the user is able to view a clear graphic display off the servos speed, senility, fixed point and much more.iCharger Servo Test function include; Linear Rest, Fixed Point Test, Speed Test and Auto CW/CCW Test.

PC Compatibility
iCharger 4010 Duo is firmware upgradable via its USB connection to a PC.
iCharger 4010 Duo supports logview software. Allowing analysis and display of charge and discharge data. This gives you an extremely accurate comparison and analysis of the battery condition and performance.

SD Card Slot
iCharger 4010 Duo features an SD car slot. Allowing user to save charge and battery data to an SD card.

iCharger 406DUO Battery Charger

iCharger 406DUO, The little brother of the innovative 4010DUO 2000w charger, it bring to the table a midrange double output charging solution for the serious RC enthusiast. The iCharger 406DUO offers two 40amp outputs or combine both for a maximum 70amp output power. Allowing for many charge and discharge configurations. Parallel charge multiple lipo packs on one port while diagnosing / discharging another completely different battery on the other channel (some conditions apply).

iCharger 406DUO ads a 1amp 5v USB port for charging portable electronic devices such as mobile phones and MP3 players. Effectively creating a third charging port.

With two JST-XH balance boards thrown in for free - one for each channel - you'll be ready to go right away.

iCharger 406 Duo Features:

• The 406DUO uses advanced Synchronous buck-boost DC/DC converter technology, high power, a high current and high-performance power conversion circuit. The maximum charge power capacity is up to 1400W, the maximum charge/discharge current of a channel is up to 40A, and two channels in Synchronous Mode are up to 70A.
• Each channel supports 6s LiPo, Lilo, LiFe and NiZn batteries, with maximum 1.2A balance current, and adopts a unique balance calculation of internal resistance correction. Supports 1-20s NiMH/NiCd batteries and 1-12s Pb batteries.
• With 1A/5V USB charging port, convenient for the user to charge mobile phones and PCs.
• When the channel output connects the battery after the charger powers on, it will start automatically the anti-sparking protection.
• Intelligent fan control. Sensing internal temperature via the internal temperature sensor, to thereby control the fan speed.
• Internal temperature protection. When the internal temperature exceeds the Power Reduce temperature, the output power is automatically reduced; and the charger will shut down when temperature exceeds the Shut-down temperature.
• This charger can save 64 parameters sets and support the data import/export to SD card.
• A 2.8-inch LCD screen provides rich information including current, voltage, power, capacity, internal resistance, control status, time-consuming and temperature, etc.
• Multi-discharge features: self-discharge, regenerative to input discharge, and lithium battery extra expanding discharge.
• Supports measurement for internal resistance of battery offline and online. Can measure not only the internal resistance of the entire battery pack, but also measure the internal resistance of each cell within the lithium battery.
• The iCharger has protection for reversed polarity (input or output), input voltage/current, battery temperature, charging capacity, overrun time and maximum power etc.
• Supports upgrading the hardware program by USB port or SD card. The iCharger also supports the "Logview" software and can display, plot and analyze the charge and discharge data by it

iCharger 406DUO Battery Charger

iCharger 406DUO, The little brother of the innovative 4010DUO 2000w charger, it bring to the table a midrange double output charging solution for the serious RC enthusiast. The iCharger 406DUO offers two 40amp outputs or combine both for a maximum 70amp output power. Allowing for many charge and discharge configurations. Parallel charge multiple lipo packs on one port while diagnosing / discharging another completely different battery on the other channel (some conditions apply).

iCharger 406DUO ads a 1amp 5v USB port for charging portable electronic devices such as mobile phones and MP3 players. Effectively creating a third charging port.

With two JST-XH balance boards thrown in for free - one for each channel - you'll be ready to go right away.

iCharger 406 Duo Features:

• The 406DUO uses advanced Synchronous buck-boost DC/DC converter technology, high power, a high current and high-performance power conversion circuit. The maximum charge power capacity is up to 1400W, the maximum charge/discharge current of a channel is up to 40A, and two channels in Synchronous Mode are up to 70A.
• Each channel supports 6s LiPo, Lilo, LiFe and NiZn batteries, with maximum 1.2A balance current, and adopts a unique balance calculation of internal resistance correction. Supports 1-20s NiMH/NiCd batteries and 1-12s Pb batteries.
• With 1A/5V USB charging port, convenient for the user to charge mobile phones and PCs.
• When the channel output connects the battery after the charger powers on, it will start automatically the anti-sparking protection.
• Intelligent fan control. Sensing internal temperature via the internal temperature sensor, to thereby control the fan speed.
• Internal temperature protection. When the internal temperature exceeds the Power Reduce temperature, the output power is automatically reduced; and the charger will shut down when temperature exceeds the Shut-down temperature.
• This charger can save 64 parameters sets and support the data import/export to SD card.
• A 2.8-inch LCD screen provides rich information including current, voltage, power, capacity, internal resistance, control status, time-consuming and temperature, etc.
• Multi-discharge features: self-discharge, regenerative to input discharge, and lithium battery extra expanding discharge.
• Supports measurement for internal resistance of battery offline and online. Can measure not only the internal resistance of the entire battery pack, but also measure the internal resistance of each cell within the lithium battery.
• The iCharger has protection for reversed polarity (input or output), input voltage/current, battery temperature, charging capacity, overrun time and maximum power etc.
• Supports upgrading the hardware program by USB port or SD card. The iCharger also supports the "Logview" software and can display, plot and analyze the charge and discharge data by it

Vista Power D610AC Duo Charger

Convenience:
Charge two batteries at once. Even if they are not the same chemistry, voltage, or capacity. This charger has 2 individual charge ports and plugs directly into the wall. It also can be connected to a DC power source such as a 12V car battery or a DC Power Supply.The Charger also features LiPo Balance Charge, LiPo Storage, and LiPo Discharge modes.

High Power Output:
This charger boasts 100Watts of power per port! Most chargers such as Duratrax only offer 40Watts per channel. Some may even offer 50Watts. But this charger leaves them all in the dust, allowing your packs to charge faster! It offers a 8Amp charge rate.

Warranty:
EV-Peak offers a great 90 day warranty on their chargers. This warranty covers manufacturers defects. This warranty does not cover end-user misuse or abuse. In the event of a replacement, the customer is responsible for returning shipping to us, while we will cover the cost of shipping a replacement back to the customer.

AC Input voltage AC 110V or 240V (built in)
DC Input voltage DC 11.0V-18.0V
Charge current 0.1A-8.0A
Discharge current 0.1A-5.0A
Charge power max.100W x 2
Discharge power max. 20W x 2
Balance current max. 250mA
Balance tolerance 0.01V
NiCd/NiMH battery cell count 1-16cells
Lithium battery types Li-Po, Li-ion, Li-Fe
Lithium battery cell count 1-6series
Pb battery voltage 2V-20V
Digital Power 3V-24V
Weight 1250g
Dimensions 208 x 170 x 63mm

• D610AC Dual Charger
• AC Power Cord
• DC Power Cord
• 2x JST-XH Balance Boards
• 2x DC Power Cord Clips
• Charge Leads
  • Alligator Clips
  • Tamiya Molex
  • Bare Leads
• Instructional Manual

Combo Set (AP606 and related Adapter)
1) DC male-Crocodile Clips
2) Banana male connector wire
3) Balance Adapter Board For 4S
4) AC power cable(US/AU/EU/UK)

LiPo/LiFe/LiIon battery: 1-6 series NiCd/NiMH battery cell count: 1-16 Pb battery voltage: 2V~20V
DC Input: 11-18.0V
Charge power: max. 80W??4 DisCharge power: max. 10W??4
Charge current: 0.1-7.0A??4 DisCharge current: 0.1-2A??4
Energy transfer
DisCharge: max. 320W Balance current: max. 500mA
1)High current crocodile clips
2) Banana male-JST plug
3) Banana male-Receiver plug
4) Banana male-crocodile clips
5) Banana male-Tamiya male
6) Banana male connector wire
7) 2pcs XH Balance adapter

LiPo/LiFe/LiIon battery: 1-6 series NiCd/NiMH battery cell count: 1-18 Pb battery voltage: 2V~20V
DC Input: 11-24.0V
Charge power: max. 350W
Normal DisCharge power: max. 25W
Charge current range: 0.1~25.0A DisCharge current range: 0.1~20.0A
Energy transfer DisCharge power: max. 200W
1) Deans female-Pocket Glow Start&Receiver Plug&JST plug
2) Deans female-Crocodile Clips
3) Banana male-Deans male
4) Balance adapter board
5) High current crocodile clips

LiPo/LiFe/LiIon battery: 1-6 series NiCd/NiMH battery cell count: 1-15 Pb battery voltage: 1P~10P
DC Input: 11-18.0V
Charge power: max. 50W
Digital power: 3-24V Firmware Upgrade Available
Charge current range: 0.1~6.0A
1) DC male-Crocodile Clips
2) Banana male connector wire
3) Balance Adapter Board

LiPo/LiFe/LiIon battery: 1-6 series NiCd/NiMH battery cell count: 1-15 Pb battery voltage: 1P~10P
DC Input: 11-18.0V
Charge power: max. 50W
Digital power: 3-24V Firmware Upgrade Available
Charge current range: 0.1~6.0A
1) DC male-Crocodile Clips
2) Banana male connector wire
3) Balance Adapter Board

Special features:

- 32 Bit Mcu
- Powerful Heat Sink
- Advantage Synchronous Rectification Technology
- USB Charging Port 5V/1A
- Software Upgrade Available
- Digital Power
- Discharge@ Energy Transfer Mode.max. 1000W
- Balance Current Up To 1ADC Input voltage range DC 11.0V?32.0V
Charge current range 0.1A?40.0A
Discharge current range 0.1A?40.0A
Charge power limited Input<24V:500W / Input>24V:1000W

Discharge power limited max.120W(max.5A)

Energy transfer discharge max.1000W
Balance socket charge current 1.0A
Balance tolerance ±0.01V
NiCd/NiMH battery cell count 116cells
Lithium battery types Li-Po, Li-ion,Li-Fe
Lithium battery cell count 1-6series
Pb battery voltage 2V20V
Digital Power 3V24V

Weight 1520g

Dimensions 148*167*78mmIncludes:
1 x charger
1 x conversion cable
1 x charging adapter
2 x Pb battery clips

LiPo/LiFe/LiIon battery: 1-6 series NiCd/NiMH battery cell count: 1-16 Pb battery voltage: 2V~20V
DC Input: 11-18.0V
Charge power: max. 80W2 DisCharge power: max. 15W2
Charge current range: 0.1~8.0A DisCharge current range: 0.1~5.0A
1)High current crocodile clips
2) Banana male-Tamiya Plug
3) Banana male-crocodile clips
4) Banana male connector wire
5) Balance adapter board

LiPo/LiFe/LiIon battery: 1-6 series NiCd/NiMH battery cell count: 1-15 Pb battery voltage: 2V~20V
AC Input: 100-240V DC Input: 11-18V
charge power: max. 50W Discharge power: max. 5W Charge current range: 0.1~5A Discharge current range: 0.1~1A Balance current: max. 300mA
1) AC power cable
2) DC male-Crocodile Clips
3) Deans female-Pocket Glow Start&Receiver Plug&JST plug
4) Deans female-Crocodile Clips
5) Banana male-Deans male
6) Balance adapter board

AK840 1000W charger

1200W power supply optional!

AK840 1000 Watt Charger
4 in 1 Balance board for JST XH, Thunder Power, Kokam, and Hyperion Balance Taps.
12V Clamps for pb battery power
Various Charge Cables
Stylus
Instruction Manual
1 Year Warranty

Special features

32 Bit Mcu
Powerful Heat Sink
Advantage Synchronous Rectification Technology
USB Charging Port 5V/1A
Software Upgrade via Download
PC Graphing/Viewer Software via Download
Digital Power
Discharge@ Energy Transfer Mode max. 1000W
Balance Current Up To 1A
High rate charge
Touch screen
Intelligent UI

DC Input voltage range DC 11.0V-32.0V
Charge current range 0.1A-40.0A
Discharge current range 0.1A-40.0A
Charge power limited Input<24V:500W / Input>24V:1000W
Discharge power limited max.120W(max.5A)
Energy transfer discharge max.1000W
Balance current 1.0A
Balance tolerance-0.01V
NiCd/NiMH battery cell count 1-22cells
Lithium battery types Li-Po, Li-ion,Li-Fe
Lithium battery cell count 1-8series
Pb battery voltage 2V-32V
Digital Power 3V-36V
Operation system Graphical display

Weight 1520g
Dimensions 148*167*78mm

LiPo/LiFe/LiIon battery: 1-6 series NiCd/NiMH battery cell count: 1-15 Pb battery voltage: 2V~20V
AC Input: 100-240V DC Input: 11-18V
Charger power: max. 80W Discharge power: max.10W Charge current range: 0.1-6A Discharge current range: 0.1~2.0A Balance current: max. 300mA
1) AC power cable
2) DC male-Crocodile Clips
3) Deans female-Pocket Glow Start&Receiver Plug&JST plug
4) Deans female-Crocodile Clips
5) Banana male-Deans male
6) Balance adapter board

The Q6400AC is a beast of a multi-charger and is one of our favorites to recommend to modellers!

What makes this charger so popular? Here are a few of our reasons:

• It packs 100 watts of power per port and does not require an external power supply like most of the chargers in this output range while still in a relatively compact size.
• Power Mode! Selectable power output from 3-24v and .1-10a to test electrical equipment.
• Menus are easy to navigate and offer a unique capacity setting that automatically changes the power to accommodate 1C charging (Higher than 1C can be chosen as well)
• Balance port pins are supported with a plastic housing which makes it much easier to insert the plug instead of bending. Also locks positively into place.
• No earmuffs required! The 2 internal fans are not annoying or out of balance at high rates of charge.
• Full, 1 Year Warranty

Additional Features:

1. Creates a safe charging condition and minimizes the danger caused by negligence and user setting errors.
2. High efficiency, up to 90%.
3. Accepts all types of R/C batteries: LiPO/LiFe/NiMH/NiCd/Pb.
4. Easy to operate.
5 .It can monitor and balance each cell of the pack individually ( tolerance ±0.01V).
6. Accepts individual battery charging/discharging. Various charging modes to meet different requirements.
7. Performs 1-6 cycles of charge>discharge or discharge>charge continually for NiMH/NiCd refreshing

Specifications:

• AC Input voltage: 110or220V
• DC Input voltage: 11-18.0V
• Charge power max: 100W*4
• Discharger power max: 10W*4
• Charge current range: 0.1-10.0A
• Discharge current range: 0.1-2.0A
• NiCd/NiMH battery cell count: 1 - 15cells
• LiPo/LiLo/LiFe battery cell count: 1 - 6series
• Pb battery voltage: 2 V - 20V
• Dimensions: 243*191*67mm
• Weight: 1750g

GT Power labelled many brands on the market. This is popular one by their own name.

The G.T. Power C607D charger is a simple yet powerful dual input multifunctional charger with built in LiPo balancing (JST-XH) for up to 6S Lithium batteries. It is packed with features that exceeds many higher cost units. Primarily designed for Lithium Polymer (LiPo, Li-Poly) batteries, it can also charge Li-Ion, Li-Fe (A123M1), Ni-Cd, Ni-MH, and Pb (lead acid) batteries.

Features

1. Capacity Limit

2. Maximum safety

3. Temperature monitoring

4. Input power monitoring

5. Easy to program buttons

6. 5 battery memory

7. Individual cell monitoring

8. 2-Line Back lit LCD display

9. Built in Balancer to 6S packs

10. Cycle charging/discharging

11. Includes "FAST" & "STORAGE" Li-xx program

Product Details

1. Output 80W

2. Discharge 5W

3. Balancing current 300mAh/cell

4. Operating input voltage : 10 - 18V DC or 100-240V AC

5. Ni-Cad / Ni-MH : 1 - 15 Cells

6. Li-Ion / Li-Po / Li-Fe : 1 - 6 Series

7. Charge current : 0.1 - 7.0A

8. Discharging current: 0.1 - 1.0A

9. PB / Lead Acid : 2 - 20V

10. Built in Cell Ballancer : Up to 6S (series) Li-Po (JST-XH connectors)

11. No. of Cycles : Up to 5 Cycles

12. Weight : 400g

13. Dimensions : 136mm x 127mm x 56mm

Includes

1 x Charger 1 x Alligator Clips to DC Cable 1 x Alligator Clips to Dean style connector 1 x Mini JST (red) connector to Dean style connector cable 1 x Female servo connector to Dean style connector cable 1 x Glow plug connector to Dean style connector cable 1 x 4mm banana connectors to Dean style connector cable 1 x Mains "kettle" lead with AU plug 1 x Manual

Warranty:

Austars offers 90 days warranty for this charger. This warranty covers manufacturers defects. This warranty does not cover end-user misuse or abuse. In the event of a replacement, the customer is responsible for returning shipping to us, while we will cover the cost of shipping a replacement back to the customer. The customer needs to provide original invoice and tell us how you operate and connect the charger.

iCharger 308Duo

This charger MUST be used with a stable power supply, it is not recommended to be used with an automobile as a power source, or using multiple server power supplies in series as a power source

This dual port charger with a color LCD screen allows charging different batteries up to 30A, or up to 50A in synchronous mode. iCharger 308 Duo is a little brother of the popular and extremely powerful iCharger 4010 Duo. Instead of charging 10S batteries up to 40A, iCharger 308 Duo can handle up 8 cell LiPo packs up to 30A. These two chargers share the same operation interface and extra functions, such as battery internal resistance measurement, servo test, and pulse test. The charge and discharge data can be stored in a micro SD card that can be read with Logview on a PC. Eventhough with a high output power ability of 1300W, 30A, and dual ports, iCharger 308B retains f iCharger's reputation in making compact and powerful charge stations. Need flexibility in your charging? Nothing beats the convenience of a dual-port charger. Two independent charging channels in one compact unit lets you simultaneously work with batteries of different cell count , charging at up to 30A simultaneously - or if you want to go all out, combine the two channels and charge at up to 50A!

With two JST-XH balance boards thrown in for free - one for each channel - you'll be ready to go right away.

Specifications

• Input voltage range: 10-30V DC
• Input current limit: Total = 60A, Ch1/2 = 40A
• Maximum charge power: 1300W at >23.5V (800W max. per channel)
• Charge current range: 0.05-30.0A per channel, or up to 50A in synchronous mode
• Discharge power: 80W per channel, or up to 120W in synchronous mode
• Maximum regenerative discharge: 800W per channel, or up to 1300W in synchronous mode
• Maximum external discharge: 1050W per channel, or up to 2100W in synchronous mode
• Current drain for balancing: 1.2A per channel, or up to 2.4A in synchronous mode
• USB charging port: 5V/1A current limiting protection 1.2A
• Balance accuracy: 10mV
• LiPo/LiIo/LiFe: 1-8 series per channel
• NiCd/NiMH battery cell count: 1-25 series per channel
• Pb battery cell count: 1-18 series per channel
• PC Connectivity: USB port
• Weight: 910g
• Dimensions (LxWxD): 171x118x59 mm
• Warranty: 1 year

AUSTARS MODEL is proud to introduce the EV-Peak D622-Pro DC Dual Port NiMH and LiPO Battery Charger. Charge two batteries at once even if they are not the same chemistry, voltage, or capacity via the two individual charge ports. This easy to use charger is sure to impress with features including durable housing, LCD display, and adjustable charge and discharge rates. Also features; microprocessor controlled delta-peak sensitivity, individual cell balancing of LiION, LiPO and LiFE, NiCD and NiMH capable, large range of charge currents, storage function, time limit function, and input voltage monitoring. Regardless of what batteries you use the D622-Pro has you covered and will charge NiCD, NiMH, LiPO, LiLO, LiFE, and even gel cell batteries. Includes Alligator Clips, Banana Male to Alligator Clips, Banana Male to Tamiya Male, Banana Male Connector Wire, XH Balance Adapter (2pcs), USB Cable, and PC Monitor CD.

Specifications:

• LiPO/LiFE/Li-Ion Cell Count: 1-6 Cell
• NiCD/NiMH Cell Count: 1-18 Cell
• Pb Battery Voltage: 2-20V
• Charge Current: 0.1-10A
• Discharge Rate: 0.1-5A
• Circuit Power: 200W X 2
• Power Supply Required: Requires DC Input of 12-18V
• Age Rating: 14+ With Adult Supervision
• Input: DC: 12-18V
• Display Type: LCD
• Length: 7.9 in (201mm)
• Height: 6.9 in (175mm)
• Width/Diameter: 2.9 in (73mm)

It is a quad DC charger, it could charge four packs of batteries at the same time and disply data of each port singly.

With four independent output port and in temp. port you could connect charger and PC with USB software kits to monitor battery performance.

With 11-18V DC input and two cooling fans, could advoid charger over heat.

• Create a safe charging condition and maximum reduce the danger caused by negligence or setting error of user.
• High efficiency up to 90%.
• Accept all types of R/C batteries: LiPO/LiFe/NiMH/NiCd/Pb.
• Easy to operate.
• It can monitor and balance each cell of the pack individually ( tolerance ±0.01V).
• Accept individual battery charging/discharging.
• Various of charging mode to meet different demand.
• It can store and load maximum five data of different batteries.
• Perform 1-5 cycles of charge>discharge or discharge>charge continually for NiMH/NiCd refreshing
• PC program, you can analysis the characteristic of the battery by USB port.

Specification:
DC Input voltage: 11-18.0V
Charge power: max. 50Wx4
Discharge power: max.5Wx4
Charge current range: 0.1-5.0A
Discharge current range: 0.1-1.0A
Balance tolerence: ±0.01V
NiCd/NiMH battery cell count: 1 - 15 cells
LiPo/LiLo/LiFe battery cell count: 1 - 6 series
Pb battery voltage: 2 V - 24V
Digital Power: 3V - 24V

Includes:
charger Q6,
adapters set,
set of cables,
removable terminals of the "crocodile",
manual.

Q 6320AC (Power Supply included)

Convenience:
Charge FOUR batteries at once! Even if they are not the same chemistry, voltage, or capacity. This charger Q6320AC has 4 individual charge ports and plugs directly into the wall. It also can be connected to a DC power source such as a 12V car battery or a DC Power Supply. The Charger also features LiPo Balance Charge, LiPo Storage, and LiPo Discharge modes. Q6320AC features built-in AC power, not like few other brands, you need to buy an extra AC power.

High Power Output:
This charger boasts 80Watts of power per port! Most chargers only offer 50Watts per channel. But this charger leaves them all in the dust, allowing your packs to charge faster! It offers a 7Amp charge rate!

Warranty:
Vista power offers a great 90 day warranty on their chargers. This warranty covers manufacturers defects. This warranty does not cover end-user misuse or abuse. In the event of a replacement, the customer is responsible for returning shipping to us, while we will cover the cost of shipping a replacement back to the customer.

AC Input voltage AC110V or 220V
DC Input voltage range DC 11.0V-18.0V
Charge current range 0.1A-7.0A
Discharge current range 0.1A-2.0A
Charge power limited 80W x 4
Discharge power limited 10W x 4
Balance current max.500mA
Balance tolerance -0.01V
NiCd/NiMH battery cell count 1-16cells
Lithium battery types Li-Po, Li-ion, Li-Fe
Lithium battery cell count 1-6 series
Pb battery voltage 2V-20V

• Q6320AC 4 Port Charger
• AC Power Cord
• DC Power Cord
• 2x JST-XH Balance Boards
• 2x DC Power Cord Clips
• Charge Leads
  • Alligator Clips
  • Futaba/Rx
  • JST
  • Bare Leads
• Instructional Manual

Vista-Power Warranty

Microprocessor controlled

Delta-peak sensitivity
Individual cell balancing
LiIo,LiPo,LiFe,NiCd and NiMH capable
Large range of charge current
Store function
Time limit function
Input voltage monitoring
Battery cycling
Automatically charging function

Specifications:

AC Input voltage: AC 100V ? 240V
DC Input voltage: DC 11.0V?18.0V
Charge current: 0.1A?10.0A
Discharge current: 0.1A?5.0A
Charge power: max.90W
Discharge power: max.20W
Balance current: max.350mA
Balance tolerance: ±0.01V
NiCd/NiMH battery cell count: 1?16cells
Lithium battery types: Li-Po, Li-ion,Li-Fe
Lithium battery cell count: 1-6series
Pb battery voltage: 2V?20V
Digital Power: 3V?24V
Operation system: Graphical display
