• High-concerned chemical

  None
  Is Electric

  Yes
• Quantity

  1 pcs
  Is it battery/power supply

  N
• Is it charger/adapter

  N
  Is Batteries Included

  No
• For Vehicle Type

  Airplanes
  RC Parts & Accs

  Transmitters
• Material

  Carbon Fiber
  Brand Name

  jongkhurun
• Origin

  SK(Origin)
  Recommend Age

  14+y
• Use

  Vehicles & Remote Control Toys

• Description

Ground Station Box
	Box type	military three-proof safety box
	Cover size	length 968MM * width 406MM * height 155MM
	Overall weight	20KG
	Shell material	PVC composite
	Protection level	IP56
	Operating temperature	-10 ° C to 60 ° C
	Color Type	Matt Black or military Green
	Portable features	ready to use, open handle, built-in drawbar
	Operation panel
	Panel material	3K Carbon Fiber Plate
	Interface support	USB * 6, RS232 * 1, DC IN, 2 x HDMI, 1 x RJ45
	Antenna interface	8 x (Support N, SMA, TNC 3 in1 compatible mounting interface)
	Custom Switch	2 x 3 stage lever, 2 x 2 stage lever , 2 x knob, 6 x switch button
	Switch parameters	Main power, PC power supply, link power supply
	other devices	Industrial cooling fan, warning lights x 4
	Industrial control host
	processor	I5 6400T
	operating system	Windows 10 Installed (can select Window 7 or Windows 8
	RAM	8G DDR4 Wired Intel I219LM Card & Wireless 802.1ac Card & HD Graphic card installed
	hard disk	128G solid state
	I / O interface	HDMI OUT, 4 x USB 3.0, 2 x RJ45, Audio plug
	Left and right dual displays
	size	2 X 17.3” 1920 X 1080 LED Screen
	Interface for Video link	HDMI/SID/FJ-45 (Video link not included, can be PNP plug and play
	Interface for Data link	USB/RS232/RJ45 (Data link not included, can be PNP plug and play
	Backlight type	LED
	Maximum brightness	1000nit (automatic induction adjustment)
	input interface	HDMI IN/VGA/SID/AV
	Remote control function (RC transmitter NOT INCLUDED)
	PTZ rocker	Control the PTZ's pitch, direction, etc.
	Lever	Visible light infrared switching, throwing, ranging, mode, etc.
	Knob	Zoom, exposure, etc.
	button	Take photos, videos, return to center, track, record, picture-in-picture, etc.
	Frequency	915MHz Signal Control distance FCC60km CE40km. 2 x 3-Axle Hall Gimbals Rocker
	Battery & Power
	Display content	Current voltage, current, current remaining capacity, power, etc.
	Management system protection	Over current protection, over voltage protection, low voltage protection, over capacity protection, over power protection
	Battery protection	Over current protection, over temperature protection, over voltage protection, low voltage protection
	Life time	4-8 hours battery life

PRODUCTION NEEDS 2-3 WEEKS, FOR CUSTOMISED HARDWARE, CONTACT TEAM AUSTARS TO GET 24/7 SUPPORT

UAV GCS005 Ground station is a compact and convenient solution for ALL drones. It features a professional layout and functions. The GCS005 ground station can realize the functions like l, data transmission and video transmission etc. And all theses functions can be controlled separately.

The ground station is equipped with a 15.6 inch bright daylight monitor (can be upgraded to 21.5"), which is used for checking onboard video. You also can set the contrast, brightness and other functions by the buttons on the ground station.

The ground station is built in keyboard and supports all the functions of the controller of all drones's software) & a 20000mah/11.1V Lithium battery for 3-5 hours operation time. You also could link a charger from your car, so that you can use the ground station without any time limit.

WIFI 300M CARD INTEGRADED

Specifications:

Dimensions: 460x650x180mm
Operating temperature: -20°C to +60°C
Case features: Rugged plastic case, carry handle,pressure purge valve
Battery type: Lipo Battery
Battery capacity:3s 20000mAh
Battery operation time: 3 hours
DC power output: 12V
Display: 15.6 inch monitor,10 inch touching screen. 21.5" Optional to upgrade

Standard Computer system:

• I5 Processor
• 8G Memory Card
• 128G Hard disk
• Windows 7 System
•

• The system/package does not include any DJI drones. Production for the system integration needs 2 weeks time.

Ground devices consist of: 28" Screen version (viewable under strong sunshine) or 2 x 10" Screen version

Radio & image transmission: remote control link 40km, radio communication 30-100km, high-definition image transmission 10-50km

• Product parameters:Ground station box:
• Cover size: length 73CM*width 50CM*height 32CM.
• Overall weight: 25KG.Shell material: polypropylene composite material.
• Protection level: IP67 dustproof and waterproof.
• Working temperature: -10°C to 50°C.Color Type: Matte Black/Army Green/Orange
• Portable features: open the lid and use it, close the lid for three-proof transportation, built-in pull rod.
• Operation panel:Panel material: 3K carbon fiber.
• Interface support: USB/HDMI/SDI/AV/PPM/RJ45/NGA/RS232/DC.
• Joystick equipment: professional simulation flight controller.
• Number of throttles: 1.Number of keycaps: 5 buttons, 1 thumb switch, 1 safety switch, 2 eight directions Cap switch, 1 mode selection switch.
• Antenna: 4 SMAs on the upper panel and 3 SMAs on the lower panel or two N-head male sockets.
• Other equipment: industrial cooling fans, waterproof metal button switches, equipment indicator lights.
• Switch parameters: main power supply, PC host, image transmission system, remote control system.
• Display distribution: dual HDMI display on the same screen, picture-in-picture display, master and slave switch.
• Remote control system:Working frequency: 2.4GHz
• Joystick equipment: professional simulation flight controller
• Number of throttles: 2
• Number of keycaps: 44
• Maximum signal effective distance: 2.4gFCC 7km, CE 4km, 433FCC 60km, CE 40km
• Transmitting power: 600mw-2w
• Human interaction device: joystick
• PC host parameters:Processor: intel I5- 5500uMemory: 4GB DDR4 2133mhz
• Hard disk: 128G SSDChipset: Intel 100; Q170
• Interface: HDMI output USB2.0 external 2 USB3.0 displayPort ports RJ-45 audioNetwork card: Intel I219LM Gigabit Ethernet wired network cardIntel dual-band wireless 8260 (802.11ac)
• Main displaySize: 28 inches
• Resolution: 1080*1920 Screen ratio: 16:9 Backlight type: LED Maximum brightness: 1040 unit ultra-high brightness
• Support format: 1080p full HD
• Input interface: HDMI/VGA/AV/SDI
• Color standard: RGB Display distribution: dual HDMI display on the same screen, picture-in-picture display, master and slave switch
• Image transmission: HD 10KM supports 1080P datalink: 900+ (Built in or PNP your own)

• Package list:
• 1. The main body of the ground station
• 2. 2.4G 12-CH receiver
• 3.433 receiver
• 4. Complete antenna
• 5. PPM output line
• 6. Power adapter
• 7. Video output line
• 8. Power output line

2 X Videolink RX END BUILT IN to receive two video outputs and one screen with PIP function and PIP function for one screen with Video interface & Autopilot interface.

1 X VideoCard. Frequency for video link: CH1: 5705 CH2: 5685 CH3: 5665 CH4:5645 CH5:5885 CH6:5905 CH7: 5925 CH8: 5945

Size/dimension: 73 x 50 x 35 cm 23kg Support : Multiroter/Fixedwing/Vtol/Robot/Gimbal controls. Datalink & Videolink: RC link (40km with RF amplifer built in or PNP your own) Datalink: 30-100km (PNP your own datalink), Video Link 10-50km built in or PNP your own)

Production time: 2-3 Weeks for technical support contact Teamaustars via WhatsApp +610433000015

Harddisk and Memory Disk in 120GB/4GB is standard, if the upgrade in demand, send us an email austarsmodel@gmail.com or 24/7 WhatsApp +61043300015 for support and service. Production needs 2-3 weeks for system integration and testing.

UAV Ground Station GCS0013
Case Model	Pelican case
Dimensions	Length 49 x 39 x 19 cm
Weight	12.5KG
Materials	Makrolon
Level of Protection	IP67 (Closed cover)
Operating Temp	-10°C to 60°C
Colour	black or Military Green
Portability	Handle
Battery Life	>4 Hours
Operation Panel
Materials	Carbon fiber
Connector	USB*2; RJ45*2; RS232; DC IN; 12V OUT.
Antenna	Three SMA's at the top of the screen PNP
Human-Interactive	15.6" touch screen
Mains Button	Main power;
Other Devices	Cooling system; Powersystem; Indicator LED
Controller	Joystick*3 for gimbal
Video Link Port	HDMI,RJ45 1080 PNP
Voltage	12v

Ground devices consist of:

PC of the ground station mainly details is i7 CPU, 4G/128G SSD, support extend SATA hard disk, can also save the drone data and flight diary.

Production time: 2-3 Weeks for technical support contact Teamaustars via WhatsApp +610433000015

Ground Station Box
	Box type	military three-proof safety box
	Cover size	length 600MM * width 450MM * height 270MM
	Overall weight	18KG
	Shell material	PVC composite
	Protection level	IP67
	Operating temperature	-10 ° C to 50 ° C
	Color Type	Matt Black or military Green or Orange
	Portable features	ready to use, open handle, built-in drawbar
	Operation panel
	Panel material	3K Carbon Fiber Plate
	Interface support	USB * 6, RS232 * 1, DC IN, 2 x HDMI, 1 x RJ45/VGA/PPM/SDI
	Antenna interface	4 x (Support N, SMA on the top of the Screen or 3 x SMA)
	Custom Switch	7+3
	Switch parameters	Main power, PC power supply, link power supply
	other devices	Industrial cooling fan, warning lights x 4
	Industrial control host
	processor	I7
	operating system	Windows 10
	RAM	4G DDR3 Wired Intel I19LM Card & Wireless 802.1ac Card & HD Graphic card installed
	hard disk	128G solid state
	I / O interface	HDMI OUT, 4 x USB 3.0, 2 x RJ45, Audio plug
	Left and right dual displays
	size	21.3 inches 2048 x 1536 LED 16:10 HDMI/DIP Display (PIP)
	Interface for Video link	HDMI/SID/FJ-45 (Video link not included, can be PNP plug and play
	Interface for Data link	USB/RS232/RJ45 (Data link not included, can be PNP plug and play
	Antenna for Video Link	2 x SMA on the top of the screen
	Maximum brightness	1000nit (automatic induction adjustment)
	input interface	HDMI IN/VGA/SID/AV
	Remote control function (RC transmitter NOT INCLUDED)
	Frequency	2.4GHz Signal Control distance FCC7 km CE4km.
	Battery & Power
	Display content	Current voltage, current, current remaining capacity, power, etc.
	Management system protection	Over current protection, over voltage protection, low voltage protection, over capacity protection, over power protection
	Battery protection	Over current protection, over temperature protection, over voltage protection, low voltage protection
	Life time	4-8 hours battery life

Ground devices consist of:

host*1, 30AH battery*1, right hand metal joystick*1, 24V power adapter*1, external power output cable*1,

simulate aviation plug cable*1,trainer aviation plug cable*1, LCD remote controller*1, FHD FPV remote controller*1, 900MHz antenna*1, 433MHz antenna*1, 650MHz antenna*1, 2.4GHz antenna*1.

Onboard devices accessories:

16 CH Remote controller receiver*1, receiver 433MHz antenna*1, data receiver*1, data receiver 900MHz antenna*1, data transmitter*1, data transitter 650MHz antenna*1,2.4GHz antenna*1data power 3S battery*1.

PC of the ground station mainly details is i5 CPU, 4G/128G SSD, support extend SATA hard disk, can also save the drone data and flight diary.

Production time: 2-3 Weeks for technical support contact Teamaustars via WhatsApp +610433000015

Left and right dual-screen portable computer, based on Core I7-6700T high-performance CPU, 1050 discrete graphics card 4G memory, one machine with dual screens, you can choose to fold left and right, silicone waterproof keyboard, built-in lithium battery, internally produced custom joysticks, and a wide range of buttons. Used in various industrial fields such as communication command, UAV ground station, man-machine interface, etc.

Product specifications

*System parameters

Processor: Intel I7-7700T

Lithium battery: battery life at room temperature 2-3 hours

Memory.: 16GB/DDR4 memory

Disk: 512G SSD

*LCD screen

Display type: 2*15.6" FHDTFT LCD

Maximum resolution: 1920*1080

Display area: 344.16* 193.59mm

*I/O interface

Network port: 2

USB: 4 USB3.0 ports

HDMI: 1

Aviation plug: 2 (1* LAN/1*RS232)

Power input: DC 19V

*Button

Numeric keyboard: 1

Custom buttons: 8

Joystick: 3

Self-locking switch: 4

Knob: 1

*Environmental parameters

Working temperature: -15~60°C

Storage temperature: -55~70°C

*Institutional parameters

Material: Aluminum alloy material

Colour: Black

Weight: 11.5KG

Overall size: 427.6*332.5*113.3 (including corner protection)

*Operating System

Windows 10

Experience Unmatched Control with the T50 Dual Screen UAV Ground Control Station

Unlock the full potential of your UAV with the revolutionary T50 Ground Control Station (GCS). This all-in-one solution redefines drone control by seamlessly integrating cutting-edge technology for an unparalleled experience. Let’s delve into the key features that make the T50 drone GCS a true game-changer.

Elevating UAV Control with the T50 GCS

The T50 GCS boasts a highly integrated, all-in-one design housed in an Industrial Pelican Box, weighing a mere 15KG. Running an Intel Core i7 12650U with 32GB RAM, this lightweight marvel ensures both portability and durability, setting a new standard for UAV ground control.

Elevate Your UAV Operations with the T50 GCS Dual-Screen Experience

Take command with precision using the T50’s versatile joystick system, allowing you to tailor your flying experience with customizable settings that put you in control like never before. Immerse yourself in the action on the 17-inch 1280×1024 high resolution and 1000nit high brightness industrial anti-glare displays with a 10-finger capacitive touch screen, offering crystal-clear visuals and responsive touch controls for seamless operations.

Dual Screen GCS Maximizes Operational Efficiency

Stay powered on the go with the T50’s internal battery and its support for external power supply and hot-swappable capability, ensuring continuous operation without missing a beat. The unit has a 30000mAh internal battery and can work up to 3 hours when fully charged. Experience innovation at your fingertips with domestically pioneering soft key settings, streamlining your operations effortlessly.

Elevating Connectivity with the T50 GCS

Connectivity is key, and the T50 GCS delivers with support for external HDMI input, providing flexibility in equipment choices and compatibility with most devices on the market. For those who prefer traditional controls, the T50 GCS has you covered with support for traditional RC input, catering to a wide range of user preferences.

Elevating Drone Operations with Unmatched Reliability

Don’t let environmental factors hinder your drone operations. The T50 GCS boasts a dust and waterproof design, ensuring reliability in various conditions. Tailored for professionals, the T50 GCS features a dual-screen setup, an Industrial Pelican Box, and a long-range video link, making it the smart choice for serious operators ready to elevate their drone control experience to new heights.

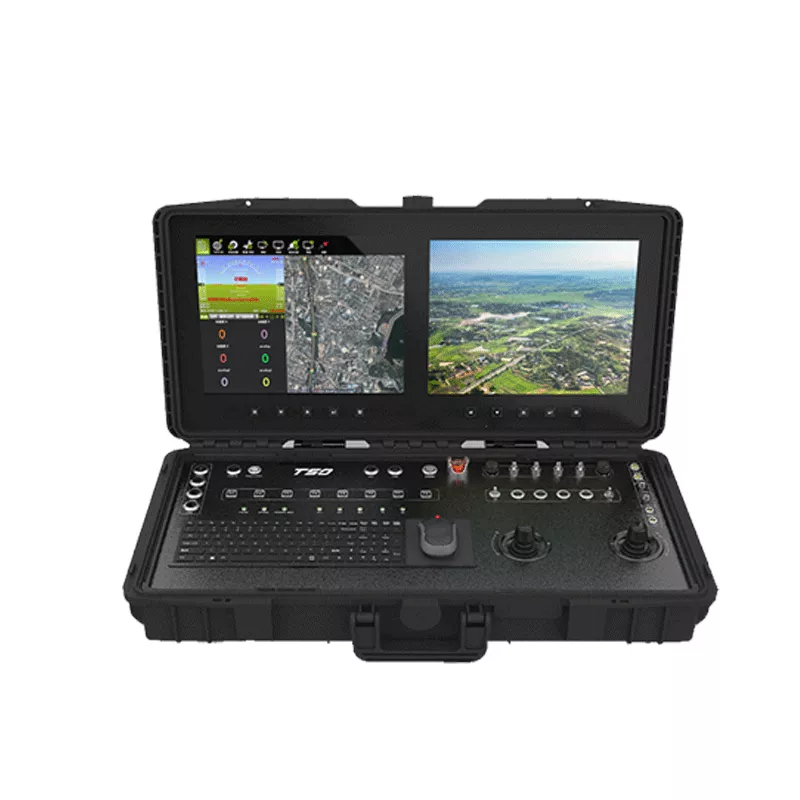

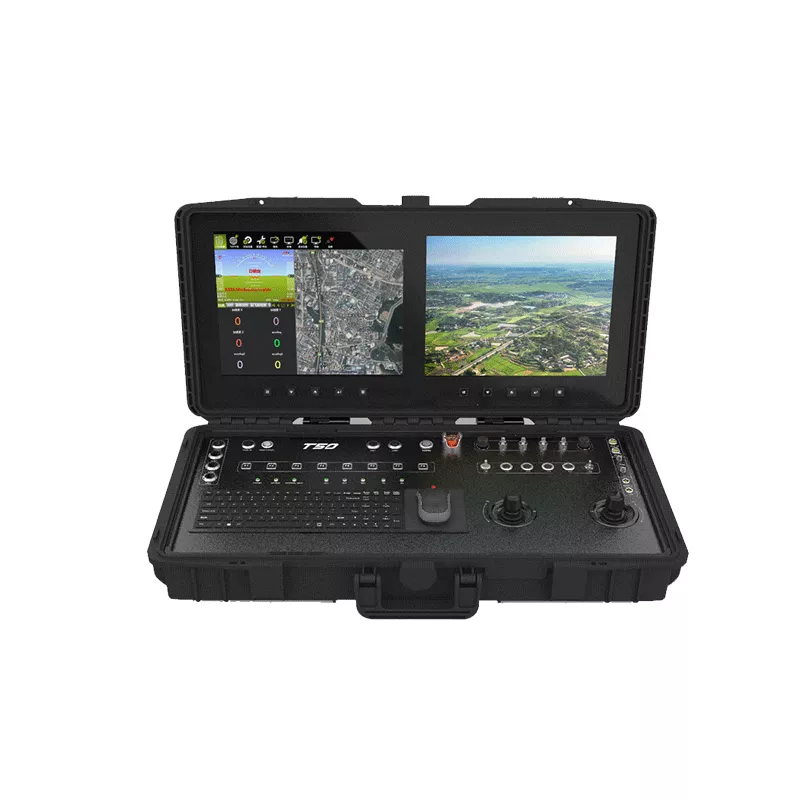

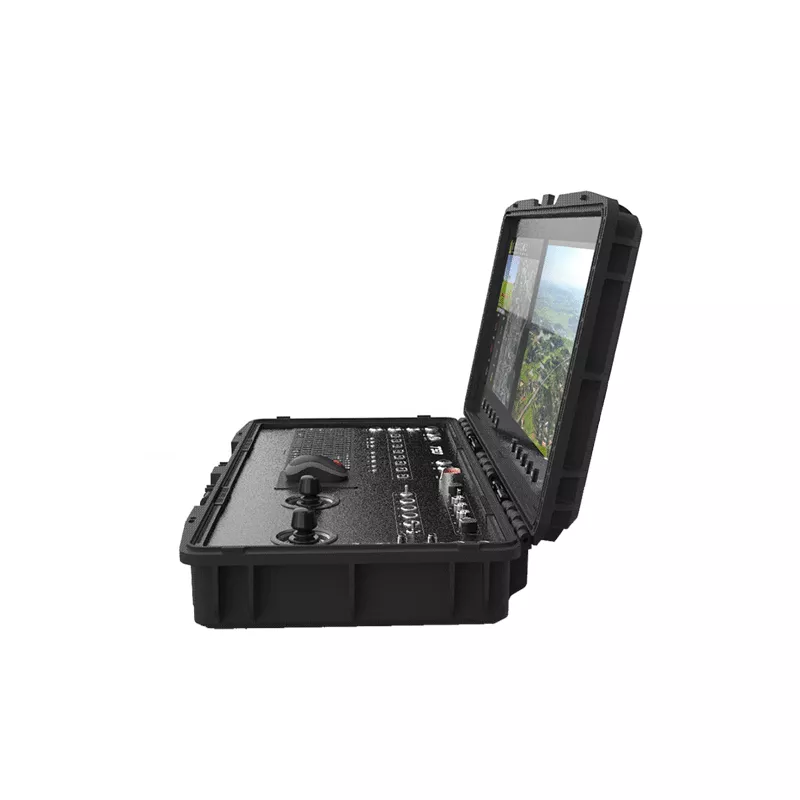

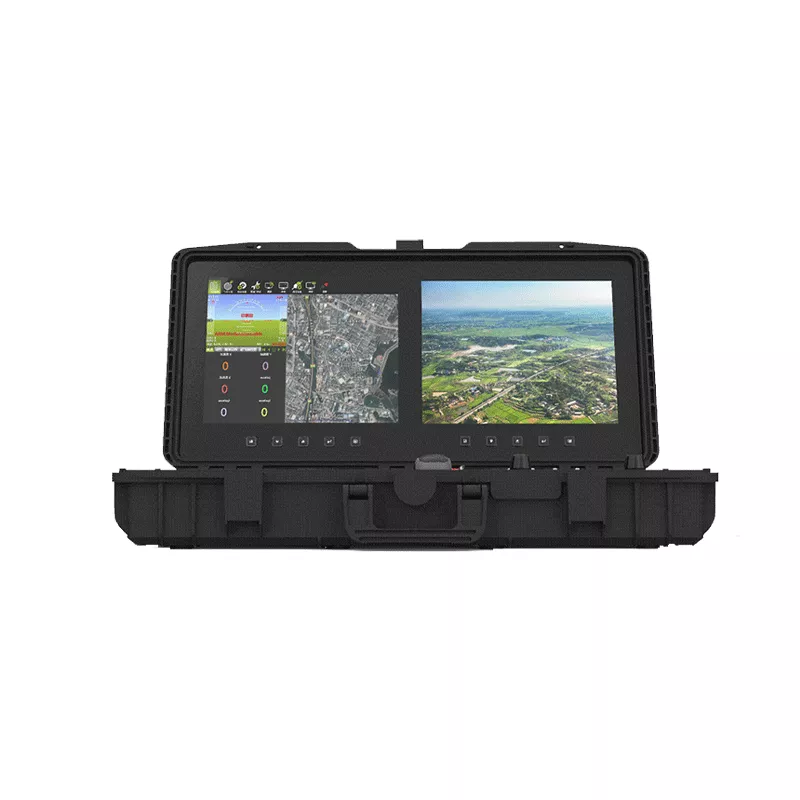

T50 Dual Screen Drone Ground Station,This exciting ground station features dual 17" HD displays with 1,000 brightness and a touch capacitive screen for a great control experience. Built-in high performance with i7 12-core CPU, 32GB RAM, and 1TB storage allows you to process data with less effort.

With a focus on the user experience, we've given you 27 physical channels and two telescopic master telepods, and the freedom to edit the channel settings to ensure precision in every manoeuvre. This is not only a technological leap forward, but also a respect for the operator.

With built-in digital transmission links up to 150KM, the T50 ground station offers a wider range of coverage for your missions. We easily support the integration of friendly links, breaking traditional constraints and offering more possibilities for your missions.

In this era of technology, T50 will create the future together with you, and open up an unprecedented technological journey for you. Whether you are a professional pilot or a beginner, the T50 ground station will be your drone in the palm of your hand, helping you to master the sky and create infinite possibilities! Stay tuned and soar into the future with T50!

Features

Robust Computing Power

Equipped with an INTEL i7 1260PCPU, ensuring exceptionalprocessing power and multitaskingcapabilities

Precise Control

Features retractable three-axis joystick with hall-effect, providing a precise control experience.

Highly Integrated System

R&D totally in-house, our components stand out from the simple connections of off-the- shelf parts used by other manufacturers, ensuring superior compatibility and reliability

Precision Switch

Multi-segment switches with freely definable attributes

Innovative Damping Design

Breaks away from traditional

support rod solutions, it delivers

a more stable support structure.

Enhanced Security

Increased security with protective caps on buttons, improving device safety and

resistance to damage.

Multifunctional Keyboard

Keyboard can be with a mouse for

additional control options, enhancing

user convenience.

Multi-Interface Design

Device supports multiple interfaces, allowing easy adaptation to our video links and third-party devices, expanding device applicability.

From Hex and ProfiCNC, the team who brought you Pixhawk and The Cube GPS system, comes an all-in-one solution for long-range HD video transmission. The Herelink HD Digital Video Transmission System.

This 2.4GHz radio controller with built-in screen allows users to get long range HD video, telemetry, and control link up to a whopping 20km. It uses the 2.4GHz band on LTE over WIFI. This allows maximum transmission distance. Purported to have a range of 20km in FCC and 12km in CE.

The large 5.5″ screen displays a multitude of control options such as live images, autopilot configuration through the native QGround control or other GCS applications based on the Mavlink system.

The Air Unit uses between 5-12v input power and has a single UART for connection to the flight controller or other Mavlink accessories. Both the Air Unit and the Radio Controller are equipped with powerful Pinecone S1 processors with 4 cores at 2.2GHz and 4 more additional cores at 1.4GHz. This allows for tons of possibilities for app usage and future development.

Drone T30 Handheld FPV Ground Station 10.1inch Touch Screen

Features:

• - Multi-mode Joystick: Optional American, Japanese, and Chinese style
• - Large Screen: 10.1 Inch touch screen featuring high definition
• - Longer Duration Time: Its electricity is up to 9000mAh; and it can be connected with external batteries (Battery is not included in this package)
• - Upgraded Processor: There are premium i5, i7 processor for you to choose

T30 Specifications:

• - Channel: 22-CH
• - Communications Frequency: 840MHz/900MHz (Optional)
• - Effective Distance: 5-30km for R20 Receiver; 3-7km for V20 Receiver; 10-20km for V30-10km Receiver (Depends on the environment)
• - RF Power: 1W (Adjustable)
• - Remote Control Delay: 10ms
• - Electricity: 12.6V/9000mAh
• - Duration Time: 3 Hours for Full-load
• - Dimensions: 364 x 190 x 40mm (L*W*H)
• - Net Weight: about 1900g
• - Receiver: R20 Receiver; V20 Receiver; V30-10km Receiver; V30-30km Receiver (Optional)
• - Computer System: for Windows 10
• - Display Screen: 10.1 Inch + Industrial Touch Screen + 340cd/Visible Screen in Sunlight (Optional)
• - Resolution: 1200 x 1920
• - Processor: Intel Generation5 4200U i5/i7 (Optional)
• - Memory: 4GB/8GB DDR3L (Optional)
• - Storage Capacity: 64GB/128GB (Optional)
• - Network: 4G/WiFi (Optional)
• - External Ports: USB3.0, 4G Slot, LAN Ports, Audio, Amplifier, and HDMI Ports
• - Working Temperature: -10? to 60?

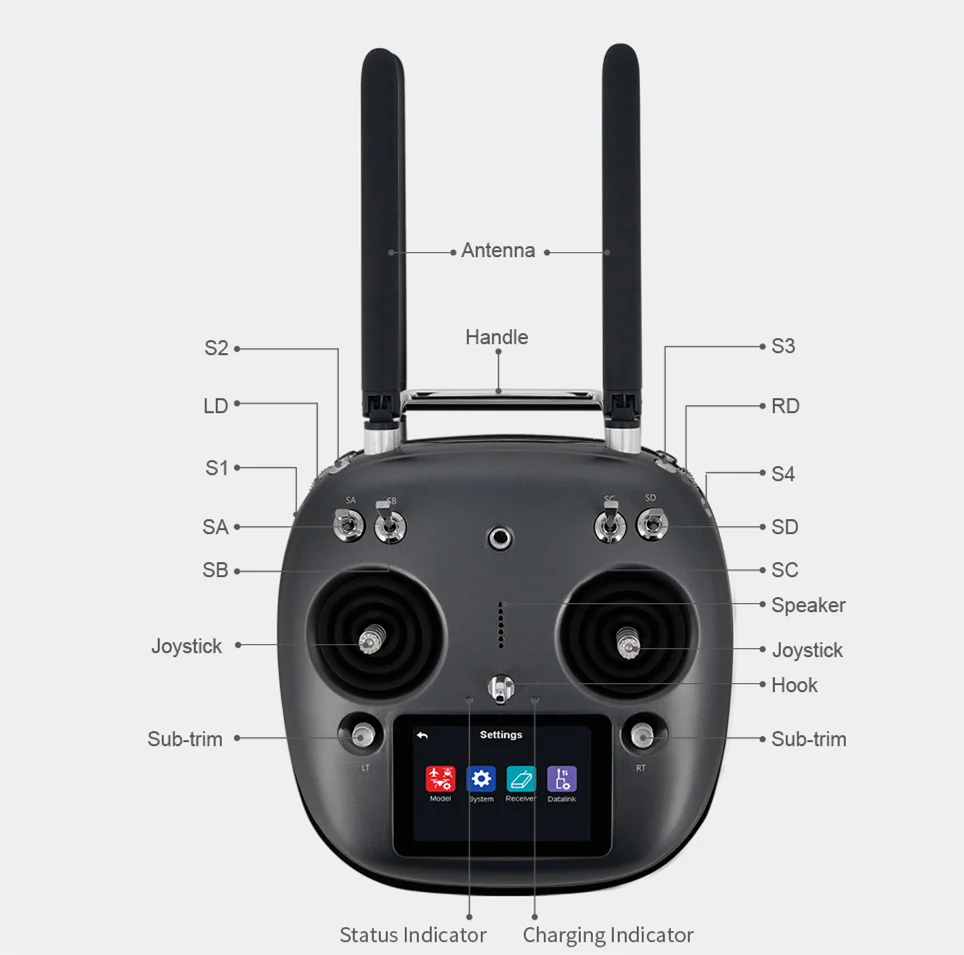

• ?Left and right rockers: corresponding T1, T2, T3 and T4, used for flight control
• ?Four three-stage switches: corresponding SA, SB, SD, SE
• ?Left and right rotary knobs: corresponding LD and RD
• ?Two buttons(or three-stage switches?corresponding S1, S2 (or SC, SF)
• ?Left and right deflector rods: corresponding T5 and T6(can be dialed to the middle)
• ?9 key channels: corresponding F1~F9
• ?Power button and indicator: used for turn on and turn off the device
• ?Power, signal strength, transmitting and receiving indicator: used for indicating power, working status
• ?RF antenna interfaces*2: used for connecting RF antennas
• ?Audio input and output interface: connecting headset audio output or microphone audio input
• ?LAN port
• ?USB interface*2*USB 3.0
• ?Multimedia interface: HDMI HD video and audio transmitting interface
• ?Video transmission interface: VGA HD video transmission interface 13
• ?Charging interface: connecting 12.6V DC adapter
• ?Battery connection interface: used for connecting battery

Optional R20 Data Receiver:

• - Working Frequency: 820-845MHz/902-928MHz
• - RC Distance: 5-30km (Depends on the environment)
• - Serial Ports: 1-CH TTL
• - S-BUS Output: 2-CH S-BUS
• - Power Supply: 7.4-12V
• - Working Current: 300mA (12V Power Supply)
• - Power: 0.1-1W
• - Working Temperature: -10? to 50?

Optional V20 Image Data Receiver:

• - Working Frequency: 2.3-2.58GHz
• - RC Distance: 3-7km (Depends on the environment)
• - Serial Ports: 2-CH TTL
• - S-BUS Output: 2-CH S-BUS
• - Delay: ?10ms
• - Power Supply: 7.4-12V
• - Working Bandwidth: 4-8MHz
• - Image Resolution: 1080P@F30
• - Video Input: LAN Port

Optional V30-10km Image Data Receiver:

• - Working Frequency: 800MHz/1.4GHz/2.4GHz
• - Bandwidth: 10MHz/20Mhz (adjustable)
• Video input interface: HDMI/CVBS (choose one of 2)
• CODEC mode: H.265/H.264 (adjustable)
• Video date rate: 2~12Mbps configurable (adjustable)
• Modulation mode: OFDM
• Output power: Max 25 dBm
• Date output interface: UART*1/SBUS*2
• Video definition: 1080p60 (downward compatibility)
• HDMI interface type: Type A
• Antenna interface: SMA
• Power input: 9~12V (3S power supply recommended)
• Transmission range: 10-20km

The G10W adopts a Windows I5/I7 processor, equipped with the Windows 10 system, built-in 1W high-power image transmission, and can be equipped with data links at different distances.

Product Features

Available colors:Gun Grey / Silvery / Black

1. The G10W adopts a Windows I5/I7 processor, equipped with the Windows 10 system, built-in 1W high-power image transmission, and can be equipped with data links at different distances.

2. Supports rich interfaces such as dual SBUS, LAN, USB, HDMI, aviation plug, SMA-KF, etc.

3. Using aviation aluminum alloy material and reasonable structural design, ensuring small volume, light weight, and good hand feel. The G10W adopts a 10.1-inch anti glare 10 point capacitive touch screen and a 1000CD/m2 sunlight visible screen (customizable). The image transmission frequency supports 800M, 1.4G, and 2.4G, with a maximum image transmission distance of 22KM and 1080P video transmission.

4. Adopting high-energy density lithium-ion batteries, it can work for up to 6 hours at full charge and supports PD/QC protocol charging. When the outdoor power is insufficient, the power bank can be used for power supply. Can work at -20 to 60 degrees Celsius.

5. G10W supports dual serial port data transmission and dual SBUS output, with up to 22 physical channels, making it easy to control the aircraft while also controlling the pan tilt and other devices. G10W supports custom network segments, making it better compatible with various video devices such as cameras, pan tilt, and pods. The handheld end supports HDMI video output, making it easy to expand the large screen display. It also supports WiFi hotspot sharing of flight videos and data, making it convenient for other devices to view them simultaneously, Flight control data connection supports three types of connection: USB, UDP/TCP, and serial port, making it more compatible with various ground station software on the market.

6. Protective measures such as dust-proof and splash proof shall be taken at all external device interfaces to ensure stable and smooth operation of the equipment in harsh environments.

G25 Dual Screen Ground Station Product Features

Available colors:Military Green / Silvery / Black

1. The entire machine is made of aluminum alloy, using silicone anti slip technology and equipped with 8 anti-collision corners for higher protection

2. Dust and splash prevention measures are taken at all external device interfaces to ensure equipment safety.

3. Dual 15.6-inch 1000nit touch screen outdoor visual large screen

4. Touch pad with left and right buttons+86 key standard keyboard

5. Configure 18 physical channels, support dual serial port data transmission and dual SBUS output

6. It can support custom network segments, better compatibility with various cameras, gimbals, pods and other video devices, support HDMI video output, facilitate the expansion of large screen display

7. Support working in low and high temperature environments to reduce equipment damage in extreme weather conditions

8. Coulomb meter precise battery management, low battery reminder and automatic low battery shutdown

9. Flight control data connection supports USB connection, LAN connection, serial port connection, etc.

10. It can support up to RTX3060 independent display

The G10A series adopts the Ruixin Micro RK3399 six core processor, equipped with the Android 8.1 system, with built-in 1W high-power 22 kilometer long-distance image data transmission, advanced wireless channel coding technology and channel control technology, making images clearer, with lower latency, longer distance, and stronger anti-interference.

Product Features

Available colors:Gun Grey / Silvery / Black

(1) The G10A series adopts the Ruixin Micro RK3399 six core processor, equipped with the Android 8.1 system, with built-in 1W high-power 22 kilometer long-distance image data transmission, advanced wireless channel coding technology and channel control technology, making images clearer, with lower latency, longer distance, and stronger anti-interference.

(2) Supports HDMI output (remote control end), SIM 4G card TF card, USB interface, dual serial port transparent transmission, dual SBUS and other rich interfaces.

(3) Using aviation aluminum alloy material and reasonable structural design, ensuring small volume, light weight, and good hand feel. G10A adopts a 10.1-inch anti glare AG industrial touch screen and a 1000CD/m2 sunlight visible screen. The image transmission frequency supports 800M, 1.4G, and 2.4G, with a maximum image transmission distance of 22KM and 1080P video transmission, with a delay as low as 200ms.

(4) Using high-energy density lithium-ion batteries, it can work for 6 hours at full charge and supports PD/QC protocol charging. When the outdoor power is insufficient, the power bank can be used for power supply.

(5) G10A supports dual serial port data transmission and dual SBUS output, with up to 22 physical channels, making it convenient to control the aircraft while also controlling pan tilt and other devices. G10A can support custom network segments, better compatible with various cameras, pan tilt, pods and other video devices. The handheld end supports HDMI video output, making it easy to expand the large screen display. It also supports WiFi hotspot sharing of flight videos and data, Convenient for other devices to view at the same time, the flight control data connection supports USB connection, UDP/TCP, and serial port connection, which is better compatible with various ground station software on the market.

(6) Protective measures such as dust-proof and splash proof are taken at the interfaces of each peripheral device to ensure stable and smooth operation of the equipment in harsh environments.

The dual-screen UAV ground station intelligent monitoring system is the first human-computer interaction interface controlled by the drone. It is a customized product for the security control of unmanned drones/unmanned ships. It not only displays the flight data of unmanned vehicles in real time, but also has automatic route planning, three-dimensional electronic fence setting, one-stop multi-machine control and log playback. Professional features. In particular, it effectively combines the UAV load data to achieve a new integrated operation experience for UAV flight and load work

Specifications:

Brand Name: Skydroid

Item Name: H16 / H16PRO Transmitter Set

Number of channels: 16 channels

Frequency: 2.400-2.483GHz

Working voltage: 4.2V

Working Current: 100mA

RF Power: 20DB@CE/23DB@FCC

Modulation: New FHSS

Weight: 1034g

Firmware: APP online

Dimension: 272*183*94mm

Duration: 6-20 hours

Battery Capacitor: 20000mA

Charge Port: Type-C

Application: Helicopter,Fixed wing,Quadcopter,car boat

Receiver and Camera:

R16	MIPI
Working voltage: 7.2-72V	Working voltage: 14-72V
Number of channels: 16CH	Working Current: 140mA (Open Light)
RF Power: 20DB@CE/23DB@FCC	Working Current: 14mA (Not Open Light)
Size: 76*59*11 MM	Size: 102.1*42.6*36.5 MM
Weight: 90g	Weight: 55g

Package Included:

1 x H16 / H16 Pro Transmitter (optional)

1 x R16 Receiver

1 x MIPI Camera

1080P Digital Video Transmission + Data Transmission +Telemetry all in one datalink

Specifications

Brand Name: SKYDROID

Model Number: H30

Remote Control Peripherals/Devices: Remote Controller

RC Parts & Accs: Radio Systems

Material: Composite Material

Recommend Age: 14+y

Use: Vehicles & Remote Control Toys

Certification: CE

Display : 10.1 inch industrial touch screen +sunlight video screen

Resolution : 1920*1200

Remote control distance: more than 10KM

Three-screen ruggedized laptop/three-portable emergency command terminal is a standardized three-screen display and control terminal with high reliability, low power consumption, light weight.

The main structure material is made of aluminum alloy, the surface is conductively oxidized, and there are silica gel protective wrap angles around.

Interface standard electrical connector, 1 DC power port, 2 USB3.0 ports, 2 USB2.0 ports, 2 RS232 serial ports, 2 RJ45 network ports, 1 HDMI port, 1 DP, 1 3.5 Inch two-in-one audio port.

The display adopts three 15.6-inch 16:9 TFT LCD displays with a resolution of 1920*1080. The processor can choose Intel I7 desktop CPU, equipped with MXM notebook independent graphics card 1050/1060/1070/1080, and the memory supports 64G. , M.2 high-speed solid-state hard drive capacity is optional, support lithium battery life.

The panel can be integrated with custom joysticks, buttons, etc Preset.

Optional wireless module, support Wifi and Bluetooth, 4G network, built-in 2*3W speaker

Specifications

*System parameters

Processor: lntel I7-6700T processor

Lithium battery: 2.5 hours of battery life at room temperature

Memory: 16GB/DDR4 memory

Disk: 512G SSD

*I/O interface

Network port: 2 100/1000Mbps network ports

USB: 2 USB3.0 ports, 2 USB2.0 ports

VGA/HDMl: 1

Serial port: RS232*2

Power input: DC19V

*LCD screen

Display type: 15.6"FHD TFT LCD*3

Maximum resolution: 1920*1080

Display area: 344.16×193.59 mm

*Environmental parameters

Working temperature: -10~55?

Storage temperature: -20~60°?

*Institutional parameters

Material: Magnesium aluminum alloy

Colour: Black

Weight: 10.7Kg

Overall size: 416mm*316mm*117.8mm (including corner protection)

*Operating system

Windows 7 64 bit

Channel?27 channels
Remote control distance?5km-20km
RF Power?V20: 0.1-1w(adjustable)
V21: 0.1-1w(adjustable)
V30: 0.1-1w(adjustable)
Working frequency?800MHZ/902-920MHZ
1.4Ghz/2.3Ghz/2.4GHZ/2.5GHZ

Auxiliary channel?Main joysticks*2(industrial joysticks with hall sensors)
Sub joysticks*4
Key button*12
Simulate keystrokes*7
Remote control delay?30ms
Battery capacity?16.8V/17000mAh(external battery also supported)
Fly time: 3.5h
Machine weight: 5980g
Display: 13.3inch 1920*1080 1000CCD + 12.1inch 1280*800 1500CCD
Touch Capacitive: 10-finger multi-touch display
Processor: 8565U/10500U
Memory: 8G (free upgraded to 16G)
Storage capacity: 256GB SSD (free upgrade to 512GB)

Operating system: Win 7/Win10/Linux (Optional without charge)
Overall size 354mm(l)*280mm(w)*80mm(h)
Network interface: wifi/bluetooth/4G

For technical support, contact Teamaustars at WhatsApp +61 0433 000 015

The package includes

Complete GCS T40 with Ground end integrated, deauflt serial port: TTL optional RS232

2 X Rod antenna/fiber glass

1 X Air end for up to 50km distance V31PRO

2 x Road antenna, charger

16.8V/6A for T40 GCS, 1 x LAN cable 4pin, 1 x power cable for XT30, 2 x Sbus GH 3pin, 1 x 4Pin TTL signal cable GH, aviation connector/ 1 x 6pin TTL& SBus 1 x 4pin LAN)

Product specifications

*System parameters

Processor: Intel I7-7500U YLI8

Lithium battery:Lithium battery life 4-6 hours

Memory:8GB/DDR4 RAM (Can be upgraded to 16GB/32GB)

Disk:256G solid state drive (Can be upgraded to 512G/1T/2T, we believe 256G standard is big enough for mission planner software) space for upgrade by DIY team (203.9mm x 188.9mm x 31mm)

*LCD screen

Display type: 2*15.6 " FHD TFT LCD

Maximum resolution: 1920* 1080

Display area: 344.16 x 93.59 mm

*I/O interface

Network port: 1

USB: 2*USB port 2.0 2* USB port 3.0

HDMI: 1

WIFI/4G: 2

SIM: 1

SMA: 5 (Default)

Power input: DC19V

*Button

Screen adjustment button: brightness/source adjustment

Custom buttons: 8

Numeric keyboard: 1

Knob: 1

Extra buttons (2 levels): 4 (for 15.6" only)

Two-axis joystick: 3

*Touch screen

Upper screen: optional resistive touch screen

Lower screen: capacitive touch screen

*Environmental parameters

Working temperature: -20°C ~50°C

Storage temperature: -30°C ~60°C

*Institutional parameters

Material: Aluminum alloy material, hard anodized sandblasting treatment

Weight.: 10KG

Panel color: gray

Overall size: 486* 325*85 mm

*Operating System

Windows 7 Windows 8 or Windows 10 Optional

Specifications

*System parameters

Processor: Intel I7-6500u

Lithium battery: 4 hours at room temperature

Memory: Memory DDR48G

Disk: solid state disk 256G

*I/O interface

Network port: 2 Realtek 100/1000Mbps Rj45 ports

USB: 4*USB3.0 port

VGA:1

HDMI: 1

Power input: DC19V

SMA antenna: 5

Serial port: 2*RS232

WIFI/4G: 2

*LCD screen

Display type: 15.6" FHD TFT LCD

Maximum resolution: 1920*1080

Maximum color: 344.16x193.59 mm

Display area: 344.16x193.59 mm

Brightness: 1000nits

*Touch screen

Capacitive touch screen

*Button

Screen adjustment button: brightness/source adjustment

Custom buttons: 8

Numeric keyboard: 1

Twist switch: 4

Knob: 1

Two-axis joystick: 3

*Environmental parameters

Working temperature: 0C-50°C

Storage temperature: -20°C-70*C

Relative humidity: 20%~80%@40°C (non-condensing)

Vibration: 50~500Hz, 1.5G .0.15mm peak-to-peak value

Impact: 10G (11ms)

*Institutional parameters

Front panel level: aluminum alloy material, hard anodized sandblasting treatment

Panel color: gray

Overall size: 486*325*85

*Other

Horn*2

*Operating system

Windows 7 /Linux system

Product specifications

*System parameters

Processor: Intel I7-7500U YLI8 supporting Windows7/Linux system

Lithium battery:Lithium battery life 4-6 hours

Memory:16GB/DDR4 RAM (16GB is the standard, Team Austars believe it is enough, 32GB is optional)

Disk:256G solid state drive ?Team Austars believe the disk is enough for the mission planner software, it can be upgraded to 512G/1T/2T etc, let us know)

*LCD screen

Display type: 2*13.3 " FHD TFT LCD

Maximum resolution: 1920* 1080 with adjustable brightness

Display area: 293.472 x 165.078 mm

*I/O interface

Network port: x 1

SMA: 5 X default

USB: 2 x USB 2.0 2 X USB 3.0

HDMI: 1

SIM: 1

Power input: DC19V

Includes: HDMI* 1, USB*4, SIM*1, WIFI/4G*2, Custom button *8, reserved interfaces for PNP/DIY upgrade RS232*1, USB*1, HDMI*1,LAN*1,SMA*5. Internal space: 136.2 x 168 x 31mm)

Package includes: 1 x GCU (Windows installed), 1 x charger, 1 x Hardcase

*Button

Screen adjustment button: brightness/source adjustment

Custom buttons: 8

Numeric keyboard: 1

Knob: 1

Two-axis joystick: 3

*Touch screen

Upper screen: optional resistive touch screen

Lower screen: capacitive touch screen

*Environmental parameters

Working temperature: -20°C ~50°C

Storage temperature: -30°C ~60°C

*Institutional parameters

Material: Aluminum alloy material, hard anodized sandblasting treatment

Weight.: 7.8KG

Panel color: gray

Overall size: 429* 305*88.6 mm

*Operating System

Windows 7 Windows 8 or Windows 10 Optional

The PELICAN Suitcase monitor av receiver is a rapid deployment video/audio surveillance solution for wireless video feed from our any model of tactical Transmitter.The entire kit with all components comes in a portable carrying case.This convenient package makes it an ideal solution for fast-moving transmission and tactical surveillance scenarios.

The signle channel suitcase receiver built-in with DVR and 17inch LCD monitor,and uses COFDM digital RF transmission high definition 1920*1080 image and low latency ability,enabling superior non-line-of-sight performance in buildings,culverts and urban envrionments.As it's a dual input,COFDM diversity receiver with integrated antennas and rechargeable- Li-battery.Accept of customized with extra functions like OSD,GPS and IP remote control ....

This special designed system is for long range distance for military tactical application with voice intercom function, which also be popular to use in other fields for live broadcast video audio transmission.

Features:

1)Standard COFDM receive,Dual aerial designed for better signal receive

2)Modular design and highly integrated

3)17inch LCD screen,signal video recording and monitor

4)remote image surveillance, dynamic IP to achieve IE browser

5)Support one-way video and stereo audio, remote control PTZ

6)External keyboard to control the front-end operation system

7)H.264 video compression

8)Full hd resolution,very sharp image

9)Internal with 120G SSD memory

10)Can control operation system by using external mouse.

Technical data:

Typical Application:

As its diversity and single video audio signal receiving synchronously which encableing point to -point communication.Widely used in military operation,law-enforcing department,defense,UAV photography and etc wireless video audio signal communication...

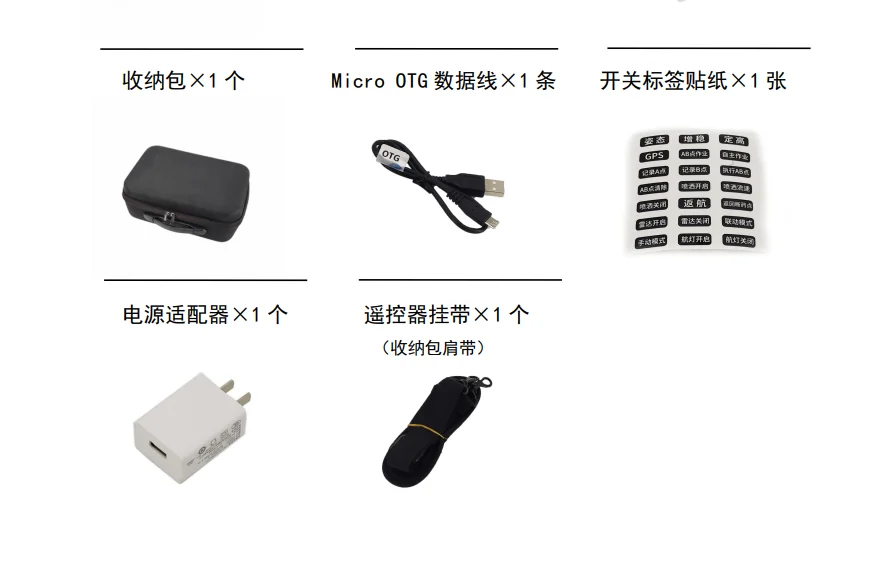

Packing including:

Packing list including below parts:

Drone UAV GCS T16 Handheld Controller

T16 is a compact portable GCS that enables safe and easy operation of the drone and its payload, especially suitable for individual operation.

Supporting Windows and Android systems, T16 can control the aircraft, the payload, display real-time flight status and remote control status, which supports mainstream tablets and mobile phones.

Military grade data link ensures the safety and stability of the flight.

Easy operation and transportation. It has been widely used in unmanned aerial vehicle, ground robots, bomb disposal robots, remotely operated vehicles (ROV) and other robotic devices.

Main and secondary joysticks, programmable dual SBus independent output

10 linear channels meeting various control demand

Multiple joystick options, left and right handed mode, back center mode, industrial hall effect joystick

Universal platform, suitable for the most flight controllers

Remote control, telemetry data, real-time HD video display, suitable for individual operation

Programmable dual SBus independent output, able to control the payload and the drone

800MHz, 1.4GHz, 2.4GHz can be chosen in the software, communication range 10km+

l The physical channel supports USB HID directly connected to the computer, with up to 9 quick buttons available for quick ground station operation.

l Provide SDK and underlying communication protocol to facilitate users' secondary development.

l Long endurance, up to 8h with full battery capacity, meanwhile supporting external battery powering.

SIYI FT24 Helicopter Drone UAV 15KM Long Distance Remote Controller

FT24 is based on SIYI Tech’s industry-level radio frequency technology, accumulated for years. SIY’s R&D teamdevoted th emselves to making cool new features, such as, super long transmission distance, fast and stable response, and highly explorable, in FT24 remote controller specially for model builders and RC fans. With diverse model settings, advanced wireless communicating and interactive functions, FT24 users will have an unprecedented experience of manipulating their model craft and having fun.

item	value
Certification	ce
Gender	Unisex
Age Range	14 Years & up
Type	Helicopter
Power	Battery
Radio Control Style	RC Model
Place of Origin	China
	Guangdong
Model Number	FT24
control distance	about 15KM
support	blue tooth,FPV,LINK
support type	fix wing drone,helicopter,Glider,multiple rotors
card	TF card
language	English/Chinese

Product Description

Product specifications (for extra interface port, contact us to customize by WhatsApp +610433000015)

*System parameters

Processor: Intell7 7500U 2.70GHz processor

Lithium battery: 3 hours at room temperature

Memory: 8G DDR4

Disk: 256G hard disk

*LCD screen

Display type: 10.1" FHD TFT LCD *2

Maximum resolution: 1280* 800

Display area: 216.96 X 135.6 mm

*I/O interface

USB: 2 USB2.0 ports

RJ45: 2

WIFI: 2

COM: 1

DC: 19V

HDMI: 1

Knob: 1

Joysticks: 3 dual-axis joysticks

*Environmental parameters

Working temperature: -10°C ~55°C

Storage temperature: -10°C ~70°C

Relative humidity: 10~95%@40°C (non-condensing)

Vibration: meet the road transport level vibration

*Institutional parameters

Weight: 3.28KG

Machine size: 366* 226*61.04mm (including corner protection)

Colour: Black

Expansion warehouse: optional

*Operating System

Support WIN7/WIN8 system

Product specifications

*System parameters

Processor: I5-6200U, dual-core 2.30 GHz processor

Lithium battery:Battery life at room temperature 2-3 hours

Memory:8GB/DDR3 RAM

Disk:512GB SSD

*LCD screen

Display type: 10.1" WXGATFT LCD

Maximum resolution: 1920* 1080

Display area: 216.96 * 135.6 mm

*Touch screen

Type: Full-plane capacitive touch screen

Resolution: 4096 * 4096

*I/O interface

Network port: 1

HDMI: 1

USB: 4 USB

Power input: DC 19V

SIM: 1

Antenna: 2

Multifunctional aviation plug: 1 (RS232/RS422)

Audio: 1

*Button

Two-axis joystick: 2

Emergency stop switch: 1

Toggle switch: 4

Custom buttons: 8

*Environmental parameters

Working temperature: -10°C ~55°C

Storage temperature: -20°C ~60°C

*Institutional parameters

Material: Aluminum alloy material

Colour: Black

Weight: 2.7Kg

Overall size: 357mm*223.5mm*48mm (including corner protection)

*Operating System

Windows 7 64 bit

Package includes GCS, charger 110-240V, DJI Lightbridge 2 (Air/Ground ends)

GCS size: 415 x 335 x 180mm 8kg

Dual Screen: 20"+9.7" HD IPS 1920 X 1080

8GB/DDR4 256G SSD

Production time: 2-3 Weeks for technical support contact Teamaustars via WhatsApp +610433000015

UAV Ground Control Station GCS0012 is designed for professional film maker and photographer who are using DJI Inspire 2 or M200 Series. this UAV Ground Control Station has 19.5 inch 1920*1080 main High Bright LED Backlight Display that has sunlight readability. 9.7inch tablet with android or ios system. there are so manny advantages of DJI Cendence, it allows user to tune flight controller settings and the gimbal camera in real time, allowing professional photographers to pull focus and set aperture. for the quick camera adjustment, it allows users to customize several shortcut buttons for particular groups of settings, or save frequently sued settings.It has customizable buttons can quickly enable or disable frequently used function like focus peaking, color waveform, obstacle avoidance, and homw point resetting, they can also close warnings and tips mid-flight, all without using DJI APP. User can rotate the dials or toggle the right/left levers while holding certain buttons to control gimbal roll, shutter speed, or ISO.

What does the UAV Ground Control Station can do?

We disassemble DJI Cendence to install in the rugged and water-proof hard plican case, also we install a main display and tablet in the case, most importantly, we design the Power Management Information, ?so users only need to charge the power system in the ground control station, then it will support power for all euqipment in the case for 5-12 hours! with fully charged battery.

Why we need a UAV Ground Control Station instead of a simple Cendence Controller?

we all know for a professional using purpose, the easy for tranportation and easy for settingup a euqipment is very important, due to the verious weather condition in the ourdoor field we need to consider the raining, snowing, and extrmely hot and cold days. the High Bright LED Backlight Display is indutrial level, so it can handle -20-60 C weather condition. and it is sunlight readable.

instead of bringing a controller with case, and large monitor with cables, and big heavy porable power station and tablet another accessories. We make a best solution that is all-in-one with water-proof and easy traveling rugged hard case for you.

UAV Ground Control Station GCS0012 can be embedded with optional DJI Cendence Remote Controllers including:

DJI M210

INSPIRE 2 Aerial Photographer

Compatible with Matriice 200 Series

UAV Ground Station Case
Case Model	Pelican case
Dimensions	Length63cm*Width50cm*Height30cm
Weight	14.5KG
Materials	Makrolon
Level of Protection	IP67 (Closed cover)
Operating Temp	-10°C to 60°C
Colour	black
Portability	Handle
Battery Life	5 Hours
Operation Panel
Materials	Carbon fiber
Connector	USB*2; HDMI*2; SDI*1; DC IN; 12V OUT.
Antenna	Two SMA's at the top of the screen,Two are reserved on the panel.
Human-Interactive	9.7inch tablet; joystick.
Mains Button	Main power; Cendence power.
Other Devices	Cooling system; Power management system; Indicator LED
Controller	Joystick*2; Button*23; Knob*6; Mode switch*1
Extension	4G live streaming equipment can be installed
Remote Link System (Cendence) Optional
Operating Frequency	2.4GHz/5.8Ghz
Maximum Transmission Distance	2.4GHz:7km(FCC); 3.5km(CE) 5.8GHz:7km(FCC); 2km(CE)
Video Output Port	HDMI,SDI,USB
Support DJI Aircraft	Inspire 2 and Matrice 200 series

Tablet (optional Ipad)
Model	ASUS ZenPads 3S 10
Screen Size	9.7inch
Processor	MTK 8176 6 core
Operating System	Android 6.0
Memory	4GB
Storage	64 GB
Materials	Aluminum
Main Display
Display Size[inch]	19.5
Resolution [H*R]	1920*1080
Backlight	LED
Luminance [cd/m2]	1000
Video Interface	HDMI
Lux Auto Brightness[YES/NO]	YES
Panel Type	TN
Battery &Power Management
Power Management Information	Voltage, Current, Battery percentage, power.
Battery Protection	Overcurrent protection, Overvoltage protection, Temperature protection.
Battery Type	panasonic 18650 li-ion battery
Battery Voltage	16.8v
Battery Capacity	20100mah (pre installed)
Battery Life	>5 Hours (5-12 hours optional)

Ground devices consist of:

PC of the ground station mainly details is i5 CPU, 4G/128G SSD, support extend SATA hard disk, can also save the drone data and flight diary.

Production time: 2-3 Weeks for technical support contact Teamaustars via WhatsApp +610433000015

Introduction of IP MESH system

IP MESH adopts Safe Guard's (SFGT) keep technology of COFDM modulation as its core, allows a group of mesh nodes form a seamless and highly safe private network in NLOS and moving conditions. The COFDM IP MESH network can be in chain network, star network, or random networks. The chain network is ideal for range extension to reach a maximum range. The star network is great for application in urban environment mission coverage. The random network allows mesh nodes to organize themselves in any shape.

Unlike other wireless solutions, the IP MESH has self-managing ability. The COFDM IP MESH keeps adjusting itself when node working in moving condition, to select the best route for range extension and signal communication between each mesh node. What’s more, the IP MESH is also self-healing, when one of the node stops working, the rest of the nodes can communicate with each other directly or through one or more intermediate nodes.

Introduction of SG-MESH-4

SG-MESH-4 is the wireless IP MESH command center station, which is designed for outdoor application like in urban coverage, drones video surveillance, solider tactical mission deploy, etc.. The SG-MESH-4 COFDM IP MESH is integrated with tablet computer for wireless mesh network system operation and video monitoring, and MESH network topology. Also, PPT(Push-to-Talk) for voice communication is available, that is convenient to chat with others who carrying the IP MESH node. There are also built with a battery V lock for standard Sony Lithium battery mounting or other same type Lithium battery. Besides the external battery, there are also have an power charger input for battery charging after its running out of the power. WIFI and GPS function are workable, which is easy for user to identify each front end matchable IP MESH node's location.
SG-MESH-4 is ruggedizedly designed in Pelican Suitcase, which is shockproof, waterproof, and dustproof.

Features of SG-MESH-4

1. Self-developed COFDM waveform, efficient channel coding, and multi-hop ad hoc networking protocols.

2. Strong anti-interference ability

3. Forming a centerless wireless broadband network efficiently and quickly.

4. Integrated with tablet PC, battery V lock, GPS, WIFI, 4G.

5. Provide IP interface, which can realize interconnection with other IP devices.

7. Built-in Wi-Fi/GPS/Beidou/4G (Mobile/Unicom) module can be customized.

8. Customized development can be provided according to customer requirements.

Specifications

UAV GCS006 Ground station is a compact and convenient solution for industrial drones. It features a professional layout and functions. The GCS006 ground station can realize the functions data transmission and video(optional) transmission etc. And all theses functions can be controlled separately.

The ground station is equipped with a 15.6 inch bright daylight monitor (can be upgraded to 21.5"), which is used for checking onboard video. You also can set the contrast, brightness and other functions by the buttons on the ground station.

Except the 15.6 inch monitor, the GCS006 ground station is also equipped with a 10 inch touching screen. The touching screen features fast response due to the built-in computer the processor of which is i5. You can arrange waypoints, flying routes through the touching screen.

The ground station is built in a 20000mah Lithium battery for 3 hours operation time. You also could link a charger from your car, so that you can use the ground station without any time limit.

Specifications:

Dimensions: 460x350x180mm
Operating temperature: -20°C to +60°C
Case features: Rugged plastic case, carry handle,pressure purge valve
Battery type: Lipo Battery
Battery capacity:3s 20000mAh
Battery operation time: 3 hours
DC power output: 12V
Display: 15.6 inch monitor,10 inch touching screen.

Computer system:

• I5 Processor
• 8G Memory Card
• 128G Hard disk
• Windows 7 System

The system/package does not include any DJI drones. Production for the system integration needs 2 weeks time.

UAV GCS001 Ground station is a compact and convenient solution for industrial drones. It features a professional layout and functions. The GCS001 ground station can realize the functions like radio control, data transmission and video(optional) transmission etc. And all theses functions can be controlled separately.

The ground station is equipped with a 15.6 inch bright daylight monitor, which is used for checking onboard video. You also can set the contrast, brightness and other functions by the buttons on the ground station.

Except the 15.6 inch monitor, the GCS001 ground station is also equipped with a 10 inch touching screen. The touching screen features fast response due to the built-in computer the processor of which is i5. You can arrange waypoints, flying routes through the touching screen.

The ground station also can be used to control MOST Indutrial drones ono the market, there is a three stage switch to control the stop, idle and work mode of generator. And there is also a joy stick, through which you can control the gimbal on your drone.

The ground station is built in a 20000mah Lithium battery for 3 hours operation time. You also could link a charger from your car, so that you can use the ground station without any time limit.

Specifications:

Dimensions: 460x350x180mm
Operating temperature: -20°C to +60°C
Case features: Rugged plastic case, carry handle,pressure purge valve
Battery type: Lipo Battery
Battery capacity:3s 20000mAh
Battery operation time: 3 hours
DC power output: 12V
Display: 15.6 inch monitor,10 inch touching screen.
Built-in 16-channel radio control RX, standard 8km data transmission range (Optional)

Computer system:

• Standard I3 Processor
• 4G Memory Card
• 64G Hard disk
• Windows 7 System
• • The system/package does not include any DJI drones. Production for the system integration needs 2 weeks time.



Your Purchase Includes:

Complete GCS001 with professional hardcase & charger

UAV GCS001 Ground station is a compact and convenient solution for industrial drones. It features a professional layout and functions. The GCS001 ground station can realize the functions like radio control, data transmission and video(optional) transmission etc. And all theses functions can be controlled separately.

The ground station is equipped with a 15.6 inch bright daylight monitor, which is used for checking onboard video. You also can set the contrast, brightness and other functions by the buttons on the ground station.

Except the 15.6 inch monitor, the GCS001 ground station is also equipped with a 10 inch touching screen. The touching screen features fast response due to the built-in computer the processor of which is i5. You can arrange waypoints, flying routes through the touching screen.

The ground station also can be used to control MOST Indutrial drones ono the market, there is a three stage switch to control the stop, idle and work mode of generator. And there is also a joy stick, through which you can control the gimbal on your drone.

The ground station is built in a 20000mah Lithium battery for 3 hours operation time. You also could link a charger from your car, so that you can use the ground station without any time limit.

Specifications:

Dimensions: 460x350x180mm
Operating temperature: -20°C to +60°C
Case features: Rugged plastic case, carry handle,pressure purge valve
Battery type: Lipo Battery
Battery capacity:3s 20000mAh
Battery operation time: 3 hours
DC power output: 12V
Display: 15.6 inch monitor,10 inch touching screen.

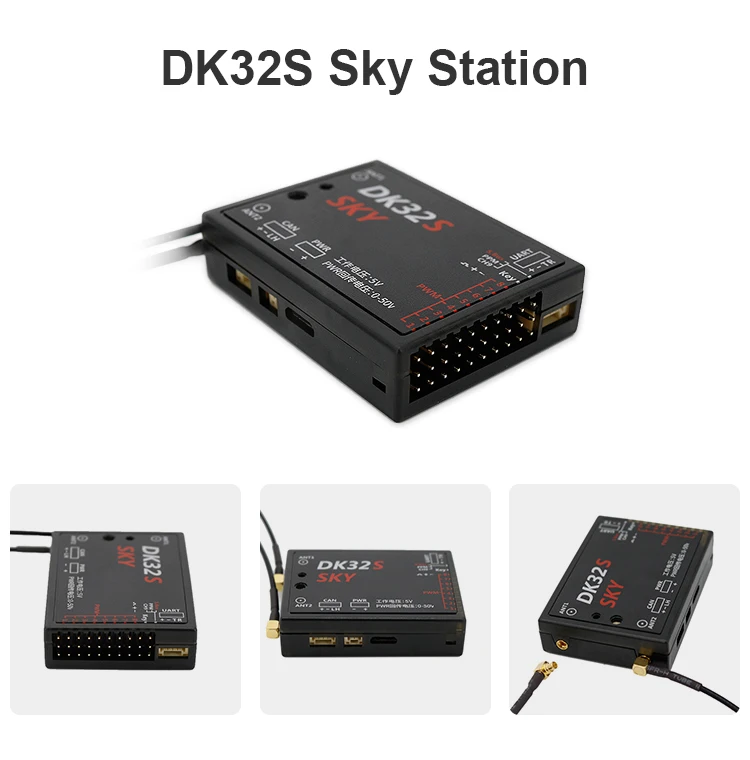

Built-in Frsky09/WFLY9/DK32S (20km Radio distance) Optional

Computer system:

• I5 Processor
• 8G Memory Card
• 128G Hard disk
• Windows 7 System
• • The system/package does not include any DJI drones. Production for the system integration needs 2 weeks time.



Your Purchase Includes:

Complete GCS001 with professional hardcase & charger

SIYI DK32/DK32S Radio System Transmitter Remote Controller with Telemetry Receiver

Pelican case features:

1. Watertight, crushproof, and dust proof
2. Easy open Double Throw latches
3. Open cell core with solid wall design - strong, light weight
4. Automatic Pressure Equalization Valve
5. Comfortable rubber over-molded handle
6. Stainless steel hardware and padlock protectors
7. 2 level Pick N Pluck(tm) with convoluted lid foam
8. Personalized nameplate service available

Specifications:

Brand Name: Skydroid

Item Name: H16PRO Transmitter Set

Number of channels: 16 channels

Frequency: 2.400-2.483GHz

Working voltage: 4.2V

Working Current: 100mA

RF Power: 20DB@CE/23DB@FCC

Modulation: New FHSS

Weight: 1034g

Firmware: APP online

Dimension: 272*183*94mm

Duration: 6-20 hours

Battery Capacitor: 20000mA

Charge Port: Type-C

Application: Helicopter,Fixed wing,Quadcopter,car boat

Receiver and Camera:

R16	MIPI
Working voltage: 7.2-72V	Working voltage: 14-72V
Number of channels: 16CH	Working Current: 140mA (Open Light)
RF Power: 20DB@CE/23DB@FCC	Working Current: 14mA (Not Open Light)
Size: 76*59*11 MM	Size: 102.1*42.6*36.5 MM
Weight: 90g	Weight: 55g

Package Included:

1 x H16 Pro Transmitter

1 x R16 Receiver

1 x MIPI Camera

1080P Digital Video Transmission + Data Transmission +Telemetry all in one datalink

Specifications:

Brand Name: Skydroid

Item Name: H16 / H16PRO Transmitter Set

Number of channels: 16 channels

Frequency: 2.400-2.483GHz

Working voltage: 4.2V

Working Current: 100mA

RF Power: 20DB@CE/23DB@FCC

Modulation: New FHSS

Weight: 1034g

Firmware: APP online

Dimension: 272*183*94mm

Duration: 6-20 hours

Battery Capacitor: 20000mA

Charge Port: Type-C

Application: Helicopter,Fixed wing,Quadcopter,car boat

Receiver and Camera:

R16	MIPI
Working voltage: 7.2-72V	Working voltage: 14-72V
Number of channels: 16CH	Working Current: 140mA (Open Light)
RF Power: 20DB@CE/23DB@FCC	Working Current: 14mA (Not Open Light)
Size: 76*59*11 MM	Size: 102.1*42.6*36.5 MM
Weight: 90g	Weight: 55g

Package Included:

1 x H16 / H16 Pro Transmitter (optional)

1 x R16 Receiver

1 x MIPI Camera

1080P Digital Video Transmission + Data Transmission +Telemetry all in one datalink

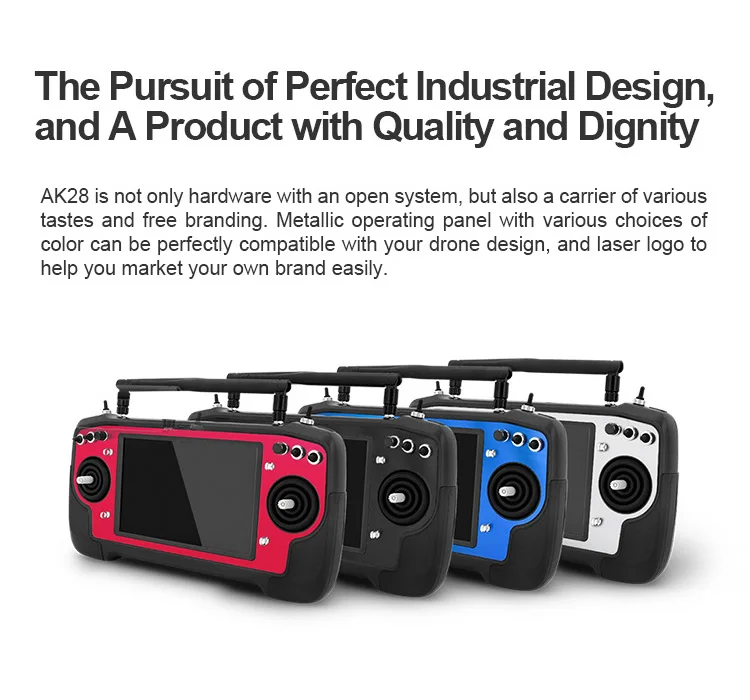

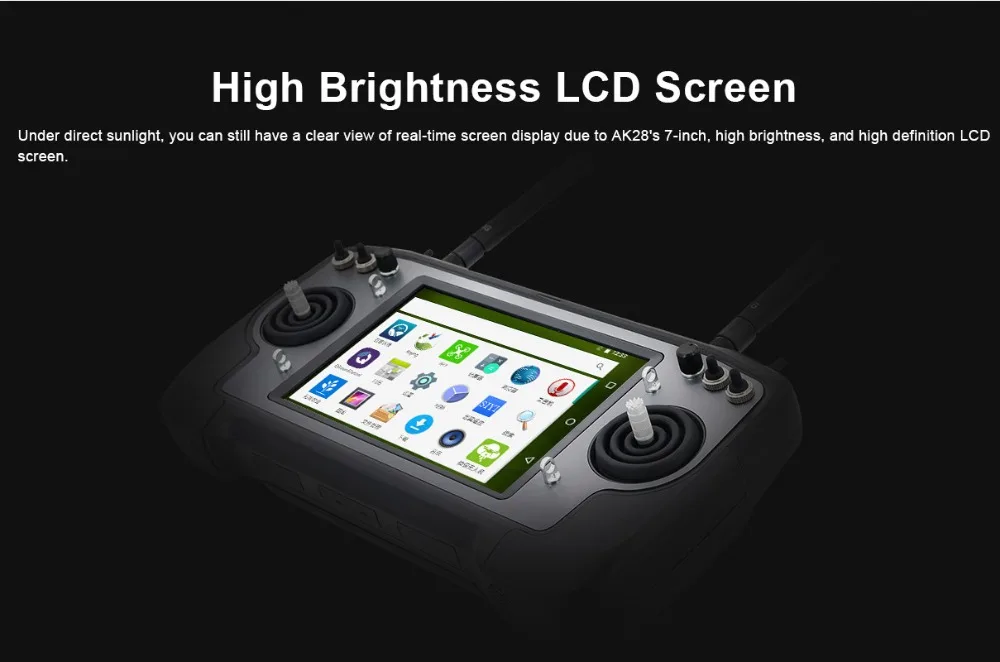

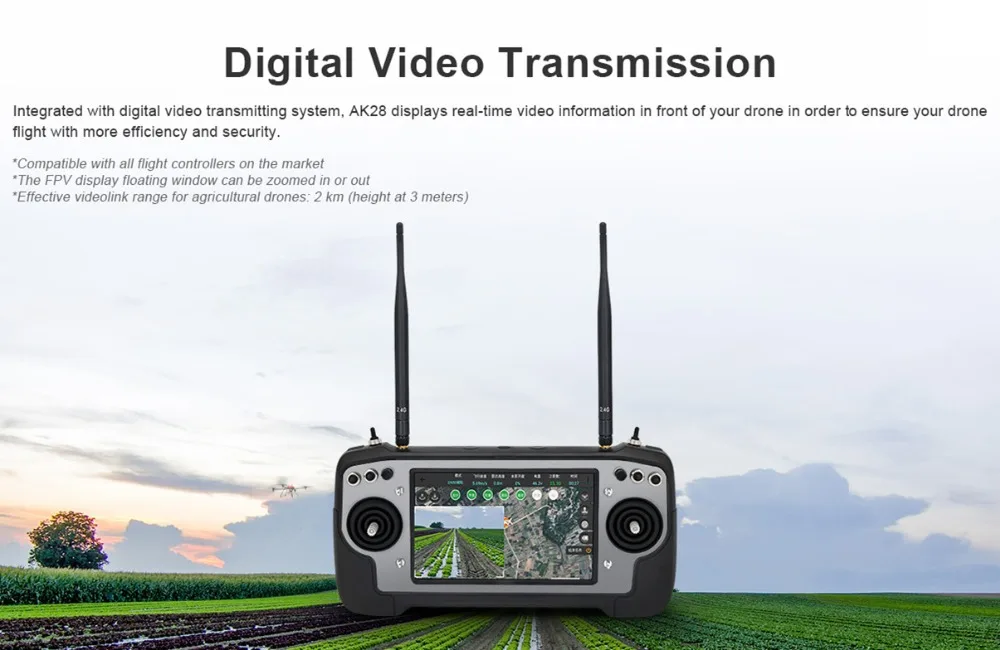

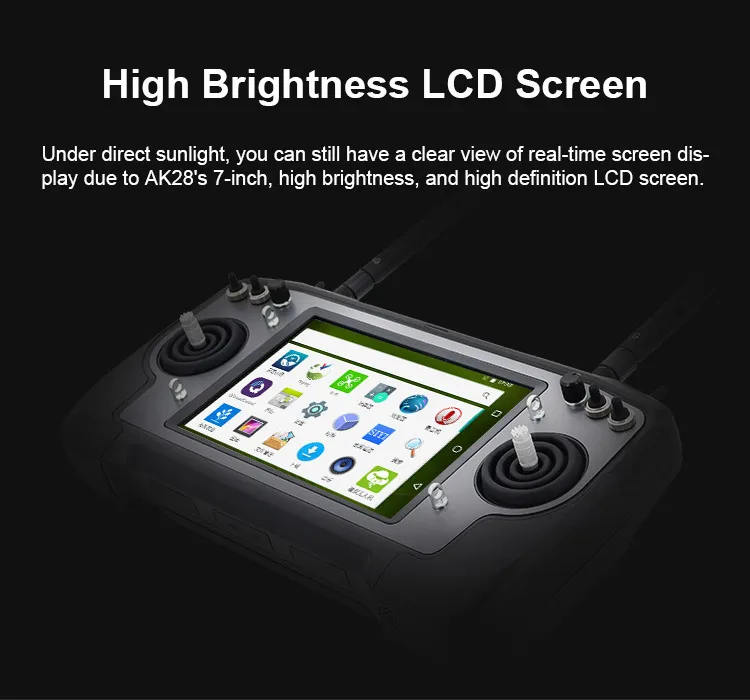

SIYI AK28 Android Smart Controller Video Transmitter with 7-Inch Screen FPV Camera

SIYI MK15 UAV Mini HD handheld ground station 15KM range Android smart controller with dual 1080P FPV FCC version

Plant protection:

1.MK15AG

2.MK15DF

Industry:

1.MK15

2.MK15EF

3.MK15HM

4.MK15DR

SIYI VD32 Video Transmitter Remote Controller for Agriculture Spraying Drone 16CH 2.4G 2KM Range

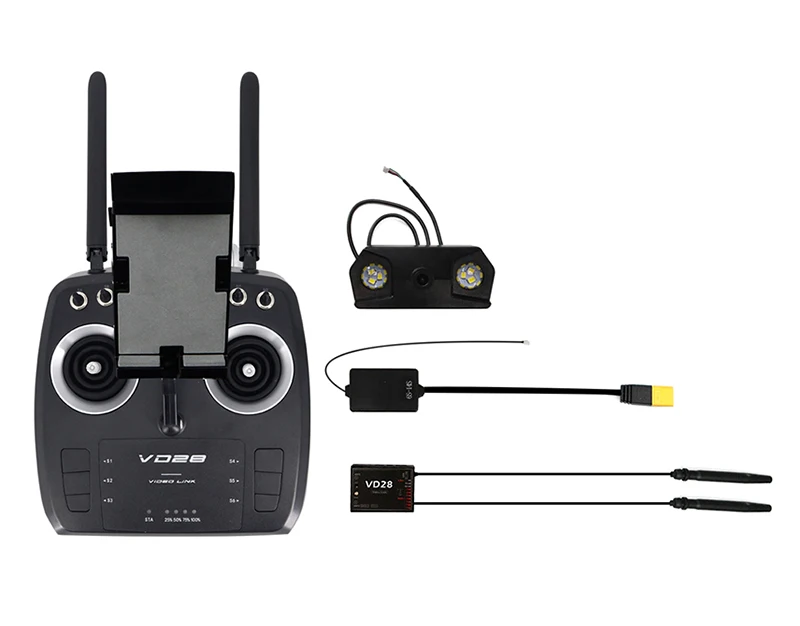

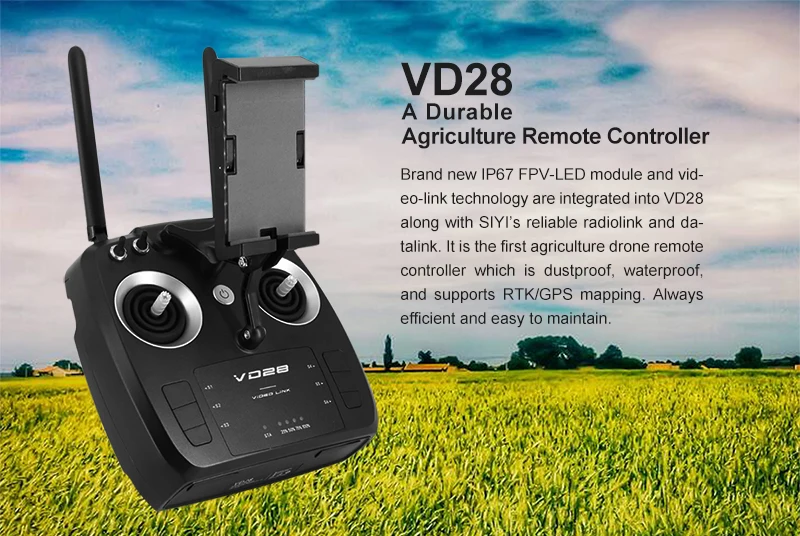

SIYI VD28 Radio System Transmitter Remote Controller with IP67 Waterproof FPV Camera

Drone UAV GCS T18 Handheld Controller

T18 handheld all-in-one control adopts an integrated body and moulding.

Grip position for the rubber material, antislip and resisitant to knocking, with an excellent hand feel.

All the functions in one unit: remote control, payload control, real-time video display, route planning, etc.

T20 GCS is our next generation All-in-one portable ground station. Its a water, sun & shock resistant handheld ground station that integrates an industrial-grade computer with dual system (Windows or Android) and an integrated link remote control system.

The transmitter can be used to control the aircraft or a gimbal with real-time flight and remote status feedback, route planning, and other functions.

The dual-system platform supports most of the ground station software on the market. The industrial grade computer and military grade transmission links not only ensure the safety and stability of the aircraft,but also are simple to operate and easy to carry.

Instead of the traditional ground station system, the T20 aims to create a professional unmanned aerial vehicle remote control system that integrates the stability of the digital radio station with the simplicity and portability of the remote control, complemented by industrial computer systems. The T20 can provide 30KM of control and data transmission. The convenient development of the industrial tablet can provide more functions for users, providing convenience and ease of use for outdoor work and testing.

T20 Specifications:

– Channel: 14-CH

– Communications Frequency: 840MHz/900MHz

– Effective Distance: 5-30km for R20 Receiver

– RF Power: 1W (Adjustable)

– Remote Control Delay: 10ms

– Duration Time: 3 Hours for Full-load

– Dimensions: 300 x 160 x 40mm (L*W*H)

– Net Weight: about 1000g

– Computer System: for Windows 10 and Android 5.1

– Display Screen: 8 Inch Industrial Touch Screen + 320ccd/Visible Screen in Sunlight

– Resolution: 1280 x 720 – Processor: Intel Cherry Trail Z8350 – Memory: 2GB/4GB DDR3

– Storage Capacity: 32GB/64GB

– External Ports: USB3.0, 3G Slot, TF card

– Working Temperature: -10? to 60?

R20 Data Receiver:

– Working Frequency: 820-845MHz

– RC Distance: 5-30km (Depends on the environment)

– Serial Ports: 1-CH TTL

– S-BUS Output: 1-CH S-BUS

– Power Supply: 7.4-12V

– Working Current: 300mA (12V Power Supply)

– Power: 0.1-1W

– Antenna: 2dB

– Serial port baud rate: 115200 (Adjustable)

-Size: 53*40*14MM -Weight: 43g

– Working Temperature: -10? to 50?

Packing list:

Drone UAV GCS T26 Handheld Controller

T26 is military-grade portable command and control platform in high integration of Panasonic FZ-M1 and video&data&RC link. It provides the function such as mission planning, attitude control, payload control, remote monitoring, real-time video display, etc.

To ensure high-performance and convenient operation, features of T26 includes sunlight-readable, multi-touch display, lightweight, 16 channels, window 10 operating system and strong hardware enabling the scalability.

The rugged, water and dust-proof design, is especially suitable for the operation in the harsh environment.

Performance Upgrade

Integrated Panasonic computer FZ-M1.

Drone UAV GCS T21 Handheld Controller

The T21 hand-held ground control station is a portable industrial grade ground computer station with independent programmed dual SBUS design.

T21 provides function such as mission planning, attitude control, payload control, navigation & positioning, remote monitoring, real-time video display, etc.
